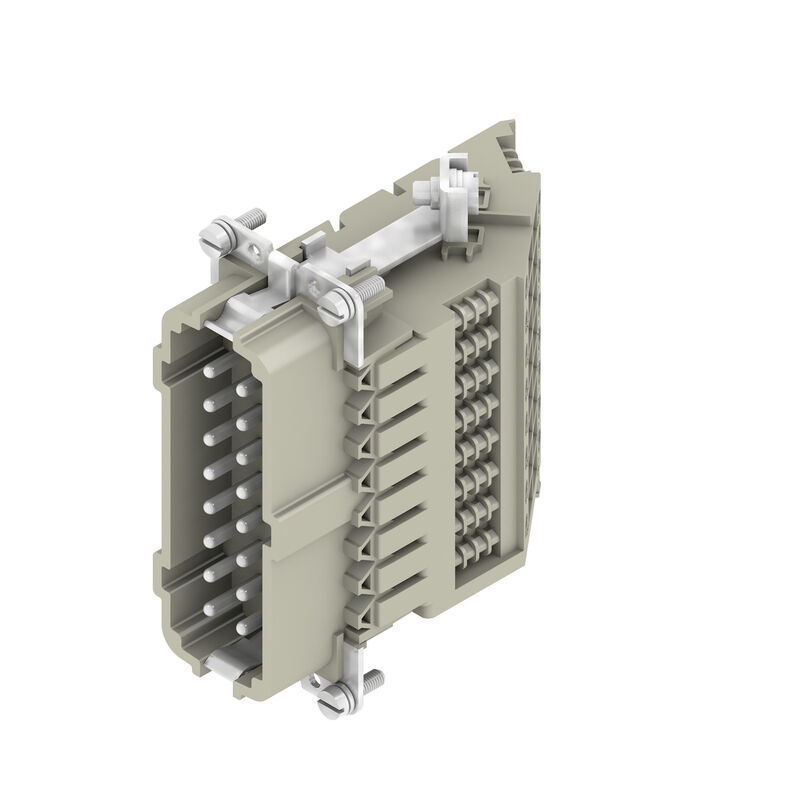

HDC insert, Pin, 500 V, 16 A, Number of poles: 16, Screw connection, Installation size: 6

Art.-Nr. 1848700000
Datenblatt herunterladen Engineeringondersteuning Productdownloads
Toebehoren 2 Verwante producten 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance General data Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202

General ordering data

Version
HDC insert, Pin, 500 V, 16 A, Number of poles: 16, Screw connection, Installation size: 6
Order No.
1848700000
Type
DSTV HE SL16 S
GTIN (EAN)
4032248371976
Qty.
10 items

Dimensions and weights

Net weight
162,624 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
d0694b55-f1aa-4d24-a200-c532c6ffc384

General data

Screw connection
Basic material
Copper alloy
BG
6
Colour
beige
Installation size
6
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,5 Nm
Number of poles
16
Plugging cycles, silver
≥ 200
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
DSTV-HE
Surface finish
Silver passivated
Tightening torque
0,5 Nm
Tightening torque, max. PE connection
1,6 Nm
Tightening torque, min. PE connection
1,2 Nm
Type
Pin
UL 94 flammability rating
V-0
Volume resistance
≤3 mΩ

Connection data PE

Connection type PE
Screw connection
Dimens. caña destornillador pala plana (conexión PE)
SD 0.8 x 4.0
Ledardiameter, AWG (PE), min.
AWG 20
moment dokręcający min. złącze PE
1,2 Nm
Märkarea
4 mm²
Stripping length PE connection
10 mm
Taille de la lame pour vis à tête cruciforme
size PZ1
Wire cross section, AWG (PE), max.
AWG 12
Крепежный винт
M 4
조임 토크, 최대 PE 결선
1,6 Nm

Version

Screw connection
Basic material
Copper alloy
BG
6
Blade size, slotted (screw connection)
SD 0.6 x 3.5
Clamping screw
M 3
Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
6
Klingenmaß
size PZ0
Leiteranschlussquerschnitt AWG, min.
AWG 20
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,5 Nm
Stripping length, rated connection
12 mm
Surface finish
Silver passivated
Volume resistance
≤3 mΩ
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire cross-section, solid, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC002311
ETIM 9.0
EC002311
ETIM 10.0
EC002311
ECLASS 14.0
27-44-02-03
ECLASS 15.0
27-44-02-03
