H2,5/21D ZH BL
H2,5/21D ZH BL
Drawing

H2,5/21D ZH BL

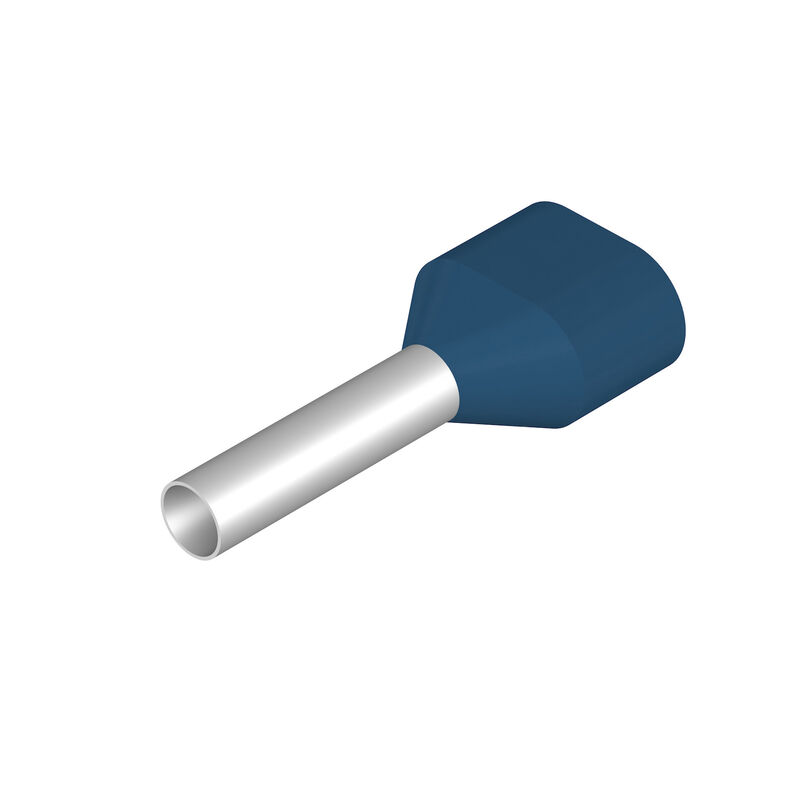

Wire-end ferrule, Twin wire-end ferrule, 15 mm, 12 mm, blue

Product ID 9037510000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 10 Verwante producten 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Wire-end ferrules Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319221/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319229/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E499744

General ordering data

Version
Wire-end ferrule, Twin wire-end ferrule, 15 mm, 12 mm, blue
Order No.
9037510000
Type
H2,5/21D ZH BL
GTIN (EAN)
4008190493080
Qty.
100 items
Packaging
loose

Dimensions and weights

Net weight
0,32 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Twin wire end ferrule, blue
Version
Twin wire-end ferrule

Wire-end ferrules

Avisoleringslängd
15 mm
Collar width (B)
4,5 mm
Colour code
DIN
Conductor cross-section
2,5 mm²
Gallér magassága (A)
8 mm
Grubość tulejki metalowej (S1)
0,15 mm
Kontaktflächendurchmesser (D1)
2,8 mm
L1(mm)
21 mm
Longitud de superficie de contacto (L2)
12 mm
przekrój przyłączeniowy przewodu AWG, maks.
AWG 14
Spessore del collare isolante (S2)
0,4 mm

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
