HDC 32B DODQ 4BO
HDC 32B DODQ 4BO

HDC 32B DODQ 4BO

HDC enclosures, Installation size: 10, Protection degree: IP65, in plugged condition, Cover for lower part of housing, Side-locking clamp on lower side, Standard

Product ID 1165790000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 11 Verwante producten 1
Approvals Všeobecné objednací údaje Dimensions and weights Temperatures Shoda produktu s prostředím Dimensions General data Version Besorolások

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Zgodny

Všeobecné objednací údaje

Version
HDC enclosures, Installation size: 10, Protection degree: IP65, in plugged condition, Cover for lower part of housing, Side-locking clamp on lower side, Standard
Order No.
1165790000
Type
HDC 32B DODQ 4BO
GTIN (EAN)
4032248964512
Qty.
1 items

Dimensions and weights

Depth
94 mm
Tiefe (inch)
3,701 inch
Height
17 mm
Height (inches)
0,669 inch
Width
98,3 mm
Width (inches)
3,87 inch
Net weight
117 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Shoda produktu s prostředím

RoHS Compliance Status
V souladu bez výjimky
REACH SVHC
Bez SVHC powyżej 0,1 wt%
Chemical resistance
  • Innehåll:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

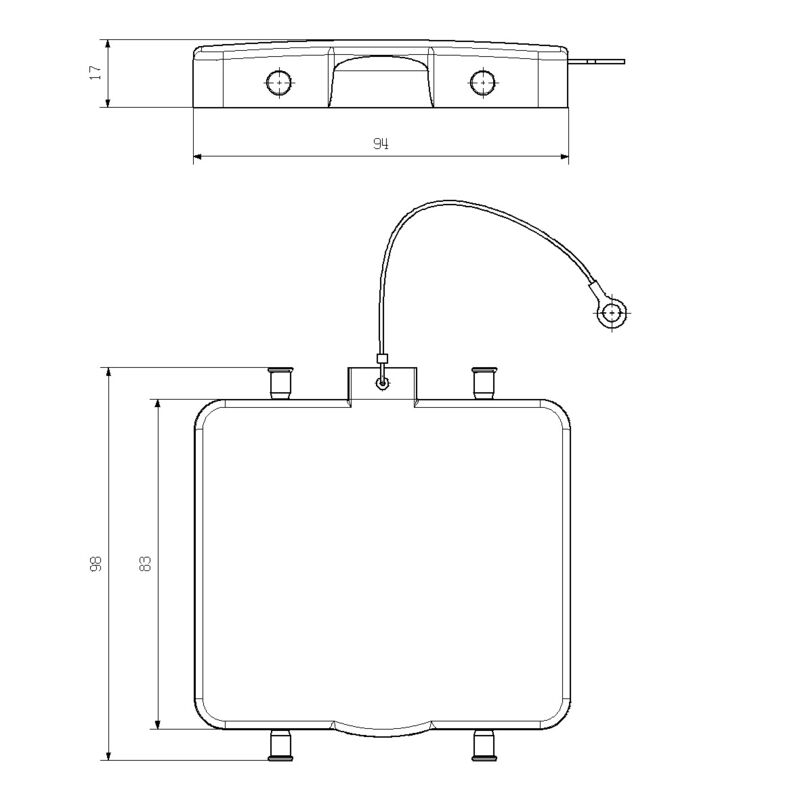

Dimensions

Cable entry
For bases
Height of housing B
17 mm
Total length housing
94 mm
Width housing C
82,5 mm

General data

EMC housings
No
Housing main material
diecast aluminium
Material of locking element
Stainless steel, rust-proof
Protection degree
IP65
in plugged condition
Surface finish
Powder coating
Tightening torque
2 Nm

Version

BG
10
Cable entry
For bases
Clamp version
Side-locking clamp
Colour (RAL)
RAL 7035
Cover
with cover
Design
Standard
Design of housing
Cover for lower part of housing
Design of locking system
Side-locking clamp on lower side
Installation size
10
Number of cable entry sideways
0
Number of cable glands
0
Sealing
NBR
Suitable for ModuPlug®
Yes
Tightening torque
2 Nm
Top part/bottom part/lid
Cover
Type
Cover

Besorolások

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
