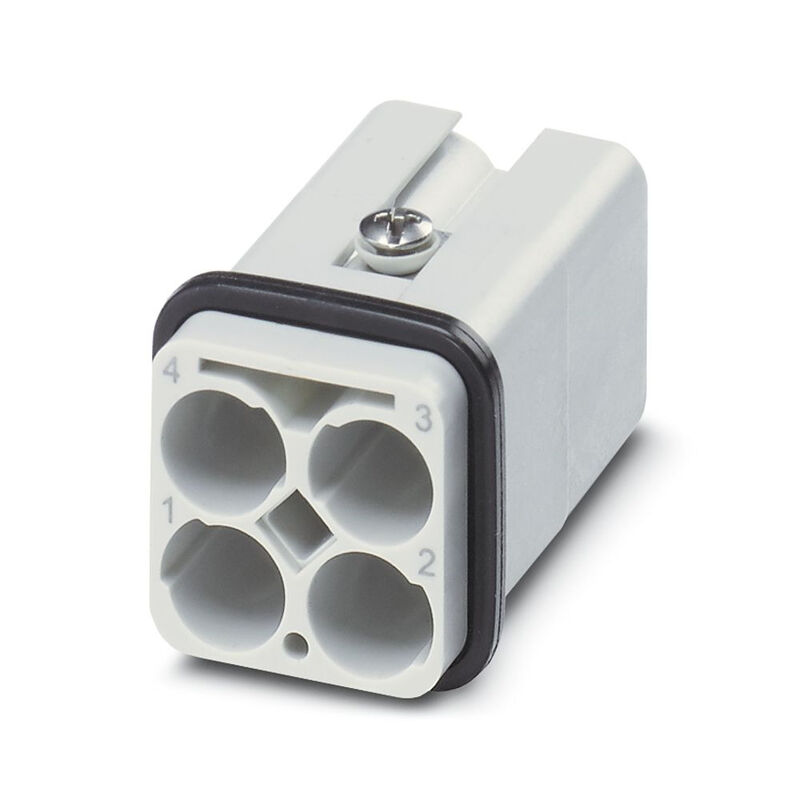

HDC insert, Male, 830 V, 40 A, Number of poles: 4, Crimp contact, Installation size: 1

Produkt ID 3103540000
Download datablad Engineering Support Product Downloads
Tilbehør 13 Er tilbehør til 11 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dimensions General data Power contact Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202
Certificate No. (cURus)
E310075

General ordering data

Version
HDC insert, Male, 830 V, 40 A, Number of poles: 4, Crimp contact, Installation size: 1
Order No.
3103540000
Type
HDC HQ 4 MC
GTIN (EAN)
4099987151283
Qty.
1 Styk

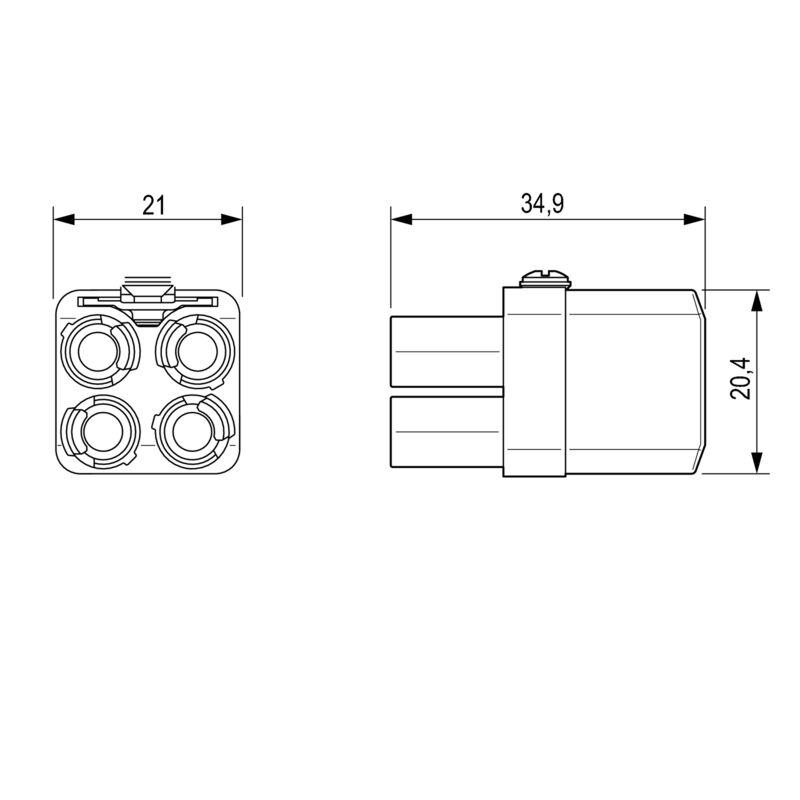

Dimensions and weights

Depth
21 mm
Depth (inches)
0,827 inch
Height
40 mm
Height (inches)
1,575 inch
Net weight
18,3 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Height of plug
21 mm

General data

BG
1
Colour
grey
Installation size
1
Insulating material
PC
Märkspänning (DIN EN 61984)
830 V
Number of poles
4
Number of power contacts
4
Plugging cycles
≥ 500
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Rated current (DIN EN 61984)
40 A
Rated impulse voltage (DIN EN 61984)
8 kV
Tipo
Male
Type of connection
Crimp contact
Túlfeszültség kategória
III
UL 94 flammability rating
V-0
Серия
HQ
Степень загрязнения
3
Protection degree
IP20

Power contact

Stripping length according to the cable diameter
  • Stripping length:
    9 mm

Version

BG
1
Conductor cross-section, max.
6 mm²
Conductor cross-section, min.
1,5 mm²
Installation size
1
Type of connection
Crimp contact

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
