HSS-HF 2.4-4.8 EL Y30M
HSS-HF 2.4-4.8 EL Y30M

HSS-HF 2.4-4.8 EL Y30M

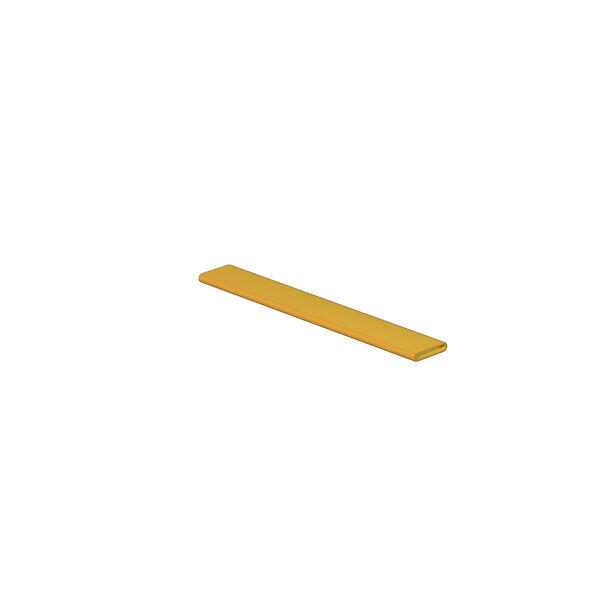

Conductor and cable markers, 2.4 - 4.8 mm, yellow

Tuotteen tunnus 1513170000
Lataa tietosivu Tuotelataukset Tekninen tuki
Lisävarusteet 5 Samankaltaiset tuotteet 39
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 2.4 - 4.8 mm, yellow
Order No.
1513170000
Type
HSS-HF 2.4-4.8 EL Y30M
GTIN (EAN)
4050118320909
Qty.
1 items

Dimensions and weights

Depth
0,9 mm
Depth (inches)
0,035 inch
Width
7,6 mm
Width (inches)
0,299 inch
Length
30.000 mm
Length (inches)
1.181,1 inch
Net weight
286 g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

anpassad skrivare
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Colour
yellow
Halogen
No
Length
30.000 mm
Materiał podstawowy
Polyolefine
Nadrukowane znaki
without
Number per roll
1
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Type of printing
neutral
Width
7,6 mm
Температурный диапазон вставки
-55...105 °C

Conductor and cable markers

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,75 mm²
Csatlakoztatott vezeték keresztmetszete
0.75 - 4 mm²
Diamètre extérieur du conducteur, min.
2,4 mm
Diámetro externo del conductor, max.
4,8 mm
Halogen
No
Temperatura di ritiro consigliata
90 °C
Zsugorodás mértéke
2:1
컨덕터 O.D.
2.4 - 4.8 mm

Important note

Product information
External roll holder 1302920000 necessary

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
