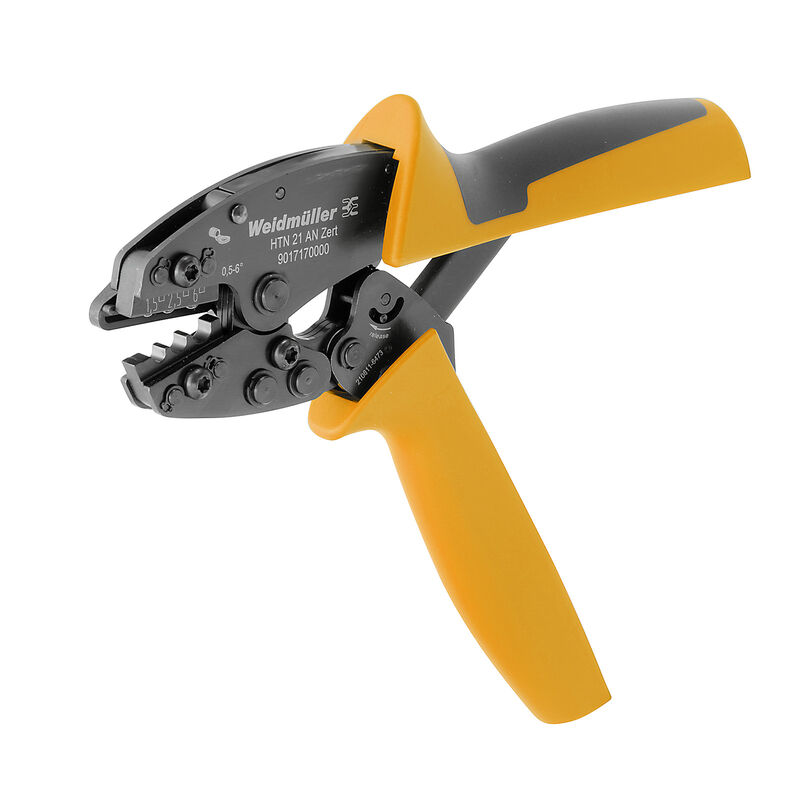

HTN 21 AN ZERT
HTN 21 AN ZERT

HTN 21 AN ZERT

Crimpwerkzeug, Crimpwerkzeug für Kontakte, 0.5mm², 6mm², Indent-Crimp

N.º de artículo 9017170000
Descargar hoja de datos Engineering Support Product Downloads
Verwante producten 4
General ordering data Dimensions et poids Environmental Product Compliance Technical data Description du contact tool data crimping Classifications

General ordering data

Version
Crimpwerkzeug, Crimpwerkzeug für Kontakte, 0.5mm², 6mm², Indent-Crimp
Référence
9017170000
Type
HTN 21 AN ZERT
GTIN (EAN)
4008190218447
CPZ
1 Pezzo

Dimensions et poids

Largeur
200 mm
Largeur (pouces)
7,874 inch
순중량
442,64 g

Environmental Product Compliance

Statut de conformité RoHS
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Descripción del artículo
Crimping tool for non-insulated connectors, 0.5-6 mm, ² with end stop
Version
Mechanical, without interchangeable inserts

Description du contact

Conductor cross-section, max. AWG
AWG 10
Conductor cross-section, min. AWG
AWG 21
Crimping range, max.
6 mm²
Crimping range, min.
0,5 mm²
Type of contact
Uninsulated connection

tool data crimping

Crimping type/profile
Indent crimp
Wire end ferrules cross-section, max.
6 mm²

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
