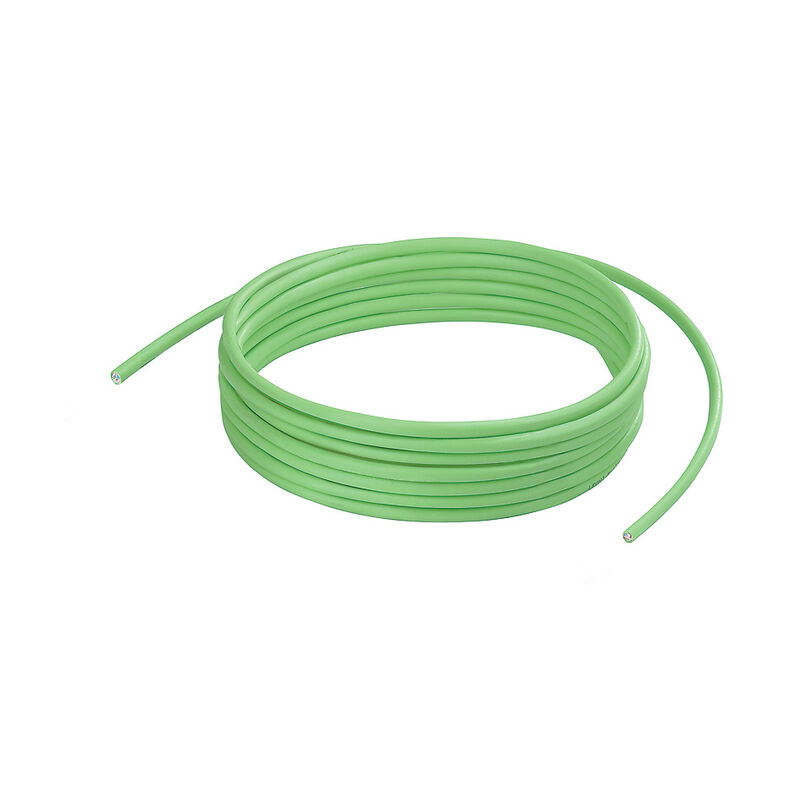

Similar to illustration
IE-C5ES8UG-100
Detailed drawing

IE-C5ES8UG-100

System cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 100 m

Tuotteen tunnus 8813200000
Lataa tietosivu Product Downloads
Lisävarusteet 2 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 100 m
Order No.
8813200000
Type
IE-C5ES8UG-100
GTIN (EAN)
4032248513055
Qty.
1  items
Packaging
as cable ring in carton

Dimensions and weights

Length
100  m
Length (inches)
3 937,008  inch
Net weight
3 882  g

Temperatures

Storage temperature
-40 °C...75 °C
Operating temperature
-40 °C...75 °C
Installation temperature
-10 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Technical specifications for cable

Halogen
halogen-free, according to IEC 60754-2
Insulation
PE
Number of poles
8
Number of wires
8
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Sheathing colour
green (RAL 6018)
Shielded
Yes
Test voltage: wire-wire-shield
1000 Vrms, 50 Hz, 1 min

Cable specific standards

Corrosiveness of fumes
to IEC 60754-2
Generic communication cable facilities
ISO / IEC 11801:2002
EN 50173-1:2007
Standard, assembly
UL-Style 20963 (80°C/30V)

Standards

Corrosiveness of fumes
to IEC 60754-2
Generic communication cable facilities
ISO / IEC 11801:2002
EN 50173-1:2007
Standard, assembly
UL-Style 20963 (80°C/30V)

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Insulation
PE
Insulation cross-section
1  mm
Material sheath
PUR
Number of wires
8
Overlap of shielding braid
65  %
Sheath diameter, max.
6,3  mm
Sheath diameter, min.
5,7  mm
Sheathing colour
green (RAL 6018)
Shielding
SF/UTP
Shielding braid thickness
0,1  mm
Standard designations
SF/UTP
IE-5CC4x2xAWG26/7-PUR LI02YS(ST)C11Y (UL) AWM 20963 80°C 30V
Strands
7
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Capacity at 1 kHz
47  nF/km
Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 5 Ω at 100MHz
Delay skew
25  ns/100m
Loop resistance
290  Ω/km
Signal propagation time
4,85  ns/m
Test voltage: wire-wire-shield
1000 Vrms, 50 Hz, 1 min

Mechanical and material properties of cable

Abrasion resistance
very good
Corrosiveness of fumes
to IEC 60754-2
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
UV-resistant
Yes

Classifications

ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
ETIM 9.0
EC003249
ETIM 10.0
EC003249
ECLASS 9.0
27-06-18-05
ECLASS 9.1
27-06-90-90
ECLASS 10.0
27-06-18-01
ECLASS 11.0
27-06-18-01
ECLASS 12.0
27-06-18-01
