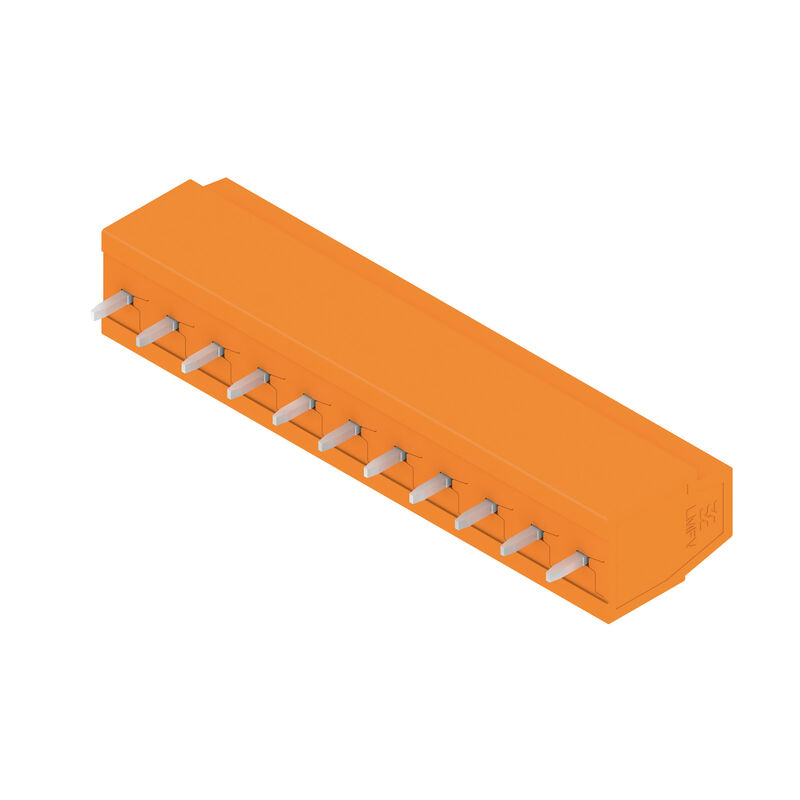

Bornes para circuito impreso, 5.00 mm, Número de polos: 11, 90°, Longitud del terminal de soldadura (l): 3.5 mm, estañado, naranja, PUSH IN con actuador, Sección de embornado, máx. : 2.5 mm², Caja

Product ID 2786630000
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 23
Zulassungen Datos generales para pedido Dimensions and weights Conformidad medioambiental del producto Parámetros del sistema Material data Conductors suitable for connection Datos nominales conformes a IEC Dati di dimensionamento sec. UL 1059 Packing Note importante Besorolások

Zulassungen

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Zgodny
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

Datos generales para pedido

Version
Bornes para circuito impreso, 5.00 mm, Número de polos: 11, 90°, Longitud del terminal de soldadura (l): 3.5 mm, estañado, naranja, PUSH IN con actuador, Sección de embornado, máx. : 2.5 mm², Caja
Order No.
2786630000
Type
LMFV 5.00/11/90 3.5SN OR BX
GTIN (EAN)
4064675064190
Qty.
68 items
Product data
IEC: 630 V / 24 A / 0.2 - 2.5 mm²
UL: 300 V / 15 A / AWG 24 - AWG 14
Packaging
Box

Dimensions and weights

Depth
10 mm
Depth (inches)
0,394 inch
Height
17,3 mm
Magasság (coll)
0,681 inch
Width
55,5 mm
Width (inches)
2,185 inch
Net weight
15,4 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
0.1 wt% 이상의 SVHC 없음

Parámetros del sistema

Product family
OMNIMATE Signal - Serie LMF
Wire connection method
PUSH IN aktuátorral
Mounting onto the PCB
Collegamento a saldare THT
Conductor outlet direction
90°
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Number of poles
11
Pin series quantity
1
Number of rows
1
Solder pin length (l)
3,5 mm
Solder pin dimensions
0.95 x 0.8 mm
Screwdriver blade
0.6 x 3.5
Stripping length
8 mm
Stripping length tolerance
  • min.:
    -1 mm
  • max.:
    0 mm
L1 in mm
50 mm
L1 in inches
1,97 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20

Material data

Insulating material
PA
Colour
naranja
Colour chart (similar)
RAL 2000
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Coating
4-8 μm SN
Layer structure of solder connection
4...8 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
115 °C

Conductors suitable for connection

Clamping range, min.
0,2 mm²
2,5 mm²
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Datos nominales conformes a IEC

Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
24 A
Rated current, min. number of poles (Tu=40°C)
24 A
Rated current, max. number of poles (Tu=40°C)
23,1 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
350 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Dati di dimensionamento sec. UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
15 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
170 mm
VPE width
130 mm
VPE height
50 mm

Note importante

IPC conformity
Conformité  : les produits sont conçus, fabriqués et livrés selon des normes internationales reconnues  ; et ils sont conformes aux caractéristiques garanties dans la fiche de données / respectent les propriétés décoratives selon IPC-A-610 « Classe 2 ». Des requêtes supplémentaires sur le produit peuvent être évaluées sur demande.
Notes

• Altre varianti su richiesta
• Corrente nominale relativa alla sezione nominale e al numero min. di poli
• Terminali senza collare isolante secondo DIN 46228/1
• Terminali con collare isolante DIN 46228/4
• P su disegno = passo
• I dati di dimensionamento si riferiscono ai singoli componenti. Per le distanze in aria e superficiali rispetto agli altri componenti, fare riferimento alle relative norme in funzione dell'applicazione.
• Il rilevatore di prova può essere usato solo come punto di pickup potenziale.
• Stoccaggio a lungo termine del prodotto con una temperatura media di 50 °C e un’umidità massima del 70 %, 36 mesi

Besorolások

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
