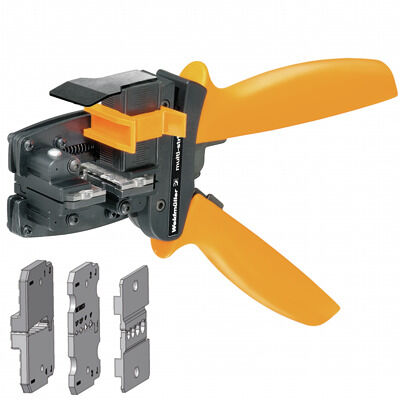

MULTI-STRIPAX 1.5-6.0S
MULTI-STRIPAX 1.5-6.0S

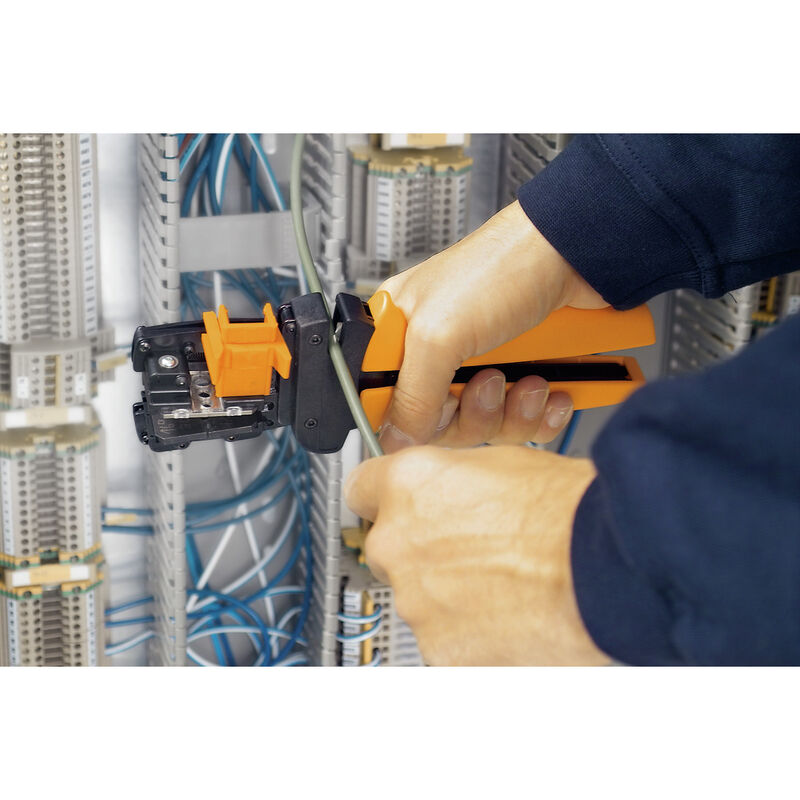

Example of use

MULTI-STRIPAX 1.5-6.0S

Tools, Stripping and cutting tool

Product ID 9204560000
Gegevensblad downloaden Product Downloads
Toebehoren 12 Afzonderlijke onderdelen 3 Verwante producten 10
General ordering data Dimensions and weights Environmental Product Compliance Technical data Stripping tools Classifications

General ordering data

Version
Tools, Stripping and cutting tool
Order No.
9204560000
Type
MULTI-STRIPAX 1.5-6.0S
GTIN (EAN)
4032248671106
Qty.
1  items

Dimensions and weights

Depth
40  mm
Depth (inches)
1,575  inch
Height
85  mm
Height (inches)
3,346  inch
Width
250  mm
Width (inches)
9,842  inch
Net weight
555  g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

Technical data

Description of article
Stripping and cutting tool for VDE cables with PVC insulation, 1.5 - 6.0 mm²

Stripping tools

Cable type
Flexible and solid conductors with PVC insulation
Conductor cross-section (cutting capacity)
6  mm²
Conductor cross-section, max.
6  mm²
Conductor cross-section, min.
1,5  mm²
max. cutting capacity, fine-strand
6  mm²
max. cutting capacity, ribbon
10,2 mm x 4 mm
max. cutting capacity, solid
2,5  mm²
Stripping length, min.
2  mm
Stripping range AWG, max.
8  AWG
Stripping range AWG, min.
14  AWG

Classifications

ETIM 6.0
EC002109
ETIM 7.0
EC002109
ETIM 8.0
EC002109
ETIM 9.0
EC002109
ETIM 10.0
EC002109
ECLASS 9.0
21-04-37-06
ECLASS 9.1
21-04-37-06
ECLASS 10.0
21-04-37-06
ECLASS 11.0
21-04-37-06
ECLASS 12.0
21-04-37-06
ECLASS 13.0
21-04-37-06
ECLASS 14.0
21-04-37-06
ECLASS 15.0
21-04-37-06
