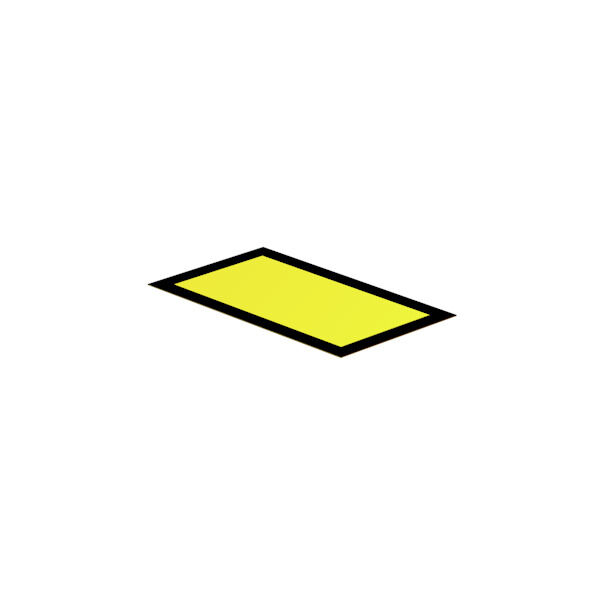

Device markers, Device markers, 11 x 19 mm, yellow

Produkt ID 1686170000
Download datablad Produktdownloads Engineering-support
Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Allmänna data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Device markers, Device markers, 11 x 19 mm, yellow
Order No.
1686170000
Type
PAGETAB 19/11
GTIN (EAN)
4008190492564
Qty.
25 Styk

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
11 mm
Height (inches)
0,433 inch
Width
19 mm
Width (inches)
0,748 inch
Net weight
8,624 g

Temperatures

작동 온도 범위
-29...93 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Allmänna data

Adhesive
Permanent acrylic copolymer
Basic material
Acrylic-coated fibre webbing
Colour
yellow
Imprint
Neutral
Material colour according to resistance code
4
Number of markers per packaging unit
5000
Number of markers per packaging unit
  • Form of supply:
    Label sheet
  • Number of combinations per packaging unit:
    25
  • Number of markers per combination:
    200
Number per sheet
200
Número de señalizadores por combinación

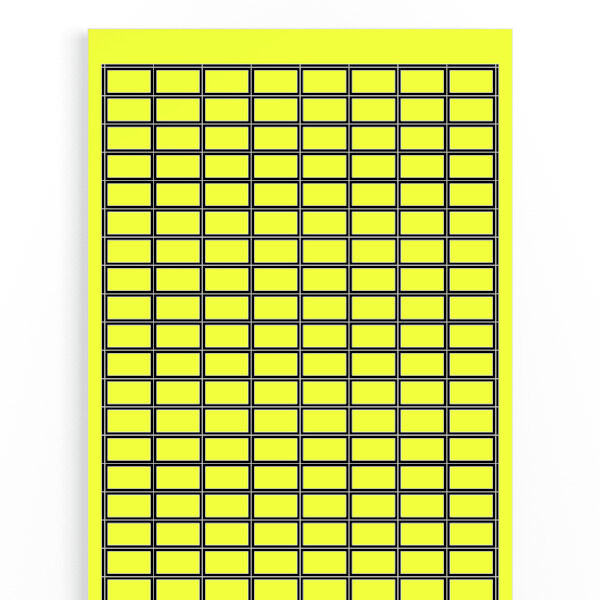

1 Label sheet = 200 Device markers
Operating temperature range
-29...93 °C
Operating temperature range, max.
93 °C
Operating temperature range, min.
-29 °C
Printed characters
without
Version
Self-adhesive
Width
19 mm

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
