PCF 5.00/08/135 3.5SN OR BX

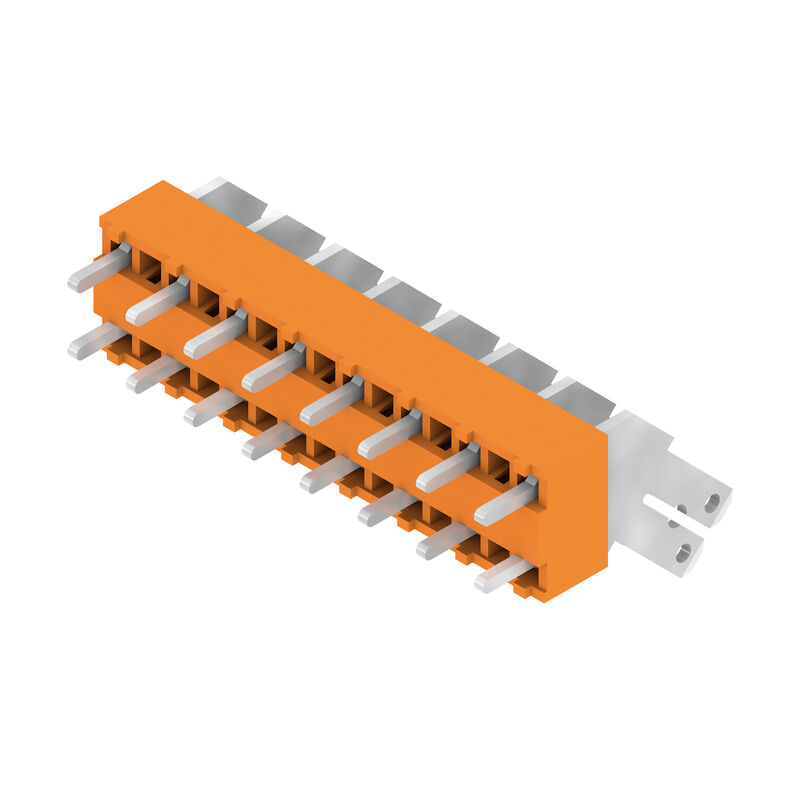

Product image
PCF 5.00/08/135 3.5SN OR BX

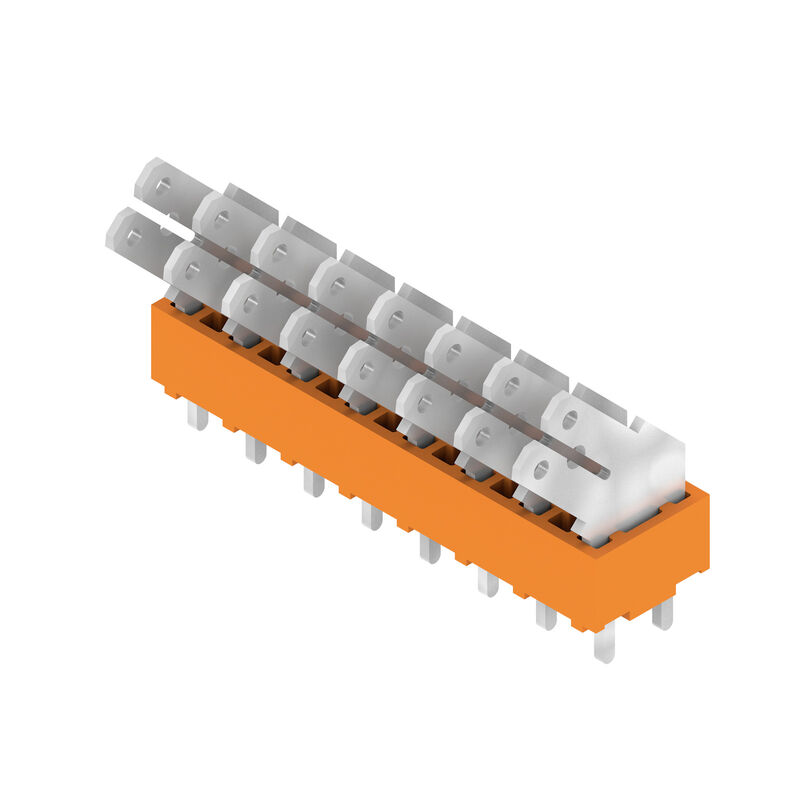

Product image
PCF 5.00/08/135 3.5SN OR BX
Dimensional drawing

PCF 5.00/08/135 3.5SN OR BX

Printed circuit board terminals, 5.00 mm, Number of poles: 8, 135°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box

Product ID 9511850000
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Printed circuit board terminals, 5.00 mm, Number of poles: 8, 135°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box
Order No.
9511850000
Type
PCF 5.00/08/135 3.5SN OR BX
GTIN (EAN)
4008190558000
Qty.
50 items
Product data
IEC: 630 V / 24 A
UL: 150 V / 15 A
Packaging
Box

Dimensions and weights

Depth
9,8 mm
Depth (inches)
0,386 inch
Height
21,4 mm
Height (inches)
0,843 inch
Height of lowest version
17,9 mm
Width
39,8 mm
Width (inches)
1,567 inch
Net weight
7,568 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Termékcsalád
PCF
Vezetékcsatlakozás-technika
Flat-blade connection
Felszerelés NYÁK-ra
THT solder connection
Conductor outlet direction
135°
Raszter mm-ben (P)
5 mm
Raszter inch-ben (P)
0,197 "
Number of poles
8
Pin series quantity
1
Az ügyfél szereli fel
No
Number of rows
1
Solder pin length (l)
3,5 mm
Solder pin dimensions
0.8 x 1.0 mm
0.75 x 0.9 mm
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
L1 in mm
35 mm
L1 in inches
1,378 "
Touch-safe protection acc. to DIN VDE 0470
IP 00
Protection degree
IP20
Volume resistance
1.20 mΩ

Material data

Insulating material
PA
Colour
orange
比色表 (相似)
RAL 2000
绝缘材料组
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-2
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1.5...3 µm Ni / 5...7 µm Sn
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
21 A
额定电流，最小回路数 (Tu = 40°C)
24 A
额定电流，最大回路数 (Tu = 40°C)
18 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s mit 192 A

Rated data acc. to CSA

Intézet (CSA)
CSA
Tanúsítvány száma (CSA)
12400-282
Névleges feszültség (B felhasználási csoport / CSA)
150 V
정격 전압(사용 그룹 D / CSA)
300 V
Névleges áram (B felhasználási csoport / CSA)
15 A
Névleges áram (D felhasználási csoport / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
150 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
15 A
Rated current (Use group D / UL 1059)
10 A

Packing

Packaging
Box
Długość VPE
150 mm
VPE width
131 mm
VPE height
35 mm

Type tests

테스트: 표시 내구성
  • Standard:
    DIN IEC 60512-2 section 1 / 05.94
  • Test:
    mark of origin, type identification, approval marking UL, approval marking CSA, durability
  • Evaluation:
    available

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
