PCF 7.50/09/90 3.5SN OR BX

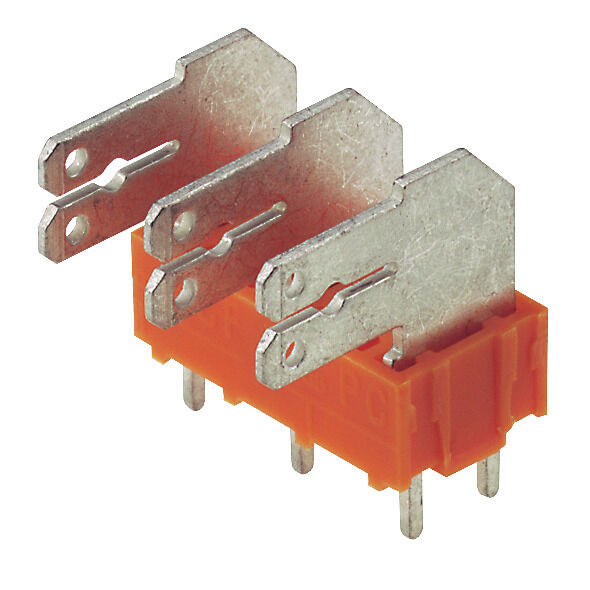

Product image
Similar to illustration
PCF 7.50/09/90 3.5SN OR BX

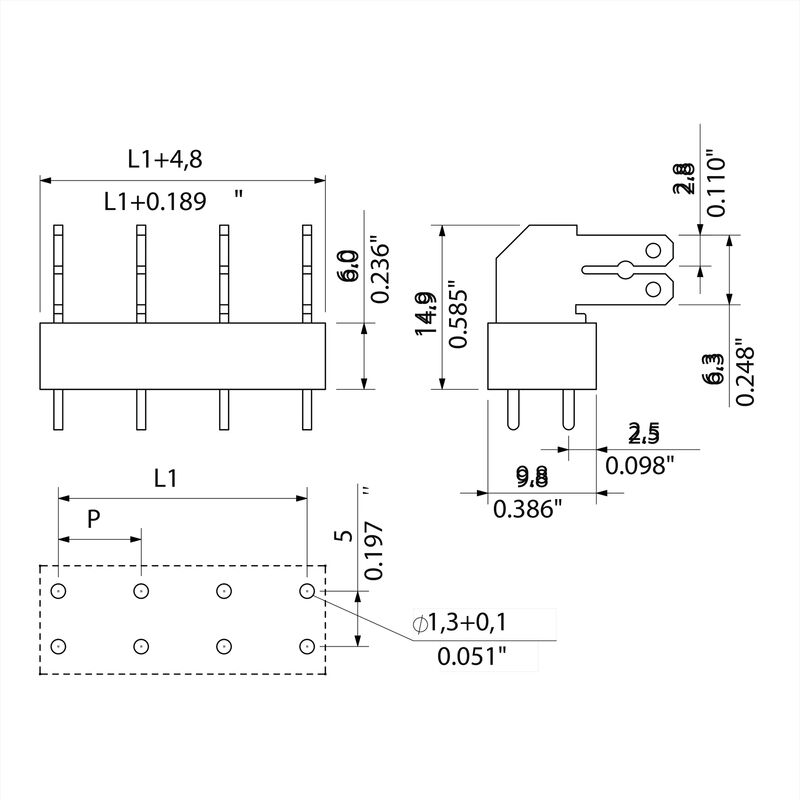

Dimensional drawing

PCF 7.50/09/90 3.5SN OR BX

Printed circuit board terminals, 7.50 mm, Number of poles: 9, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box

Produkt ID 9512180000
Download datablad Engineering Support Product Downloads
Anvendte produkter 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Printed circuit board terminals, 7.50 mm, Number of poles: 9, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box
Order No.
9512180000
Type
PCF 7.50/09/90 3.5SN OR BX
GTIN (EAN)
4008190558338
Qty.
50  Styk
Product data
IEC: 1000 V / 24 A
UL: 300 V / 15 A
Packaging
Box

Dimensions and weights

Depth
9,8  mm
Depth (inches)
0,386  inch
Height
18,4  mm
Height (inches)
0,724  inch
Height of lowest version
14,9  mm
Width
64,8  mm
Width (inches)
2,551  inch
Net weight
10,296  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
PCF
Wire connection method
Flat-blade connection
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Pitch in mm (P)
7,5  mm
Pitch in inches (P)
0,295  "
Number of poles
9
Pin series quantity
1
Fitted by customer
No
Number of rows
1
Solder pin length (l)
3,5  mm
Solder pin dimensions
0.8 x 1.0 mm
0.75 x 0.9 mm
Solder eyelet hole diameter (D)
1,3  mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
L1 in mm
60  mm
L1 in inches
2,362  "
Touch-safe protection acc. to DIN VDE 0470
IP 00
Protection degree
IP20
Volume resistance
1.20 mΩ

Material data

Insulating material
PA
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-2
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1.5...3 µm Ni / 5...7 µm Sn
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
-25  °C
Temperature range, installation, max.
100  °C

Conductors suitable for connection

Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24  A
Rated current, max. number of poles (Tu=20°C)
26  A
Rated current, min. number of poles (Tu=40°C)
24  A
Rated current, max. number of poles (Tu=40°C)
23  A
Rated voltage for surge voltage class / pollution degree II/2
1.000  V
Rated voltage for surge voltage class / pollution degree III/2
690  V
Rated voltage for surge voltage class / pollution degree III/3
500  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6  kV
Short-time withstand current resistance
3 x 1s mit 192 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
12400-282
Rated voltage (Use group B / CSA)
300  V
Rated voltage (Use group C / CSA)
150  V
Rated voltage (Use group D / CSA)
300  V
Rated current (Use group B / CSA)
15  A
Rated current (Use group C / CSA)
15  A
Rated current (Use group D / CSA)
10  A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group C / UL 1059)
150  V
Rated voltage (Use group D / UL 1059)
300  V
Rated current (Use group B / UL 1059)
15  A
Rated current (Use group C / UL 1059)
15  A
Rated current (Use group D / UL 1059)
10  A

Packing

Packaging
Box
VPE length
151  mm
VPE width
132  mm
VPE height
35  mm

Type tests

Test: Durability of markings
  • Test:
    mark of origin, type identification, approval marking UL, approval marking CSA, durability
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002643
ETIM 7.0
EC002643
ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 9.0
27-44-04-01
ECLASS 9.1
27-44-04-01
ECLASS 10.0
27-44-04-01
ECLASS 11.0
27-46-01-01
ECLASS 12.0
27-46-01-01
ECLASS 13.0
27-46-01-01
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
