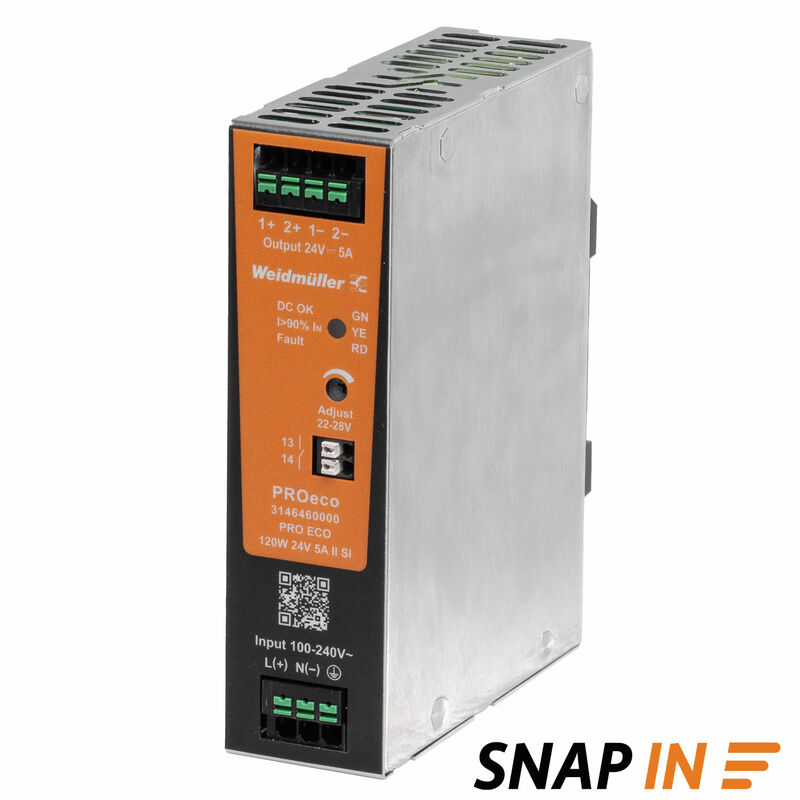

Power supply, switch-mode power supply unit, 24 V

Product ID 3146460000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 4 Verwante producten 9
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Input Output General data EMC / shock / vibration Insulation coordination Electrical safety (applied standards) Connection data (input) Connection data (output) Connection data (signal) Signalling Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E255651
Certificate no. (cULus)
E258476

General ordering data

Version
Power supply, switch-mode power supply unit, 24 V
Order No.
3146460000
Type
PRO ECO 120W 24V 5A II SI
GTIN (EAN)
4099987579407
Qty.
1 items

Dimensions and weights

Depth
100 mm
Depth (inches)
3,937 inch
Height
130 mm
Height (inches)
5,118 inch
Width
35 mm
Width (inches)
1,378 inch
Net weight
510 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Start-up
≥ -40 °C
Humidity
5…95 % rel. humidity, no condensation

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Lead monoxide 1317-36-8
SCIP
d62541f7-8058-4336-b693-7303c8b40800

Rated data UL

Certificate No. (cURus)
E255651

Input

AC 입력 전압 범위
85...264 V AC (derating at 100 V AC)
Current consumption in relation to the input voltage
  • Voltage type:
    AC
  • Input voltage:
    100 V
  • Input current:
    2,17 A
  • Voltage type:
    AC
  • Input voltage:
    240 V
  • Input current:
    1,08 A
  • Voltage type:
    DC
  • Input voltage:
    120 V
  • Input current:
    1,15 A
  • Voltage type:
    DC
  • Input voltage:
    370 V
  • Input current:
    0,41 A
DC input voltage range
110…370 V DC (derating at 120 V DC)
Input electric strength, max.
300 V AC 15 s
Input fuse
internal
Inrush current (typ.)
40 A
Line regulation (typ.)
1 %
Load regulation (typ.)
2 %
Märkingångsspänning
100...240 V AC / 120...340 V DC
Nominal power consumption
134,8 VA
Start-up time, max.
1 s
Surge protection
Varistor
Wire connection method
SNAP IN
Zakres częstotliwości AC
45…65 Hz
Рекомендуемый предохранитель
3 A / DI, safety fuse
6 A, Char. B, circuit breaker
3…5 A, Char. C circuit breaker
결선 방식
SNAP IN

Output

Capacitive load
unrestricted
Connection system
SNAP IN
Continuous output current @ UNominal
3.125 A @ 70 °C
Line regulation (typ.)
1 %
Load regulation (typ.)
2 %
Mains failure bridge-over time
  • Mains failure bridge-over time, min.:
    118 ms
  • Input voltage type:
    AC
  • Input voltage:
    230 V
  • Output current:
    5 A
  • Output voltage:
    24 V
  • Mains failure bridge-over time, min.:
    25 ms
  • Input voltage type:
    AC
  • Input voltage:
    120 V
  • Output current:
    5 A
  • Output voltage:
    24 V
Max. residual ripple
<50 mVPP / bandwidth 20 MHz
Nominal output current for Unom
5 A @ 55 °C
Output power
120 W
Output voltage, max.
28 V
Output voltage, min.
22 V
Output voltage, note
(adjustable via potentiometer)
Overload protection
Yes
Parallel connection option
yes, max. 3
Protection against inverse voltage
Yes
Ramp-up time
≤ 100 ms
Rated output voltage
24 V DC
Wire connection method
SNAP IN

General data

AC failure bridging time @ Inom
> 100 ms at 230 V AC / > 20 ms at 120 V AC
Degree of efficiency
Typ.: 88,4% @ 120 V AC
Typ.: 90,1% @ 230 V AC
Earth leakage current, max.
3,5 mA
Housing version
Metal, corrosion resistant
Humidity
5…95 % rel. humidity, no condensation
Mounting position, installation notice
on terminal rail TS 35
MTBF
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    3.300.000 h
  • Ambient temperature:
    25 °C
  • Input voltage:
    230 V
  • Output power:
    120 W
  • Duty cycle:
    100 %
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    2.000.000 h
  • Ambient temperature:
    40 °C
  • Input voltage:
    230 V
  • Output power:
    120 W
  • Duty cycle:
    100 %
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    900.000 h
  • Ambient temperature:
    60 °C
  • Input voltage:
    230 V
  • Output power:
    120 W
  • Duty cycle:
    100 %
Power factor
  • Power factor typical:
    0.5
  • Input voltage:
    120 V
  • Ambient temperature:
    25 °C
  • Output power:
    120 W
  • Power factor typical:
    0.5
  • Input voltage:
    230 V
  • Ambient temperature:
    25 °C
  • Output power:
    120 W
Power loss, idling
1 W
Protection against reverse voltages from the load
30…35 V DC
Protection contre les courts-circuits
Yes
Protection degree
IP20
Protezione contro la sovratemperatura
Yes
Pérdida de potencia, carga nominal
15 W
Surge voltage category
II
Üzemi magasság
≤ 5000 m (> 2000 m, observe derating)

EMC / shock / vibration

Interference immunity test acc. to
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
IEC 61000-6-4
EN 61000-4-4 (burst)
EN 61000-4-5 (surge)
EN 61000-4-6 (conducted)
EN61000-4-8 (Fields)
EN 61000-4-11 (Dips)
IEC 61000-6-1
IEC 61000-6-2
IEC 61000-6-3
Limiting of mains voltage harmonic currents
According to EN 61000-3-2
Noise emission in accordance with EN55032
Class B
Shock resistance IEC 60068-2-27
30 g in all directions
Vibration resistance IEC 60068-2-6
0.7 g

Insulation coordination

Insulation voltage input / earth
3 kV
Insulation voltage output / earth
0,5 kV
Insulation voltage, input/output
4 kV
Pollution severity
2
Protection class
I, with PE connection
Surge voltage category
II

Electrical safety (applied standards)

Electrical machine equipment
Acc. to EN60204
Safety extra-low voltage
SELV acc. to IEC 61010-1
PELV acc. to IEC 61010-2-201
Safety transformers for switch-mode power supplies
According to EN 61558-2-16

Connection data (input)

Conductor cross-section, AWG/kcmil , max.
12 AWG
Conductor cross-section, AWG/kcmil , min.
20 AWG
Conductor cross-section, flexible , min.
0,5 mm²
Conductor cross-section, rigid , max.
2,5 mm²
Conductor cross-section, rigid , min.
0,5 mm²
Connection system
SNAP IN
Number of terminals
3 for L/N/PE
Stripping length (input)
9 mm
Wire connection cross section, flexible (input), max.
4 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.
12 AWG
Conductor cross-section, AWG/kcmil , min.
20 AWG
Conductor cross-section, flexible , max.
4 mm²
Conductor cross-section, flexible , min.
0,5 mm²
Conductor cross-section, rigid , max.
2,5 mm²
Conductor cross-section, rigid , min.
0,5 mm²
Connection system
SNAP IN
Number of terminals
4 (++ / --)
Stripping length (output)
9 mm

Connection data (signal)

Stripping length (Signal)
8 mm
단자대 수
2
와이어 결선 단면적, 연질(신호), 최대
1,5 mm²
와이어 결선 단면적, 연질(신호), 최소
0,2 mm²
와이어 결선 방식
PUSH IN
와이어 단면적, AWG/kcmil , 최대
14
와이어 단면적, AWG/kcmil , 최소
28 mm²
와이어 단면적, 솔리드 , 최대
1,5 mm²
와이어 단면적, 솔리드 , 최소
0,2 mm²

Signalling

LED 녹색
Operating voltage OK
유동 접점
Yes
접점 부하(NO 접점)
max. 30 V DC / 1 A

Classifications

ETIM 8.0
EC002540
ETIM 9.0
EC002540
ETIM 10.0
EC002540
ECLASS 14.0
27-04-07-01
ECLASS 15.0
27-04-07-01
