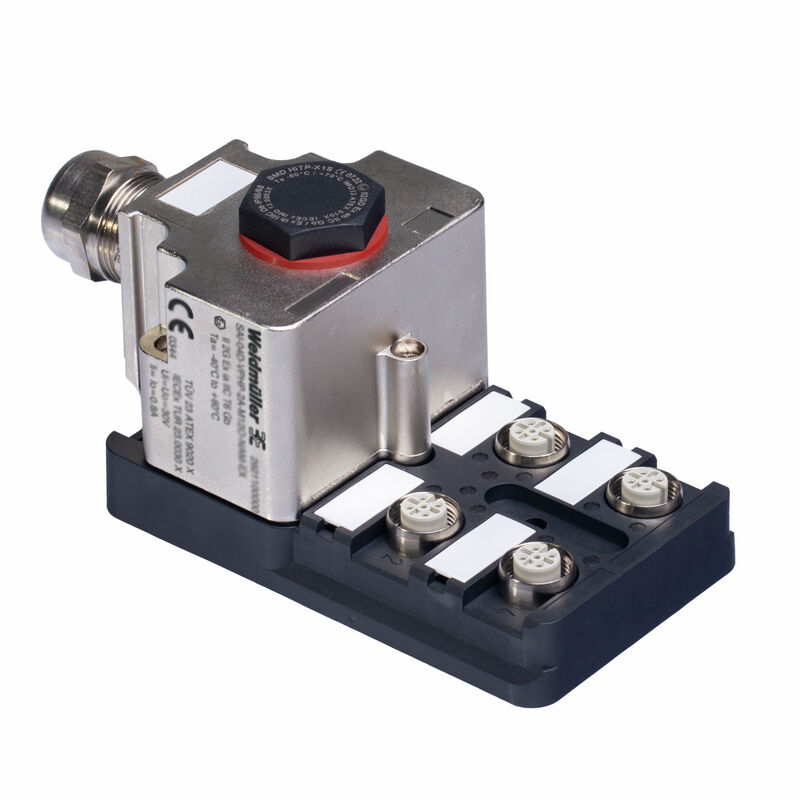

Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1

Item No. 2921150000
Download data sheet Engineering Support Product Downloads
Accessories 4 Individual parts 3 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)

General ordering data

Version
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 1:1
Order No.
2921150000
Type
SAI-04D-VPHP-5A-M12O-1:1-EX
GTIN (EAN)
4099986612822
Qty.
1  items

Dimensions and weights

Depth
60  mm
Depth (inches)
2.362  inch
Height
61.3  mm
Height (inches)
2.413  inch
Length
102  mm
Length (inches)
4.016  inch
Net weight
250  g

Temperatures

Operating temperature
-40 - 60°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Wire connection method
PUSH IN
Cable glands
M 20
Clamping range, min.
0.14  mm²
Clamping range, max.
1.5  mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Solid, min. H05(07) V-U
0.14  mm²
Solid, max. H05(07) V-U
1.5  mm²
Flexible, min. H05(07) V-K
0.14  mm²
Flexible, max. H05(07) V-K
1.5  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.28  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.25  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1  mm²
Distributor outlet
Hood version Ex

Electrical data

Rated voltage, min.
0  V
Rated voltage, max.
30  V
Max. current-carrying capacity per slot
0.8  A
Total current
0.8 A
Current per signal
0.8  A

General technical data

Plug-in station coding
A-coded
Protection degree
IP66
IP67
Surge voltage category
III
Number of poles
5
Number of contact sockets
4
Connection thread
M12
Pollution severity
3
Fire behaviour
V-0
Plugging cycles
≤ 50
LED
No
LED initiator
No

Material data

Material O-Ring
FKM
Housing main material
Pocan (base module)
Zinc diecast (hood)
Housing colour
black (similar to RAL 9005)
Hood sealing material
Polyurethane foamed
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)
Cable gland material
metal

Important note

Product information

Included in delivery:

  • 2 x Protection cap M12
  • 1 x Cable gland M20x1.5
  • 1 x Sealing Plug M20x1.5
  • 1 x MultiCard ESG 9/17 K Device marker


Classifications

ETIM 6.0
EC002585
ETIM 7.0
EC003558
ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 9.0
27-44-01-08
ECLASS 9.1
27-44-01-08
ECLASS 10.0
27-44-01-11
ECLASS 11.0
27-44-01-11
ECLASS 12.0
27-44-01-11
ECLASS 13.0
27-44-01-11
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
