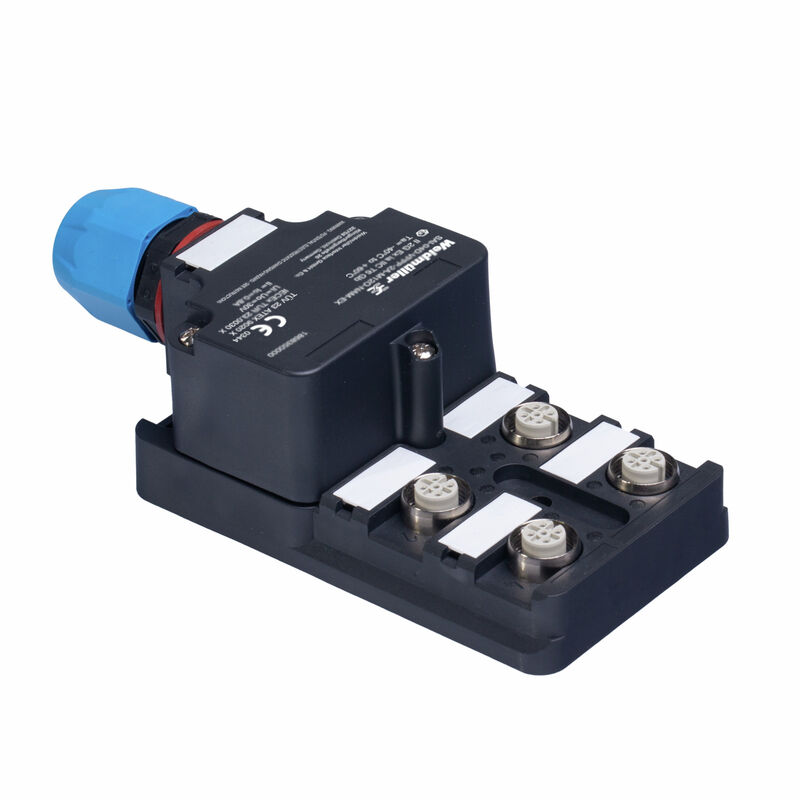

Вариант с крышкой Ex, M12, 30 V, A-кодировка, LED: Нет, Светодиод пускового устройства: Нет, Тип подключения: 1:1

Item No. 2902950000
Download data sheet Engineering Support Product Downloads
Accessories 20 Individual parts 3 Related products 2
Zulassungen Ogólne dane zamówieniowe Dimensiones y pesos Temperatures Zgodność produktu z wymogami środowiska naturalnego Connection data Electrical data General technical data Material data Nota importante Classifications

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)

Ogólne dane zamówieniowe

Version
Вариант с крышкой Ex, M12, 30 V, A-кодировка, LED: Нет, Светодиод пускового устройства: Нет, Тип подключения: 1:1
Order No.
2902950000
Type
SAI-04D-VPPP-5A-M12O-1:1-EX
GTIN (EAN)
4099986005556
Qty.
1 items

Dimensiones y pesos

Depth
60 mm
Byggdjup (tum)
2.362 inch
Height
41.5 mm
Height (inches)
1.634 inch
Length
102 mm
Length (inches)
4.016 inch
Net weight
194.48 g

Temperatures

Operating temperature
-40 - 60°C

Zgodność produktu z wymogami środowiska naturalnego

RoHS Compliance Status
Zgodne, bez wyłączenia
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Wire connection method
PUSH IN
Cable gland
M 20
Clamping range, min.
0.14 mm²
Clamping range, max.
1.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Solid, min. H05(07) V-U
0.14 mm²
Solid, max. H05(07) V-U
1.5 mm²
Flexible, min. H05(07) V-K
0.14 mm²
Flexible, max. H05(07) V-K
1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.28 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1 mm²
Distributor outlet
Hood version Ex

Electrical data

Rated voltage, min.
0 V
Rated voltage, max.
30 V
Max. current-carrying capacity per slot
0.8 A
Total current
0.8 A
Current per signal
0.8 A

General technical data

Plug-in station coding
A-coded
Protection degree
IP66
IP67
Surge voltage category
III
Number of poles
5
Number of contact sockets
4
Connection thread
M12
Pollution severity
3
Fire behaviour
V-0
Plugging cycles
≤ 50
LED
No
LED initiator
No

Material data

Material O-Ring
FKM
Housing main material
Pocan
Housing colour
black (similar to RAL 9005)
Hood sealing material
Polyurethane foamed
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)
Cable gland material
Plastic

Nota importante

Product information

인도 시 포함:

  • 보호 캡 M12 2개
  • 케이블 글랜드 M20x1.5 1개
  • MultiCard ESG 9/20 장치 마커 1개


Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
