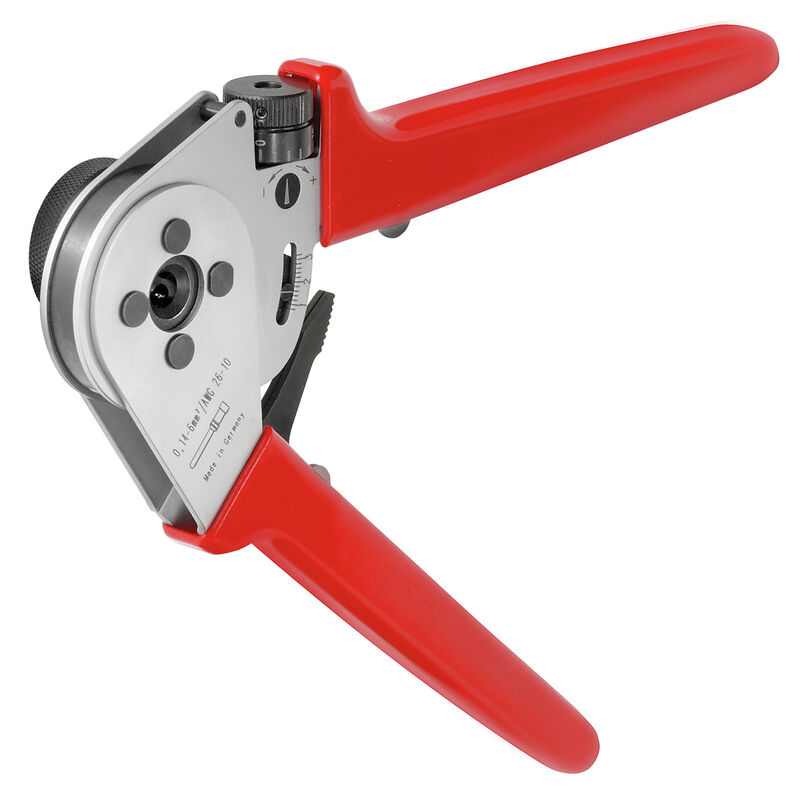

Pressing tool for signal and power contacts, 4-indent crimp

Product ID 1203840000
Gegevensblad downloaden Product Downloads
Toebehoren 17 Is accessoire van 21 Verwante producten 2
General ordering data Dimensions and weights Environmental Product Compliance Technical data Description of contact tool data crimping Classifications

General ordering data

Version
Pressing tool for signal and power contacts, 4-indent crimp
Order No.
1203840000
Type
SAI M23 CRIMPING TOOL 1
GTIN (EAN)
4032248986934
Qty.
1  items

Dimensions and weights

Length
230  mm
Length (inches)
9,055  inch
Net weight
1.146  g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
7baf363e-d867-435e-844e-c01f32ebf146

Technical data

Version
Mechanical, without interchangeable inserts

Description of contact

Conductor cross-section, max. AWG
AWG 10
Conductor cross-section, min. AWG
AWG 26
Type of contact
Turned contacts

tool data crimping

Crimping type/profile
4-indent crimp
Wire end ferrules cross-section, max.
4  mm²
Wire end ferrules cross-section, min.
0,25  mm²
