SAIBGP-P-5A-4/8-P12
SAIBGP-P-5A-4/8-P12
Dimensioned drawing
SAIBGP-P-5A-4/8-P12
Pole scheme
M12 = A-coded
SAIBGP-P-5A-4/8-P12
Similar to illustration
SAIBGP-P-5A-4/8-P12
SAIBGP-P-5A-4/8-P12

SAIBGP-P-5A-4/8-P12

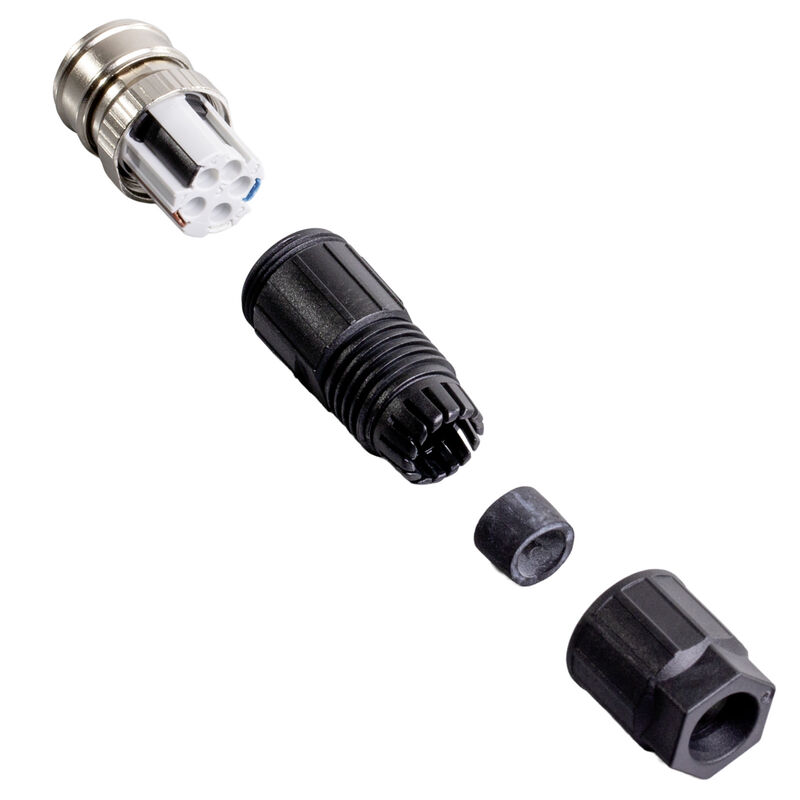

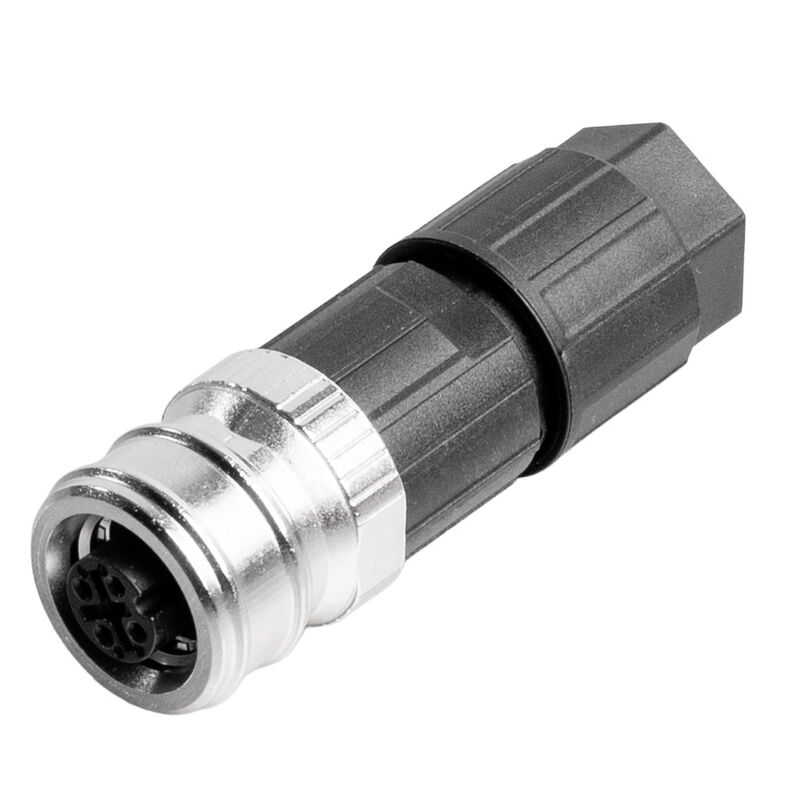

Field attachable connector, M12 Push-Pull

Ürün No. 3153350000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 36
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors General Info Standards Classifications

Approvals

ROHS
Conform

General ordering data

Version
Field attachable connector, M12 Push-Pull
Order No.
3153350000
Type
SAIBGP-P-5A-4/8-P12
GTIN (EAN)
4099987636223
Qty.
1 adet

Dimensions and weights

Width
62 mm
Width (inches)
2,441 inch
Diameter
18,6 mm
Net weight
24 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

Codificación
A-coded
Gender of contact
Female
Kábelátmérő, max.
8 mm
Kábelátmérő, min.
4 mm
Materiale dei contatti
CuSn
Matériau de base du boîtier
PA 66
Nedsmutsningsgrad
3
Nominal current
4 A
Number of poles
5
Rated voltage
  • Rated voltage:
    48 V
  • Voltage type:
    AC
  • Rated voltage:
    60 V
  • Voltage type:
    DC
Résistance d'isolation
≥ 100 MΩ
Shield connection
No
Superficie de contacto
Ni/Au
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Plastic
Type de raccordement
PUSH IN
Вид защиты
IP65
IP67
Циклы коммутации
≥ 100
전선 굵기, 최대
0,75 mm²
전선 굵기, 최소
0,14 mm²

General Info

Number of poles
5
Connection 1
M12
Connection 2
PUSH IN
UL 94 flammability rating
V-0
Housing main material
PA 66
Connection thread
M12 Push-Pull
Contact material
CuSn
Contact surface
Ni/Au
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 18
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
0,75 mm²
Contact holder materials
PA
Shielding
No
Protection degree
IP65
IP67
Plugging cycles
≥ 100

Standards

Connector standard
IEC 61076-2-010
IEC 61076-2-101

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
