SAIL-7/8G-3-3.0U
SAIL-7/8G-3-3.0U
SAIL-7/8G-3-3.0U
Dimensioned drawing
Male, straight
SAIL-7/8G-3-3.0U
Pole scheme
Male
SAIL-7/8G-3-3.0U
Wiring diagram
SAIL-7/8G-3-3.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-7/8G-3-3.0U

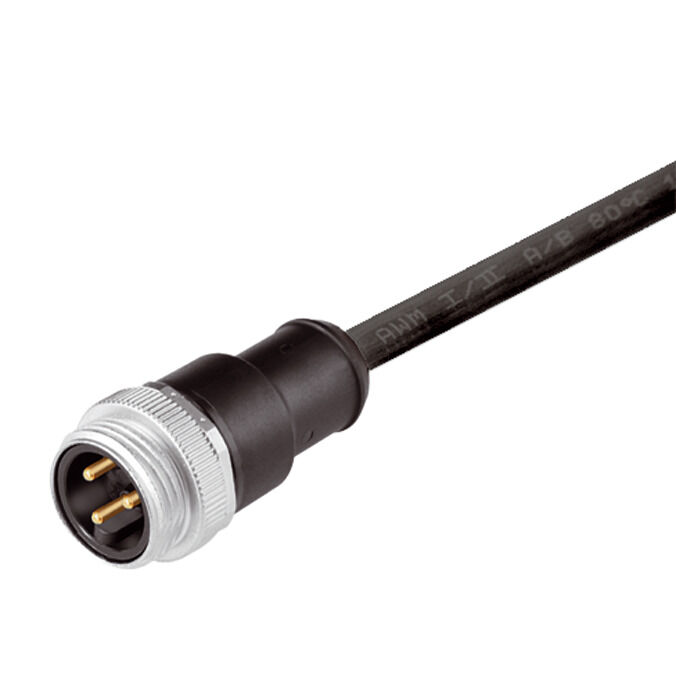

Sensor/actuator line, One end without connector, 7/8", Number of poles : 3 (2 + PE), 5 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1292080300
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, 7/8", Number of poles : 3 (2 + PE), 5 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1292080300
Type
SAIL-7/8G-3-3.0U
GTIN (EAN)
4050118087710
Qty.
1  items

Dimensions and weights

Net weight
290  g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Bending cycles
5 Mio
Bending radius, min., moving
7.5 x cable diameter
Cable length
5  m
Colour coding
blue
brown
Green/yellow
Configurable cable length
No
Core cross-section
1,5  mm²
Halogen
No
Insulation
TPM
Irradiation crosslinked
No
Number of poles
3 (2 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
7.4 mm ± 0.2 mm
PE function
Yes
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-20...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
0  °/m
Welding spark resistance
No

General technical data

Coding
none
Connection thread
7/8"
Contact material
CuZn
Contact surface
Au (Gold)
Housing main material
PUR
Insulation strength
108 Ω
jumpered
No
LED
No
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP68
when screwed in
Rated current
12  A
Rated impulse voltage
2.500  V
Rated voltage
300  V
Rated voltage (UL)
600 V
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Version
pin, straight

Electrical properties

Insulation strength
108 Ω
Rated current
9 A (4- and 5-pole), 12 A (3-pole)
Rated voltage
300  V

General standards

Certificate no. (cULus)
E307231

Plug, left

Plug left
IP68, male contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ECLASS 10.0
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
