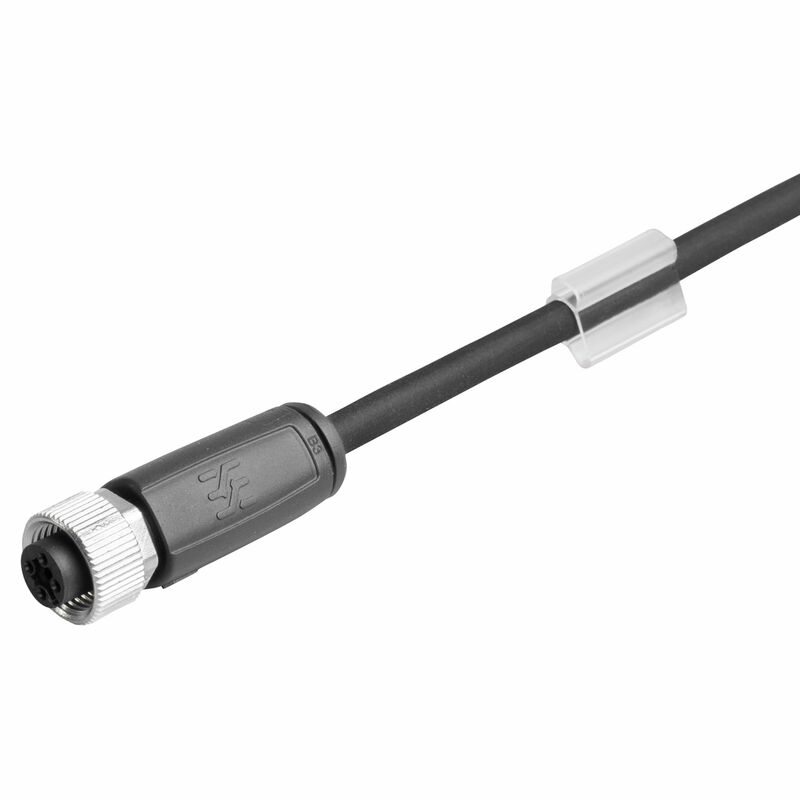

SAIL-M12BG-4-4.0U
SAIL-M12BG-4-4.0U
Dimensioned drawing
Straight socket
SAIL-M12BG-4-4.0U
Pole scheme
M12 = A-coded
SAIL-M12BG-4-4.0U
Wiring diagram
SAIL-M12BG-4-4.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-4-4.0U

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 4 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 9457730400
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 18
Approvals General ordering data Dimensiones y pesos Environmental Product Compliance Datos técnicos del cable Dati tecnici generali Electrical properties Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 4 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457730400
Type
SAIL-M12BG-4-4.0U
GTIN (EAN)
4050118624731
Qty.
1 items

Dimensiones y pesos

Net weight
134 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Datos técnicos del cable

Acceleration
5 m/s²
Bending cycles
12 millions
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x diametro cavo
Bending radius, min., stationary
5 x diametro cavo
Cable length
4 m
Colour coding
marrone
bianco
blu
Nero
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Number of poles
4
Number of wires
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.1 mm + 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

Dati tecnici generali

Connection thread
M12
Contact surface
förgylld
Hlavní materiál krytu
PUR
Jmenovité napětí
250 V
Jmenovitý proud
4 A
jumpered
No
LED
No
Odpor izolace
108 Ω
Plugging cycles
≥ 100
Stupeň krytí
IP65
IP66
IP67
IP68
when screwed in
IP69
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Verschmutzungsgrad
3
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

Plug, left

Plug left
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
