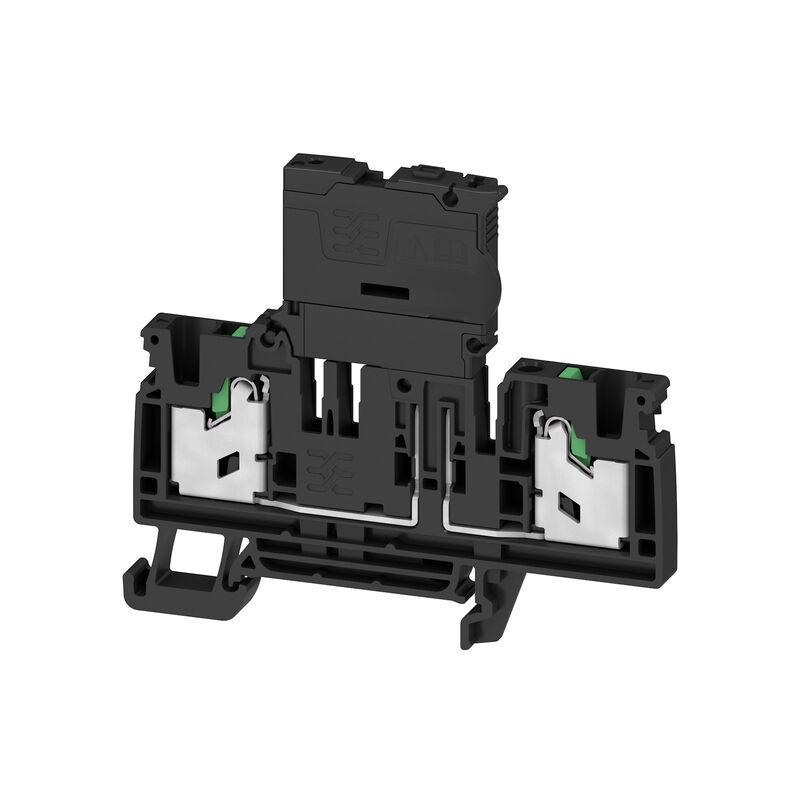

Fuse terminal, SNAP IN, black, 4 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35

Product ID 2941520000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 94 Verwante producten 239
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Fuse terminal, SNAP IN, black, 4 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35
Order No.
2941520000
Type
SFS 4 2C 100-250V BK
GTIN (EAN)
4099986710993
Qty.
50 items

Dimensions and weights

Depth
79,1 mm
Depth (inches)
3,114 inch
Height
67,7 mm
Height (inches)
2,665 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
20,502 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Isolierstoff
Wemid
Colour
black
Colour of operational elements
green
Brennbarkeitsklasse nach UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV24ATEX9191U
Certificate No. (IECEX)
IECEXTUR24.0071U
Max. voltage (ATEX)
250 V
Current (ATEX)
6.3 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
250 V
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
6 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

con espiga de sujeción
No
Offene Seiten
right
Snap-on
Yes
Telepítési útmutató
TS 35
Tipo di montaggio
TS 35
Type de fixation
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
SNAP IN

Conductors for clamping (rated connection)

6 mm²
Blade size
0.6 x 3.5 mm
Clamping range, min.
0,75 mm²
Connection cross-section, finely stranded, min.
0,75 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,75 mm²
Connection direction
top
Gauge to IEC 60947-1
A4
Number of connections
2
Stripping length
12 mm
Type of connection
SNAP IN
Type of connection 2
SNAP IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,75 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,75 mm²

General

Installation advice
TS 35
Mounting rail
TS 35
Standards
IEC 60947-7-3
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20

Rating data

Rated cross-section
4 mm²
Rated voltage
250 V
Rated voltage to adjoining terminal
500 V
Номинальное напряжение пост. тока
250 V
Nennstrom
6,3 A
Current at maximum wires
6,3 A
Standards
IEC 60947-7-3
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
1,02 mW
Stopień zanieczyszczenia
3
서지 전압 범주
III

UL rating data

Certificate No. (cURus)
E60693
Current size B (cURus)
10 A
Current size C (cURus)
10 A
Current size D (cURus)
10 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
150 V
Voltage size D (cURus)
300 V
Wire cross section max. (cURus)
10 AWG
Wire cross section min. (cURus)
20 AWG

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
