SL-SMT 5.00HC/03/90G 3.2SN BK BX

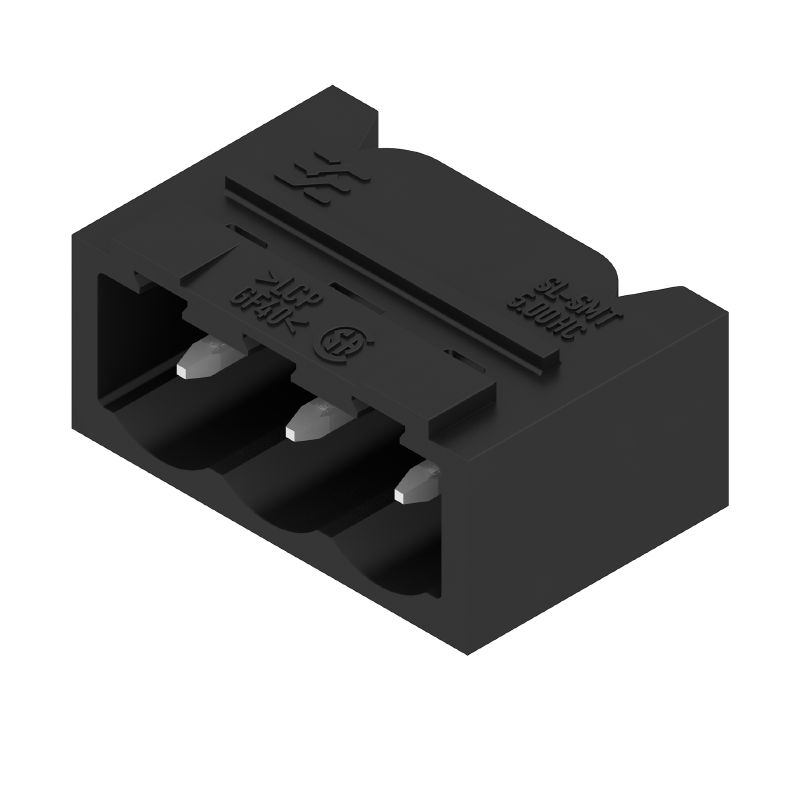

Product image
SL-SMT 5.00HC/03/90G 3.2SN BK BX

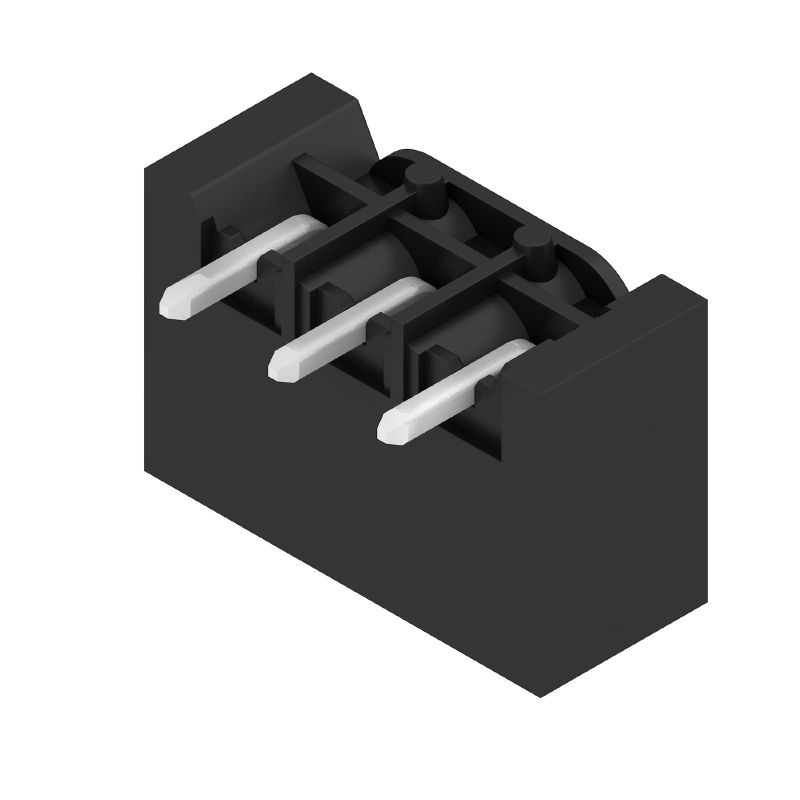

Product image
SL-SMT 5.00HC/03/90G 3.2SN BK BX
Dimensional drawing
SL-SMT 5.00HC/03/90G 3.2SN BK BX
Product benefits
Safe power transmission
Proven properties
SL-SMT 5.00HC/03/90G 3.2SN BK BX
Product benefits
Compliant with existing standards

SL-SMT 5.00HC/03/90G 3.2SN BK BX

PCB plug-in connector, male header, closed side, THT/THR solder connection, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box

Product ID 1840130000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 6 Is contradeel van 10 Verwante producten 26
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, THT/THR solder connection, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Best.-Nr.
1840130000
Art
SL-SMT 5.00HC/03/90G 3.2SN BK BX
GTIN (EAN)
4032248350872
Qty.
100 items
Product data
IEC: 400 V / 27.5 A
UL: 300 V / 18.5 A
Packaging
Box

Dimensions and weights

Depth
12 mm
Profondeur (pouces)
0,472 inch
Höhe
11,7 mm
Height (inches)
0,461 inch
Height of lowest version
8,5 mm
Width
18,2 mm
Width (inches)
0,717 inch
Peso neto
1,56 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Huella de carbono del producto
  • Cradle to gate:
    0,015 kg CO2 eq.

System specifications

Product family
OMNIMATE Signal - series BL/SL 5.00
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Outgoing elbow
90°
Pólusszám
3
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
+0.1 / -0.2 mm
Forrasztótüske méretei
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
솔더 구멍 직경(D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 в мм
10 mm
L1 in inches
0,394 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5,5 N

Material data

Insulating material
LCP GF
Farbe
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Superficie dei contatti
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Struktura warstwowa wtyku
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
27,5 A
Rated current, max. number of poles (Tu=20°C)
19 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
24 A
Rated current, max. number of poles (Tu=40°C)
16,5 A
Névleges feszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
400 V
Névleges feszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
320 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
250 V
Névleges lökőfeszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
4 kV
Névleges lökőfeszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1176845
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
15 A
Rated current (Use group D / CSA)
15 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Névleges feszültség (D felhasználási csoport / UL 1059)
300 V
Névleges áram (B felhasználási csoport/ UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
167 mm
VPE width
70 mm
VPE height
42 mm

Important note

IPC-Konformität
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
