SM-FO 27/18 MM SI
SM-FO 27/18 MM SI

SM-FO 27/18 MM SI

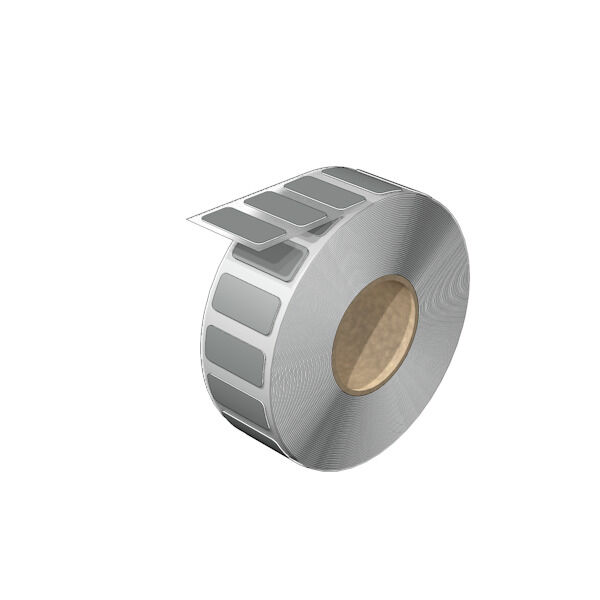

SwitchMark, Device markers, 18 x 27 mm, silver

Tuotteen tunnus 2621120000
Lataa tietosivu Product Downloads Engineering Support
Lisävarusteet 3 Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dane ogólne Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
SwitchMark, Device markers, 18 x 27 mm, silver
Číslo objednávky
2621120000
Type
SM-FO 27/18 MM SI
GTIN (EAN)
4050118625929
Qty.
500 items

Dimensions and weights

Depth
0,55 mm
Depth (inches)
0,022 inch
Height
18 mm
Height (inches)
0,709 inch
Width
27 mm
Width (inches)
1,063 inch
Net weight
0,1 g

Temperatures

Üzemi hőmérsékleti tartomány
-30...80 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dane ogólne

Adhesive
PE-foam with acrylic adhesive
Approval acc. to UL 969
Yes
Barevný
silver
Basic material
Polyester
Einsatztemperaturbereich
-30...80 °C
Gama de temperaturas de servicio, min.
-30 °C
Halogen
No
Impresora compatible
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Number per roll
500
Operating temperature range, max.
80 °C
Printed characters
without
Schriftfeldgröße
17.7 x 27 mm
UL 94 flammability rating
V-0
Version
halogen-free
Self-adhesive
Width
27 mm

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
