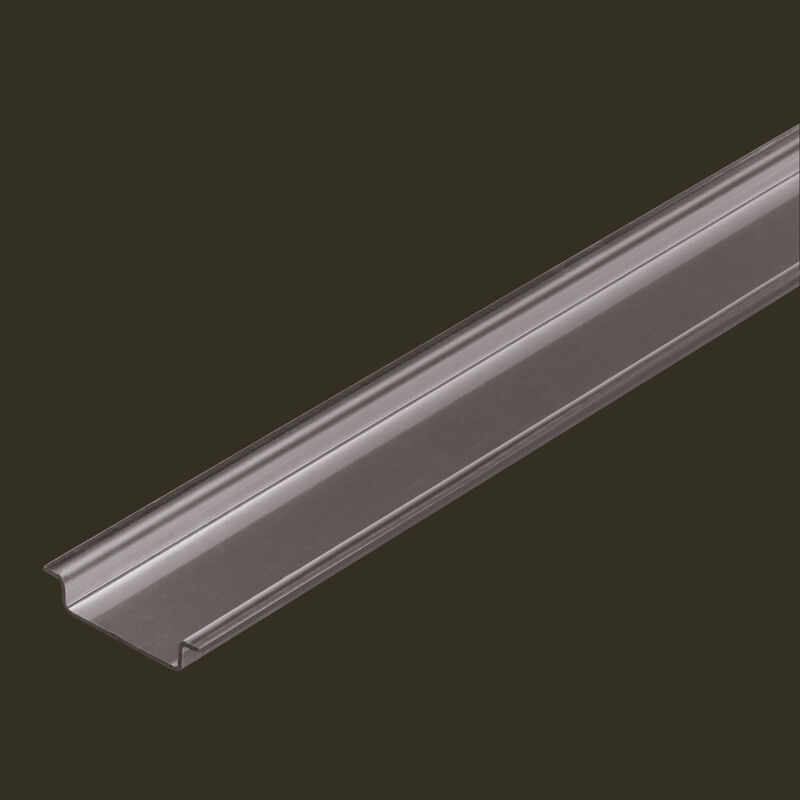

Product image
Similar to illustration

TS 35X7.5 2M/CRN 316L

Terminal rail, Accessories, Stainless steel 1.4404 (316L), untreated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm

Produkt ID 2716000000
Download datablad Engineering Support Product Downloads
Anvendte produkter 2
General ordering data Dimensions and weights Environmental Product Compliance Mounting rail Classifications Approvals

General ordering data

Version
Terminal rail, Accessories, Stainless steel 1.4404 (316L), untreated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
Order No.
2716000000
Type
TS 35X7.5 2M/CRN 316L
GTIN (EAN)
4050118769210
Qty.
40

Dimensions and weights

Depth
7,5  mm
Depth (inches)
0,295  inch
Height
35  mm
Height (inches)
1,378  inch
Width
2.000  mm
Width (inches)
78,74  inch
Net weight
340  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Mounting rail

Material
Stainless steel 1.4404 (316L)
Pre-punched mounting rail
No
Slit gap
  • min.:
    11 mm
  • nominal:
    11 mm
  • max.:
    11 mm
Slit length
  • min.:
    25 mm
  • nominal:
    25 mm
  • max.:
    25 mm
Slit width
  • min.:
    5,2 mm
  • nominal:
    5,2 mm
  • max.:
    5,2 mm
Spacing of holes, centre-to-centre
0  mm
Standards
IEC 60947-7-1
Surface finish
untreated
Thickness
1  mm

Classifications

ETIM 6.0
EC001285
ETIM 7.0
EC001285
ETIM 8.0
EC001285
ETIM 9.0
EC001285
ETIM 10.0
EC001285
ECLASS 9.0
27-40-06-02
ECLASS 9.1
27-40-06-02
ECLASS 10.0
27-40-06-02
ECLASS 11.0
27-40-06-02
ECLASS 12.0
27-40-06-02
ECLASS 13.0
27-40-06-02
ECLASS 14.0
27-40-06-02
ECLASS 15.0
27-40-06-02

Approvals

ROHS
Conform
