Eigenschappen
| Version | Socket (terminal), Plug-in depth: 11.5 mm, Depth: 51.3 mm |
| Order No. | 2710510000 |

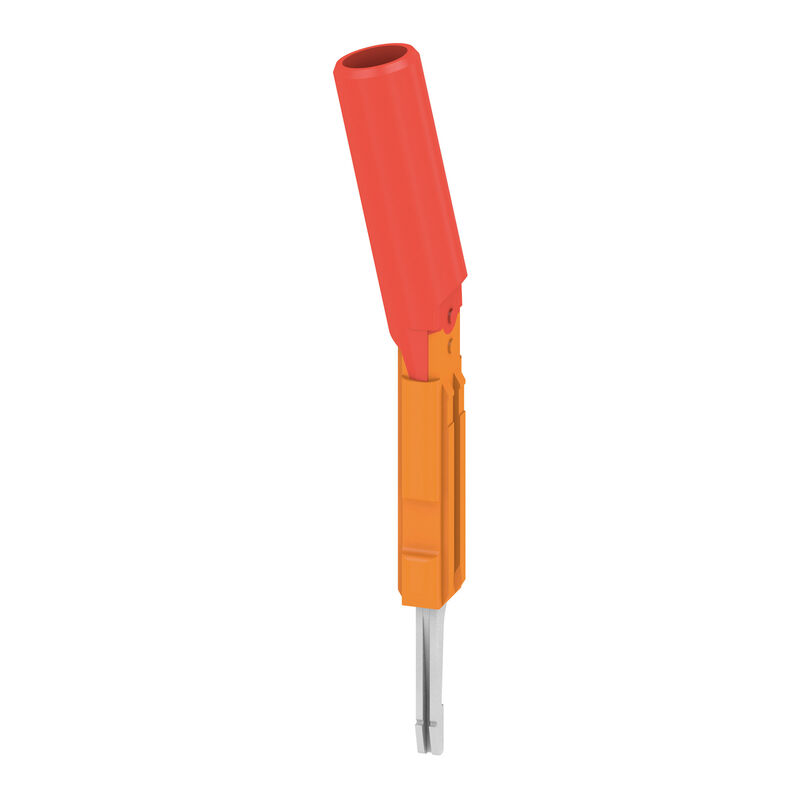

| Type | TS TTB 6 RD |
| GTIN (EAN) | 4050118881073 |
| Qty. | 48 items |
| Depth | 51,3 mm |
| Depth (inches) | 2,02 inch |
| Height | 9,4 mm |
| Height (inches) | 0,37 inch |
| Width | 6,3 mm |
| Width (inches) | 0,248 inch |
| Net weight | 2,372 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | red |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Plug |
| Plug-in depth | 11,5 mm |
| Operating temperature range, max. | 130 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205954) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2710510000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2710510000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ECLASS 15.0 | 27-25-03-90 |
| ROHS | Conform |
Is accessoire van
-
Product ID:2762290000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 500 V, 30 A, dark beige
-
Product ID:2762280000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 500 V, 30 A, dark beige
-
Product ID:2926550000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 30, 2
-
Product ID:2985580000VPE:50 items
Measuring transformer disconnect terminal, PUSH IN, 500, 30, 2
-
Product ID:2710090000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 30, 2
-
Product ID:2740040000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 30, 2
-
Product ID:2926540000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 30, 2
-
Product ID:2740050000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 30, 2
-
Product ID:2740060000VPE:50 items
Measuring transformer disconnect terminal, Screw connection, 30, 2
-
-
Product ID:2740010000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 500 V, 30 A, blue
-
Product ID:2740030000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 50 V, 30 A, black
-
Product ID:2985590000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 30 A, brown
-
Product ID:2740020000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 500 V, 30 A, Light Grey
-
Product ID:2710070000VPE:50 items
Test-disconnect terminal, PUSH IN, 6 mm², 500 V, 30 A, dark beige
-
Product ID:2710110000VPE:50 items
Test-disconnect terminal, Hybrid connection, 6 mm², 500 V, 30 A, dark beige
-
-
Product ID:2710100000VPE:50 items
PE terminal, Screw connection, Green/yellow, 6 mm², 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
