VG M25 EXI 14-18 SI7J G4

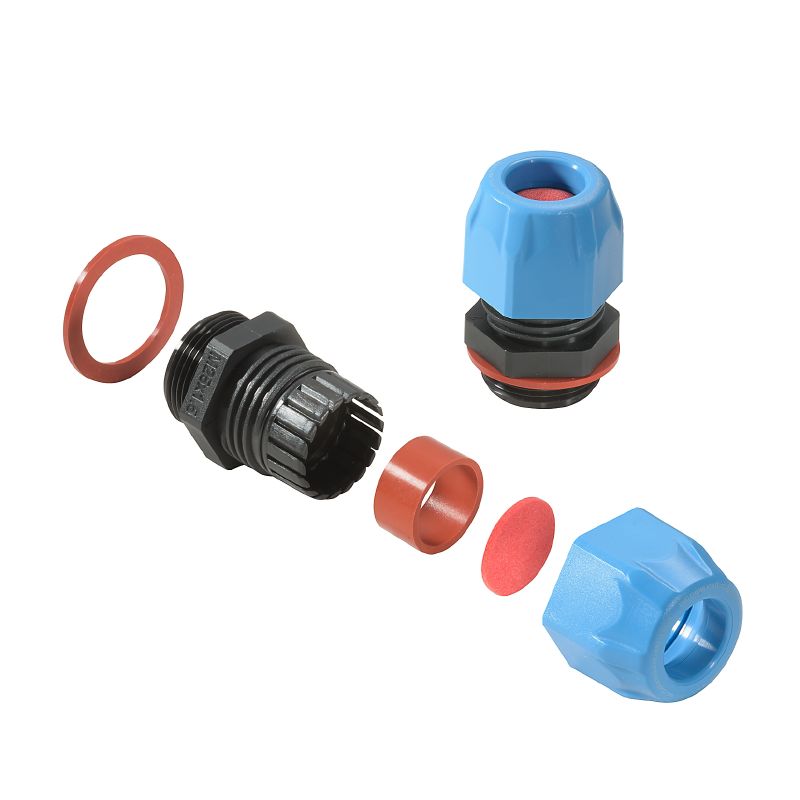

Similar to illustration
Abbildung ähnlich

VG M25 EXI 14-18 SI7J G4

VG Exi 7J (Ex plastic cable gland 7J Exi), Cable glands, straight, M 25, 10 mm, OD min. 14 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Product ID 2722420000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 1 Verwante producten 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Certificate numbers cable gland General information Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
Approvals
CE; EAC; ATEX; IECEX; INMETRO
ROHS
Conform

General ordering data

Version
VG Exi 7J (Ex plastic cable gland 7J Exi), Cable glands, straight, M 25, 10 mm, OD min. 14 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
Order No.
2722420000
Type
VG M25 EXI 14-18 SI7J G4
GTIN (EAN)
4050118821659
Qty.
25 items

Dimensions and weights

Height
41,6 mm
Height (inches)
1,638 inch
Length
35 mm
Length (inches)
1,378 inch
Net weight
24 g

Temperatures

Operating temperature
-60 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Certificate numbers cable gland

Approval conditions
ATEX
IECEX
Certificate no. cable gland (ATEX)
IMQ 13 ATEX 010 X
Certificate no. cable gland (IECEx)
IECEx IMQ 13.0003X
Certifikatnummer för kabelförskruvning (INMETRO)
DNV 18.0150 X/01
Обозначение
Ex eb llC Gb
Ex tb IIIC Db IP66/68

General information

AF size 1
33 mm
AF size 2
33 mm
Basic material
Polyamide 6
Cable gland
metric
Coppia di serraggio dado esagonale cieco, min.
7 Nm
Csatlakozóadapter nyomatéka, min.
7 Nm
Explosion protection type
Intrinsically safe Ex i
External thread
M 25
Halogen
No
Impact resistance
7 joules in acc. with IEC 60079-0
Length of thread
10 mm
Operating temperature range, max.
70 °C
Operating temperature range, min.
-60 °C
Outer cable diameter, max.
18 mm
Outer cable diameter, min.
14 mm
Par de apriete pieza de conexión, máx.
8 Nm
Par de apriete tuerca de sombrerete, máx.
8 Nm
Pitch of thread
1,5 mm
Protection degree
IP54
IP66
IP67
IP68 - 5 bar (30 min.)
Protection degree with GWDR
IP54
IP66
IP67
IP68 - 5 bar (30 min.)
Seal insert
Silicone
Sealing
Silicone
Standards
IEC 60079-0
EN 60079-0
IEC 60079-7
EN 60079-7
EN 60079-31
IEC 60079-31
Tightening torque
5,5 Nm
UL 94 flammability rating
HB
Wytyczne dotyczące montażu
See assembly instructions

Classifications

ETIM 8.0
EC000441
ETIM 9.0
EC000441
ETIM 10.0
EC000441
ECLASS 14.0
27-14-08-02
ECLASS 15.0
27-14-08-02
