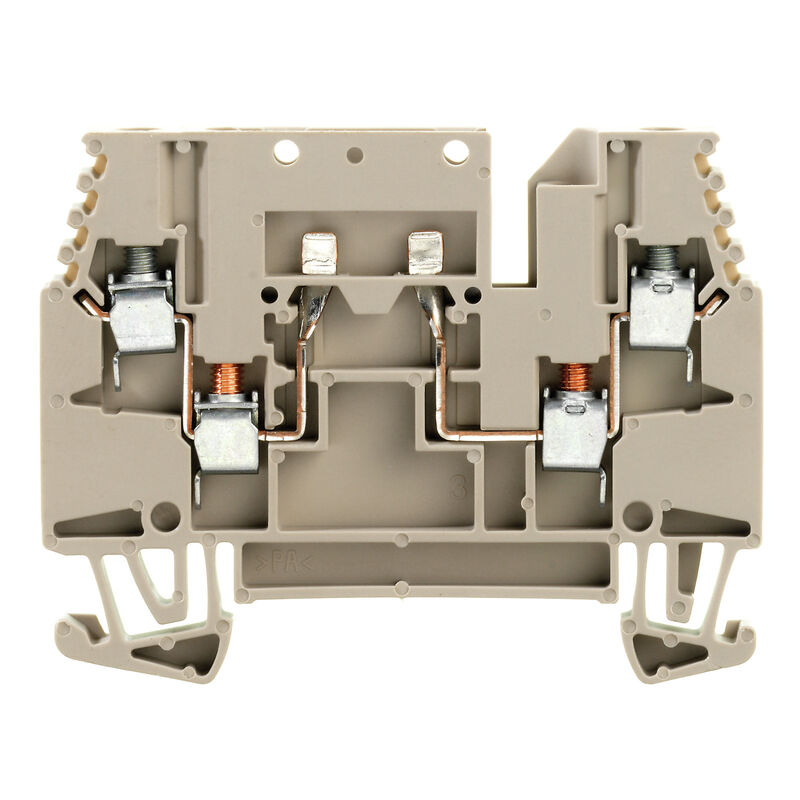

WTR 2.5/ZZ O.TNHE

WTR 2.5/ZZ O.TNHE

Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1

Ürün No. 1774670000
Konfigüratörde aç
Veri sayfasını indir Инженерная поддержка Загрузка продуктов
Aksesuarlar 46 İlgili ürünler 162
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Зажимаемые провода (расчетное соединение) Dimensions General Rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 16 A, 400 V, Number of connections: 4, Number of levels: 1
Order No.
1774670000
Type
WTR 2.5/ZZ O.TNHE
GTIN (EAN)
4032248152643
Ilość
50 adet

Dimensions and weights

Depth
46,5 mm
Depth (inches)
1,831 inch
Depth including DIN rail
47 mm
Height
60 mm
Height (inches)
2,362 inch
Width
5,1 mm
Width (inches)
0,201 inch
순중량
12,25 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
c6099607-b1cd-4fc8-8f5b-8c2defa73093

Material data

Basic material
Wemid
Colour
dark beige
Klasifikace hořlavosti UL 94
V-0

System specifications

Version
Twin connection
Screw connection
for plug-in cross-connector
One end without connector
Tapa final obligatoria
Yes
Liczba potencjałów
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
Úrovně propojené interně
No
Conexión PE
No
Mounting rail
TS 35
Función N
No
PE 기능
No
PEN funkció
No

Additional technical data

Hasonló kapcsok száma
1
Lati aperti
right
장착 유형
Snap-on
폭발 테스트 버전
No

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Зажимаемые провода (расчетное соединение)

Skruvanslutning
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,13 mm²
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0,13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
7 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Torque level with DMS electric screwdriver
2
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

Dimensions

TS 35 offset
32 mm

General

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Section nominale
2,5 mm²
Tensión nominal
400 V
Tension nominale DC
400 V
Nominal current
16 A
Corriente en conductor máximo
16 A
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Sobretensión de choque nominal
6 kV
Puissance dissipée conformément à CEI 60947-7-x
0,77 W
Pollution severity
3

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
