ZAP/TW 1 GR

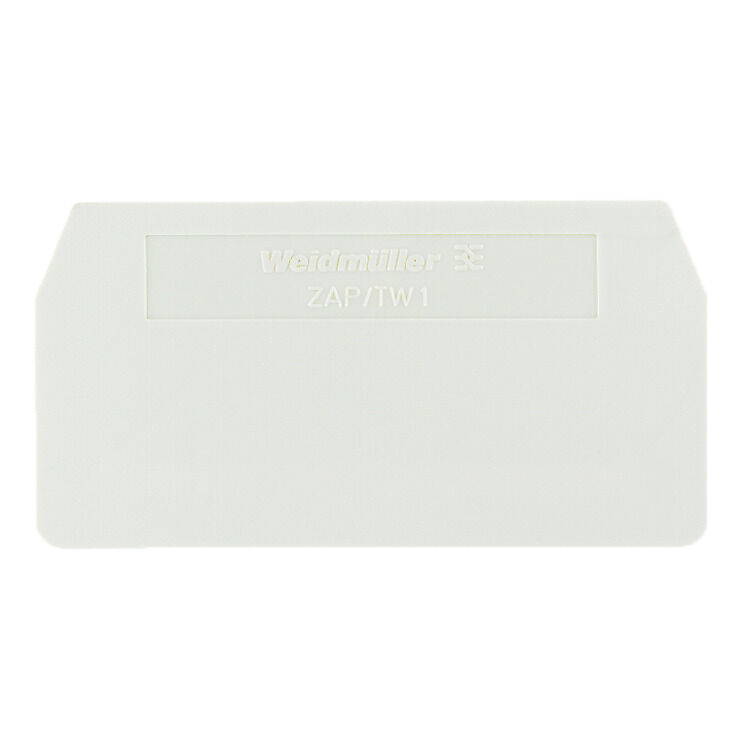

Product image

ZAP/TW 1 GR

Z-series, End plate, Partition plate

Product ID 1683710000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 18 Verwante producten 79
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
Z-series, End plate, Partition plate
Order No.
1683710000
Type
ZAP/TW 1 GR
GTIN (EAN)
4008190476793
Qty.
50  items

Dimensions and weights

Depth
30,5  mm
Depth (inches)
1,201  inch
Height
59,5  mm
Height (inches)
2,343  inch
Width
2  mm
Width (inches)
0,079  inch
Net weight
2,85  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50  °C
Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.037 kg CO2eq.

Material data

Basic material
Wemid
Colour
grey
UL 94 flammability rating
V-0

System specifications

Version
End and intermediate plate

Additional technical data

Installation advice
Direct mounting
Snap-on
Yes

General

Installation advice
Direct mounting

Product images

Classifications

ETIM 6.0
EC000886
ETIM 7.0
EC000886
ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 9.0
27-14-11-92
ECLASS 9.1
27-14-11-33
ECLASS 10.0
27-14-11-92
ECLASS 11.0
27-14-11-92
ECLASS 12.0
27-14-11-92
ECLASS 13.0
27-25-03-01
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
