ZPE 2.5-2/4AN
Product image

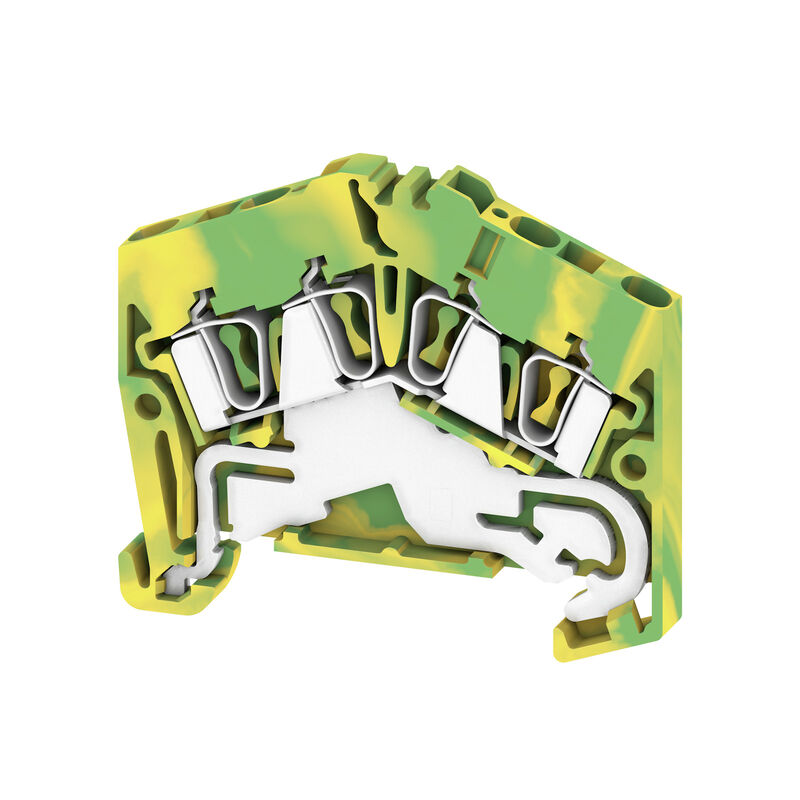

ZPE 2.5-2/4AN

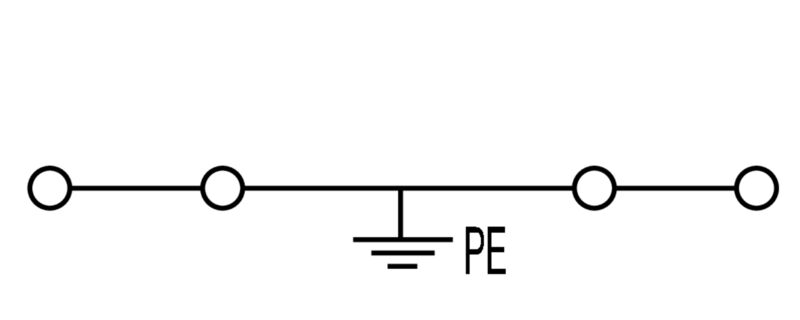

ZPE 2.5-2/4AN

Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow

Produkt ID 1706100000
Download datablad Engineering Support Product Downloads
Tilbehør 22 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General PE rating data Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319231/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319235/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319255/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow
Order No.
1706100000
Type
ZPE 2.5-2/4AN
GTIN (EAN)
4008190915445
Qty.
50  Styk

Dimensions and weights

Depth
43,5  mm
Depth (inches)
1,713  inch
Depth including DIN rail
44  mm
Height
50,5  mm
Height (inches)
1,988  inch
Width
5,1  mm
Width (inches)
0,201  inch
Net weight
11,98  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50  °C
Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
Green/yellow
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO16ATEX1808U
Certificate No. (IECEX)
IECEXULD16.0036U
Wire cross section max. (ATEX)
4 mm²
Wire cross section max. (IECEX)
4 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Version
Tension-clamp connection
With PE connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
PE function
Yes
PEN function
No

Additional technical data

Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Tension-clamp connection

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4  mm²
Clamping range, min.
0,13  mm²
Connection cross-section, finely stranded, min.
0,13  mm²
Connection cross-section, stranded, max.
4  mm²
Connection cross-section, stranded, min.
0,13  mm²
Connection direction
Inclined / angled
Gauge to IEC 60947-1
A2
Number of connections
4
Stripping length
10  mm
Type of connection
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
2,5  mm²
Wire connection cross section, finely stranded, min.
0,13  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13  mm²
Wire connection cross-section, solid core, max.
4  mm²
Wire connection cross-section, solid core, min.
0,13  mm²

CSA rating data

Certificate No. (CSA)
200039-1194786
Wire cross section max. (CSA)
14 AWG
Wire cross section min. (CSA)
26 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-2
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

PE rating data

Rated short-time current
300 A (2.5 mm²)
PEN function
No

Rating data

Rated cross-section
2,5  mm²
Rated voltage to adjoining terminal
800  V
Rated DC voltage
800  V
Standards
IEC 60947-7-2
Volume resistance according to IEC 60947-7-x
1,33  mΩ
Rated impulse withstand voltage to adjacent terminal
8  kV
Power loss in accordance with IEC 60947-7-x
0,77  W
Pollution severity
3

UL rating data

Certificate No. (cURus)
E60693

Classifications

ETIM 6.0
EC000901
ETIM 7.0
EC000901
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 9.0
27-14-11-41
ECLASS 9.1
27-14-11-41
ECLASS 10.0
27-14-11-41
ECLASS 11.0
27-14-11-41
ECLASS 12.0
27-14-11-41
ECLASS 13.0
27-25-01-03
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
