HDC 06B ALU EXI
HDC 06B ALU EXI

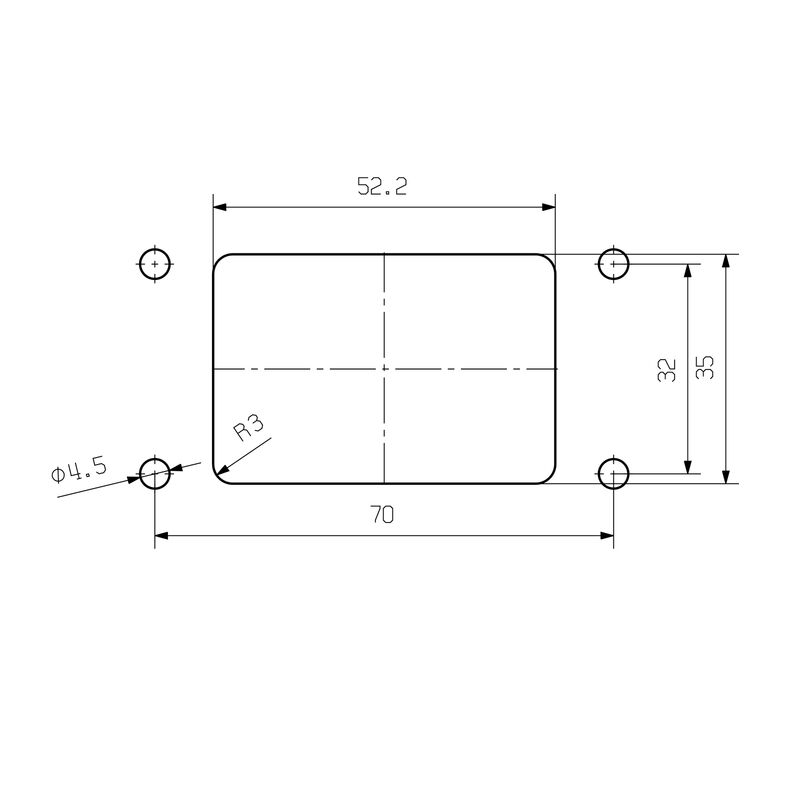

mounting cutout

HDC 06B ALU EXI

HDC enclosures, Installation size: 3, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, End-locking clamp not replaceable, Standard, Size of cable entries: none

Item No. 3001300000
Download data sheet Engineering Support Product Downloads
Accessories 5 Is accessory of 2 Related products 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 3, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, End-locking clamp not replaceable, Standard, Size of cable entries: none
Nr zam.
3001300000
Typ
HDC 06B ALU EXI
GTIN (EAN)
4099986902381
Förp.
1 items

Dimensions and weights

깊이
80 mm
Depth (inches)
3.15 inch
Wysokość
29 mm
Height (inches)
1.142 inch
Width
45 mm
Width (inches)
1.772 inch
Wymiar mocowania wysokość
32 mm
Mounting dimension - width
70 mm
Net weight
96.8 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f

Dimensions

Cable entry
No
Height of base B1
5.5 mm
Height of housing B
29 mm
Hole pitch length A2
70 mm
Total length housing
60 mm
Width base C1
47 mm
Width housing C
43 mm

General data

Protection degree
IP65
in plugged condition
Surface finish
Powder coating
UL 94 flammability rating
V-0
Explosion protection type
II 2G Ex ib IIC T6 Gb

Version

PUSH IN
BG
3
Cable entry
No
Clamp version
End-locking clamp
Colour (RAL)
RAL 7035
Cover
without cover
Design
Standard
Design of housing
Bulkhead housing
Design of locking system
End-locking clamp, lower side
End-locking clamp not replaceable
Installation size
3
Number of cable entry sideways
0
Number of cable glands
0
Sealing
NBR
Size of cable entries
none
Suitable for ModuPlug®
Yes
Tightening torque
1.2 Nm
Top part/bottom part/lid
lower part
Type
Bulkhead (feed-through)

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
