UR20-8AI-I-16-HD
UR20-8AI-I-16-HD

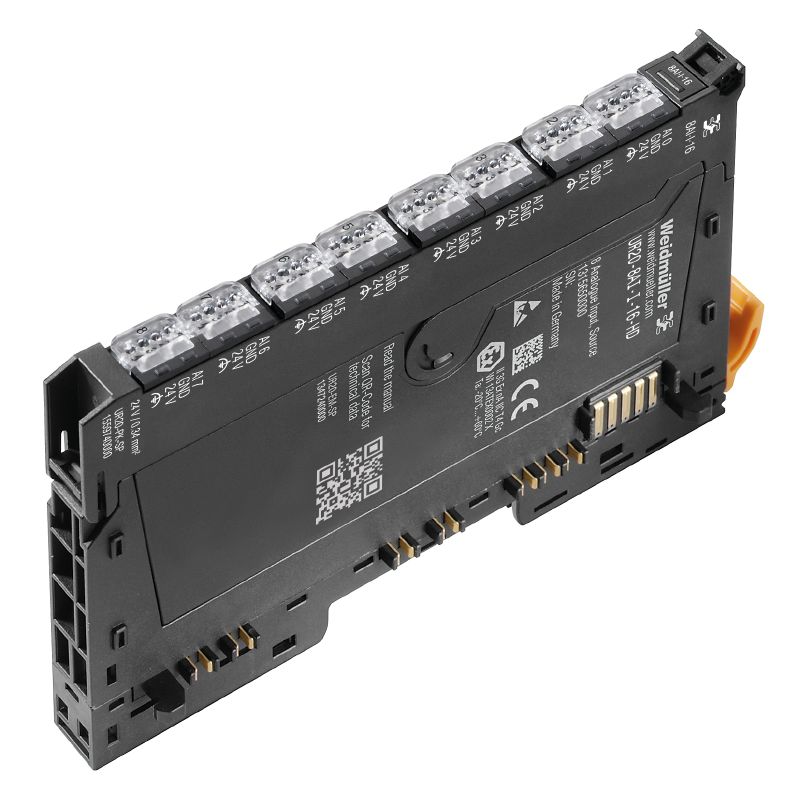

Product image
UR20-8AI-I-16-HD
Block diagram
UR20-8AI-I-16-HD
Connection diagram
UR20-8AI-I-16-HD
Explanation of abbreviations

UR20-8AI-I-16-HD

Remote I/O module, IP20, Analog signals, Input, 8-channel

Ürün No. 1315650000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Yazılım desteği Ürün İndirmleri
Aksesuarlar 16 Yedek parçalar 2 Münferit parçalar 2 İlgili ürünler 13
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance analóg bemenetek Connection data Dati generali Power supply System data Important note Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
N.º de certificado (cULusEX)
E223527

General ordering data

Verze
Remote I/O module, IP20, Analog signals, Input, 8-channel
Číslo objednávky
1315650000
Typ
UR20-8AI-I-16-HD
GTIN (EAN)
4050118118834
Množství
1 adet

Dimensions and weights

Depth
76 mm
Depth (inches)
2,992 inch
Výška
120 mm
Height (inches)
4,724 inch
Šířka
11,5 mm
Width (inches)
0,453 inch
Rozměr při montáži – výška
128 mm
Net weight
74 g

Temperatures

Skladovací teplota
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    7,689 kg CO2 eq.

analóg bemenetek

Accuracy
0,1% FSR
Conversion time
1 ms
Individual channel diagnosis
No
Input value
Current I (0…20 mA, 4…20 mA)
Internal resistance I
50 Ω
Module diagnosis
Yes
Number analogue inputs
8
Resolution
16 Bit
Reverse polarity protection
Yes
Sensor connection
2-wire
3-wire
3-wire + FE
Sensor supply
Yes
Short-circuit-proof
Yes

Connection data

Wire connection cross section, finely stranded, max.
0,35 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 22
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
0,35 mm²
Wire cross-section, solid, max. (AWG)
AWG 22
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

Dati generali

Air humidity (operation)
10% ~ 95%, 비응축(DIN EN 61131-2 준수)
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
От 10 до 95 %, без образования конденсата по стандарту DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (höjd ≤ 2 000 m) enligt DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from IIN (the respective power segment)
20 mA + load
Current consumption from Isys, typ.
8 mA
Reverse polarity protection
Yes
Supply voltage
24 V DC +20 %/ -15 %
via the system bus

System data

Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Analogue input module
Process data
16 Byte
Transmission speed of system bus, max.
48 MBit/s

Important note

Product information
Note: Please order connector (1469340000) separately

Classifications

ETIM 8.0
EC001596
ETIM 9.0
EC001596
ETIM 10.0
EC001596
ECLASS 14.0
27-24-26-01
ECLASS 15.0
27-24-26-01
