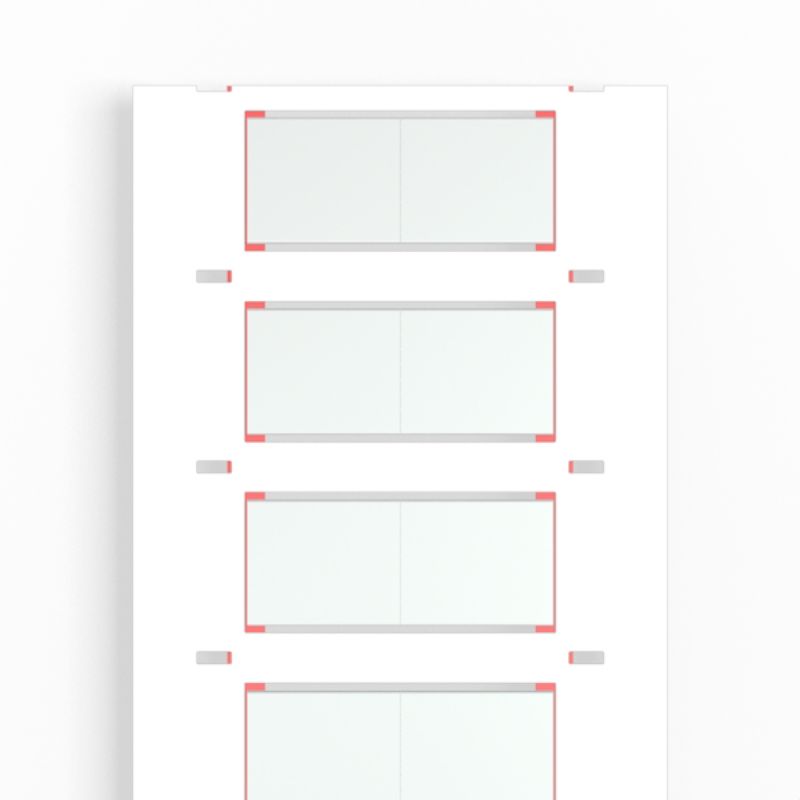

Conductor and cable markers, 6.4 - 12.7 mm, 25.4 x 20.9 mm, white

Ürün No. 2438140000
Veri sayfasını indir Product Downloads Engineering Support
Aksesuarlar 3 İlgili ürünler 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 6.4 - 12.7 mm, 25.4 x 20.9 mm, white
Order No.
2438140000
Type
HS-HF 6.4-12.7/25 MM W
GTIN (EAN)
4050118461237
Qty.
1.000  adet

Dimensions and weights

Depth
0,77  mm
Depth (inches)
0,03  inch
Height
25,4  mm
Height (inches)
1  inch
Width
20,9  mm
Width (inches)
0,823  inch
Net weight
0,6  g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
No
Material
Polyolefine
Number per roll
1000
Operating temperature range
-55...105 °C
Operating temperature range, max.
105  °C
Operating temperature range, min.
-55  °C
Printed characters
without
Type of printing
neutral
Width
20,9  mm

Conductor and cable markers

Conductor cross-section, max.
35  mm²
Conductor cross-section, min.
6  mm²
Conductor O.D.
6.4 - 12.7 mm
Conductor O.D., max.
12,7  mm
Conductor O.D., min.
6,4  mm
Cross-section for connected wire
6 - 35 mm²
Halogen
No
Rate of shrinkage
2:1
Recommended shrinking temperature
90  °C

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
