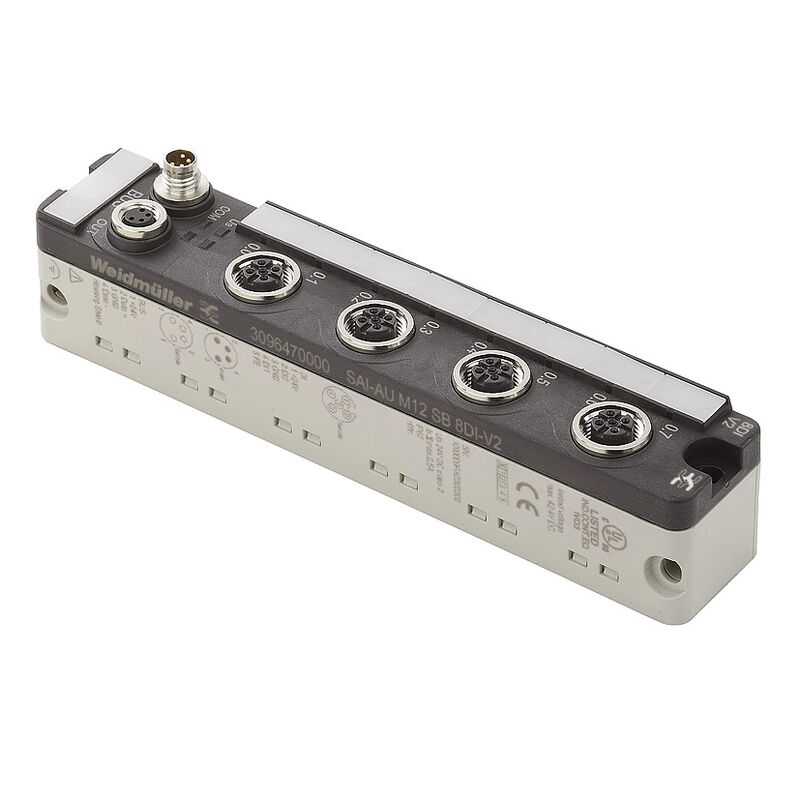

SAI-AU M12 SB 8DI-V2

SAI-AU M12 SB 8DI-V2

Bu ürün henüz mevcut değil.

Ürün No. 3096470000
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 6
General ordering data Dimensions and weights Connections Digital inputs General data Supply voltage Classifications

General ordering data

Order No.
3096470000
Type
SAI-AU M12 SB 8DI-V2
GTIN (EAN)
4099987124713
Qty.
ST

Dimensions and weights

Depth
155 mm
Depth (inches)
6,102 inch
Height
32 mm
Height (inches)
1,26 inch
Width
30 mm
Width (inches)
1,181 inch
Length
155 mm
Length (inches)
6,102 inch
Net weight
9.999 g

Connections

I/O connections
8 x M8 socket 3-pole
Supply voltage (AUX-IN)
1x M12 plug 5-pole
A-coded

Digital inputs

Input filter
1 ms
3 ms
5 ms
10 ms
configurable
Input voltage, high
>15 V in accordance with EN 61131-2 Type 1
Input voltage, low
<5 V in accordance with EN 61131-2 Type 1
Permitted input voltage
-30 V to +30 V (protected against polarity reversal)

General data

IP67
Housing main material
Pocan
PBT

Supply voltage

Operating voltage
24 V

Classifications

ETIM 8.0
EC001599
ETIM 9.0
EC001599
ETIM 10.0
EC001599
ECLASS 14.0
27-24-26-04
ECLASS 15.0
27-24-26-04
