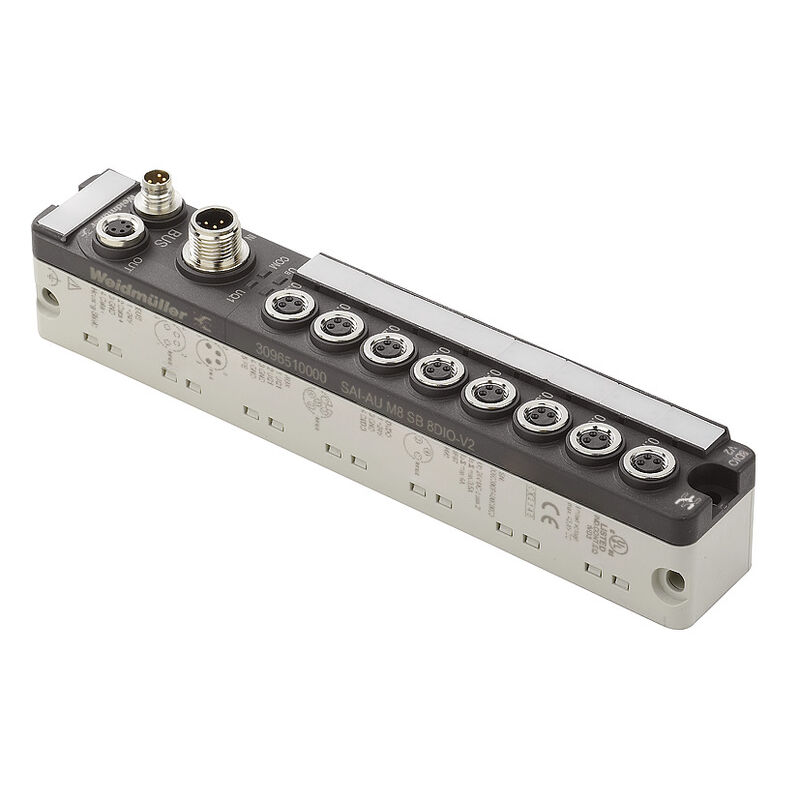

SAI-AU M8 SB 8DIO-V2

SAI-AU M8 SB 8DIO-V2

Bu ürün henüz mevcut değil.

Ürün No. 3096510000
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 6
General ordering data Dimensions and weights Connections Digital inputs Digital outputs General data Supply voltage Classifications

General ordering data

Order No.
3096510000
Type
SAI-AU M8 SB 8DIO-V2
GTIN (EAN)
4099987124751
Qty.
ST

Dimensions and weights

Depth
180 mm
Depth (inches)
7,087 inch
Height
32 mm
Height (inches)
1,26 inch
Width
30 mm
Width (inches)
1,181 inch
Length
180 mm
Length (inches)
7,087 inch
Net weight
999 g

Connections

I/O connections
8 x M8 socket 3-pole
Supply voltage (AUX-IN)
1 x M8 plug 4-pole
A-coded
1x M12 female 5-pole

Digital inputs

Input current, high
2 mA to 15 mA in accordance with EN 61131-2 Type 1
Input current, low
<15 mA in accordance with EN 61131-2 Type 1
Input voltage, high
>15 V in accordance with EN 61131-2 Type 1
Input voltage, low
<5 V in accordance with EN 61131-2 Type 1
Permitted input voltage
-30 V to +30 V (protected against polarity reversal)
Separation of potentials to module electronics
none
Short-circuit protection
Yes

Digital outputs

max. current-carrying capacity per output signal
0.5 A
Max. total current outputs
4 A
Short-circuit proof
Yes, cut-off for short circuit and error message
Short-circuit protection
Yes
Switching frequency, inductive load
max. 1 Hz
Switching frequency, lamp load
max. 8 Hz
Switching frequency, resistive load
max. 100 Hz

General data

IP67
Certificate
CE
cULus
Housing main material
Pocan
PBT

Supply voltage

Contact load
Per PIN max. 4 A
Max. total current module
8 A

Classifications

ETIM 8.0
EC001599
ETIM 9.0
EC001599
ETIM 10.0
EC001599
ECLASS 14.0
27-24-26-04
ECLASS 15.0
27-24-26-04
