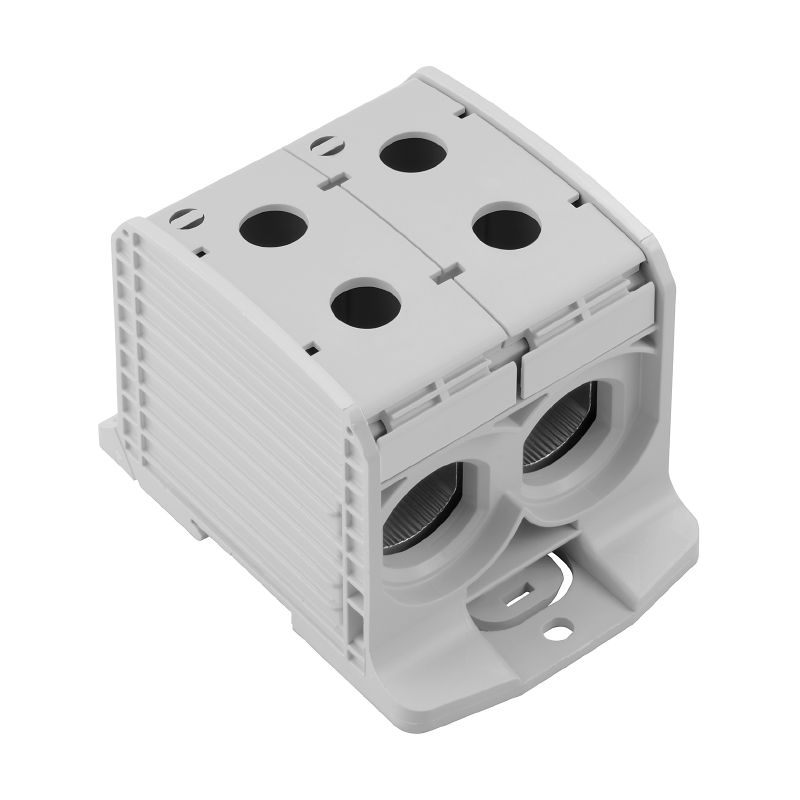

Potential distributor terminal, Screw connection, Light Grey, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1

Ürün No. 2502900000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 6 İlgili ürünler 54
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

General ordering data

Verze
Potential distributor terminal, Screw connection, Light Grey, 300 mm², 520 A, 1000 V, Number of connections: 4, Number of levels: 1
Číslo objednávky
2502900000
Type
WPD 233 2X300/2X300 GY
GTIN (EAN)
4050118516722
Qty.
1 adet

Dimensions and weights

Depth
83,5 mm
Depth (inches)
3,287 inch
Height
118 mm
Height (inches)
4,646 inch
Width
82,6 mm
Width (inches)
3,252 inch
Net weight
628 g

Temperatures

Storage temperature
-25 °C...55 °C
Temperatura ambiente
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
Light Grey
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

인증 번호(ATEX)
CNEX18ATEX0016U
Сертификат № (IECEX)
IECEXCNEX18.0010U
Max. voltage (ATEX)
1100 V
Corrente (ATEX)
520 A
Wire cross section max. (ATEX)
300 mm²
최대 전압(IECEX)
1100 V
Current (IECEX)
520 A

System specifications

Version
Screw connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
PE function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Tipo di collegamento, ulteriore collegamento
Screw connection

Conductors for clamping (rated connection)

300 mm²
Clamping range, min.
35 mm²
Connection cross-section, stranded, max.
300 mm²
Connection cross-section, stranded, min.
35 mm²
Connection direction
on side
Number of connections
4
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
kcmil 500
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section, finely stranded, max.
300 mm²
Wire connection cross section, finely stranded, min.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
240 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
35 mm²
Wire connection cross-section, solid core, max.
300 mm²
Wire connection cross-section, solid core, min.
35 mm²

General

Guida equipaggiata
TS 35
Nombre de pôles
1
Norme
IEC 60947-7-1
UL 1059
CSA
Sección de conexión del conductor AWG, máx.
kcmil 500
Sezione di collegamento cavo AWG, min.
AWG 16
Telepítési útmutató
Terminal rail / mounting plate

Rating data

Rated cross-section
300 mm²
Rated voltage
1 000 V
Rated AC voltage
1 000 V
Rated DC voltage
1 000 V
Nominal current
520 A
Current at maximum wires
520 A
Standards
IEC 60947-7-1
UL 1059
CSA
Volume resistance according to IEC 60947-7-x
0,06 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
16,64 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693

Important note

Información de producto
You will find additional information in the downloadsection of the onlinecatalogue

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
