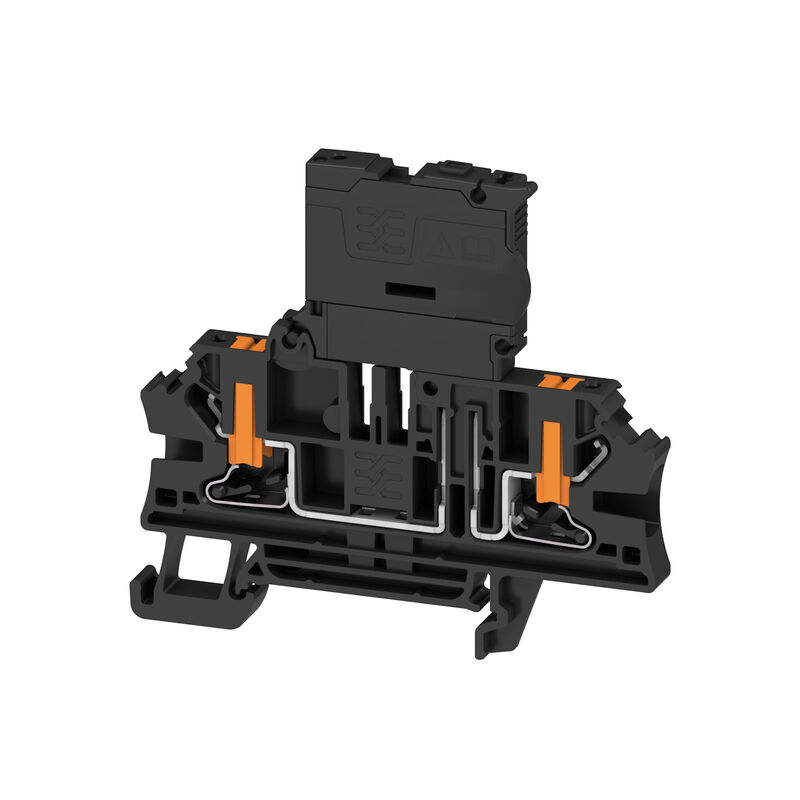

Fuse terminal, PUSH IN, black, 4 mm², 6.3 A, 36 V, Number of connections: 2, Number of levels: 1, TS 35

Produkt ID 2898790000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 73 Anvendte produkter 228
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Fuse terminals General Rating data UL rating data Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E0693VOL1SEC137

General ordering data

Versione
Fuse terminal, PUSH IN, black, 4 mm², 6.3 A, 36 V, Number of connections: 2, Number of levels: 1, TS 35
N. d’ordine
2898790000
Tipo
ALFS 4 2C 10-36V BK
GTIN (EAN)
4064675904397
Qty.
50 Styk

Dimensions and weights

Profondità
68 mm
Depth (inches)
2,677 inch
Posizione verticale
73,5 mm
Height (inches)
2,894 inch
Larghezza
6,1 mm
Width (inches)
0,24 inch
Net weight
17,76 g

Temperatures

Temperatura di magazzinaggio
-25 °C...55 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
black
Colour of operational elements
orange
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV24ATEX9181U
Certificate No. (IECEX)
IEXEXTUR24.0066U
Max. voltage (ATEX)
36 V
Current (ATEX)
6.3 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
36 A
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
6 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Open sides
right
Snap-on
Yes
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

Clamping range, max.
6 mm²
Connection cross-section, finely stranded, min.
0,14 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,14 mm²
Csatlakozás típusa
PUSH IN
Csatlakozás típusa 2
PUSH IN
Csatlakozások száma
2
Gauge to IEC 60947-1
A4
Ledararea, fintrådig med ändhylsa DIN 46228/1, max.
4 mm²
Longueur de dénudage
12 mm
przekrój przyłącza przewodu AWG, min.
AWG 26
Przekrój przyłącza przewodu, cienki przewód wielodrutowy z tulejkami kablowymi DIN 46228/4, maks.
4 mm²
Przekrój przyłącza przewodu, cienki przewód wielodrutowy z tulejkami kablowymi DIN 46228/4, min.
0,14 mm²
Sens de raccordement
on side
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,14 mm²
Диапазон зажима, мин.
0,14 mm²
Размер лезвия
0.6 x 3.5 mm
Сечение соединения проводов, тонкий скрученный с кабельными наконечниками DIN 46228/1, мин.
0,14 mm²

CSA rating data

Certificate No. (CSA)
227442-80177078
Current size B (CSA)
10 A
Current size C (CSA)
10 A
Current size D (CSA)
10 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
150 V
Voltage size D (CSA)
300 V
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
24 AWG

Fuse terminals

Displej
LED
Inserto portafusibile
G-Si. 5 x 20
Operating voltage, max.
36 V
Portafusibile (portainserto)
Pivoting
Tipo di tensione per l'indicatore
AC/DC

General

Mounting rail
TS 35
Standards
IEC 60947-7-3
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
4 mm²
Rated voltage
36 V
Rated voltage to adjoining terminal
500 V
Rated DC voltage
36 V
Nominal current
6,3 A
Current at maximum wires
6,3 A
Standards
IEC 60947-7-3
Rated impulse withstand voltage
4 kV
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E0693VOL1SEC137
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring min. (cURus)
24 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring min. (cURus)
24 AWG
Current size B (cURus)
10 A
Current size C (cURus)
10 A
Current size D (cURus)
10 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
150 V
Voltage size D (cURus)
300 V

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
