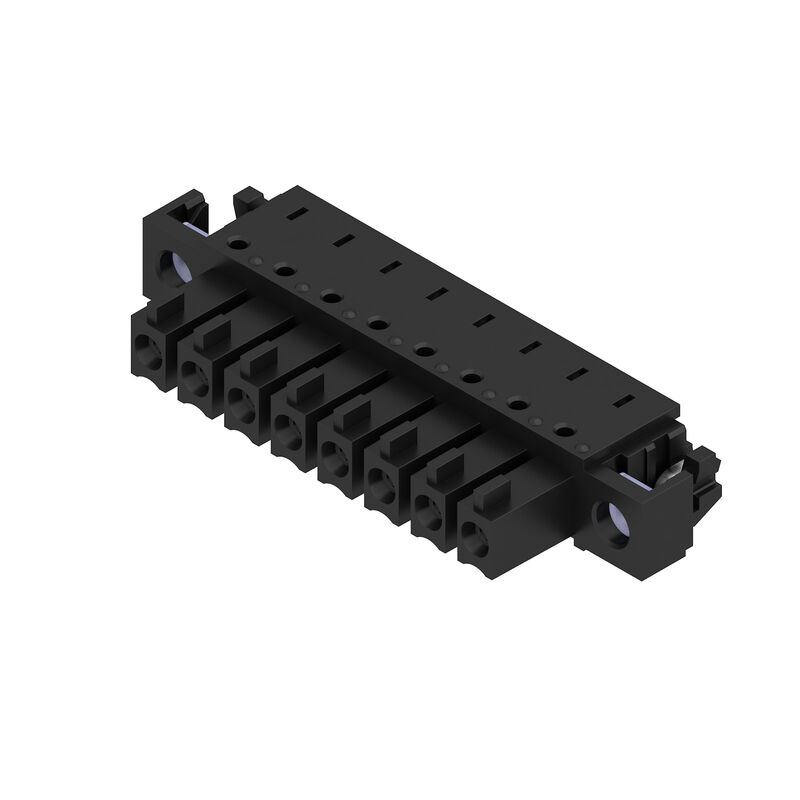

BCL-SMT 3.81/90LFI

The inverted BCL-SMT socket block for the PCB offers three significant advantages:
  • The BCL-SMT offers touch-safe security on the PCB which makes it ideal for live, current-carrying outputs.
  • The BCL-SMT widens the range of applications with board-to-board connections between component assemblies.
  • The BCL-SMT is reflow-compatible and can be seamlessly integrated into the automatic assembly and soldering process.

Two outlet directions give you a choice of position and thus more design flexibility.
  • 180° standing
  • 90° recumbent

Two housing variants are available for the BCL-SMT:
  • Without flange
  • With inverted solder flange ("LFI", with nut)
    • Fastened to PCB without additional screw
    • Fastened with screw to the SCZ FI

Weidmüller's 3.81-mm-pitch (0.15 inch) plug-in connectors are compatible with the layouts of customary connectors and offer space for labelling and coding.
BCL-SMT 3.81/90LFI
  1. BCL-SMT 3.81/90

  2. BCL-SMT 3.81/90LFI
