BLF 3.50/08/180F SN BK BX

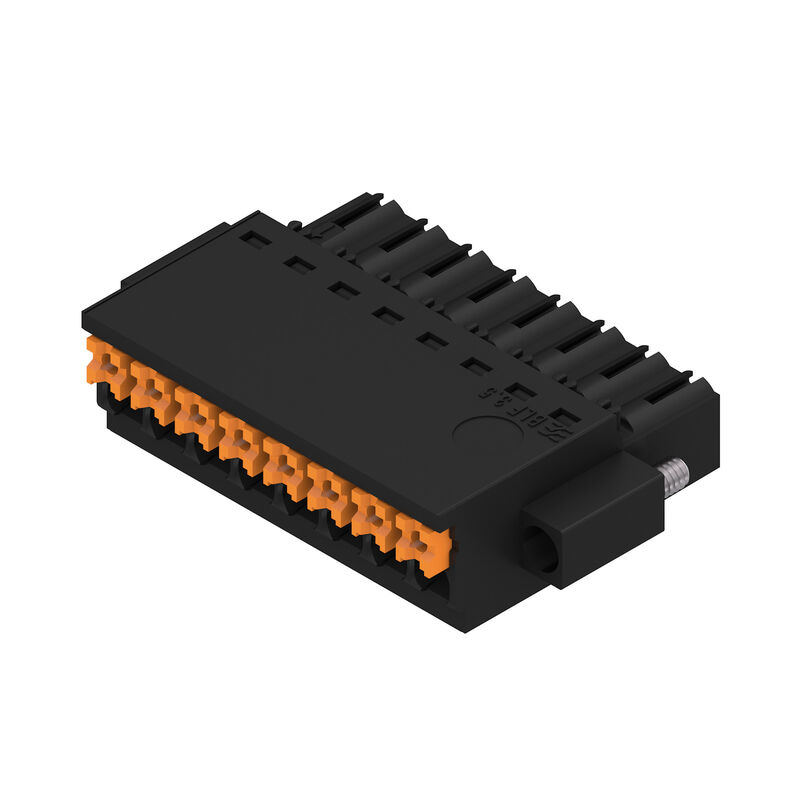

Product image
simillar to illustration
BLF 3.50/08/180F SN BK BX

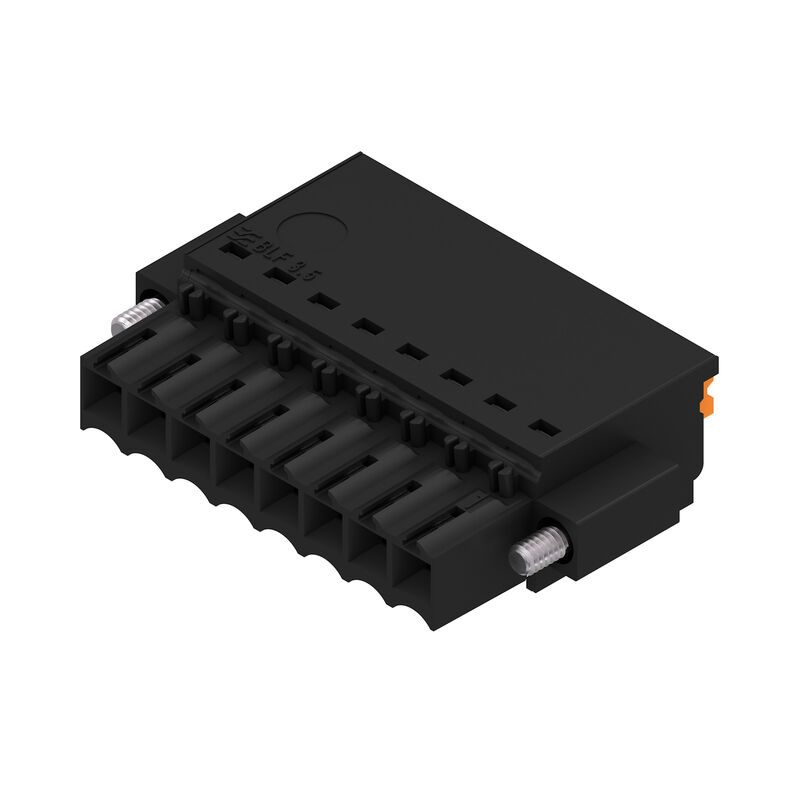

Product image
BLF 3.50/08/180F SN BK BX

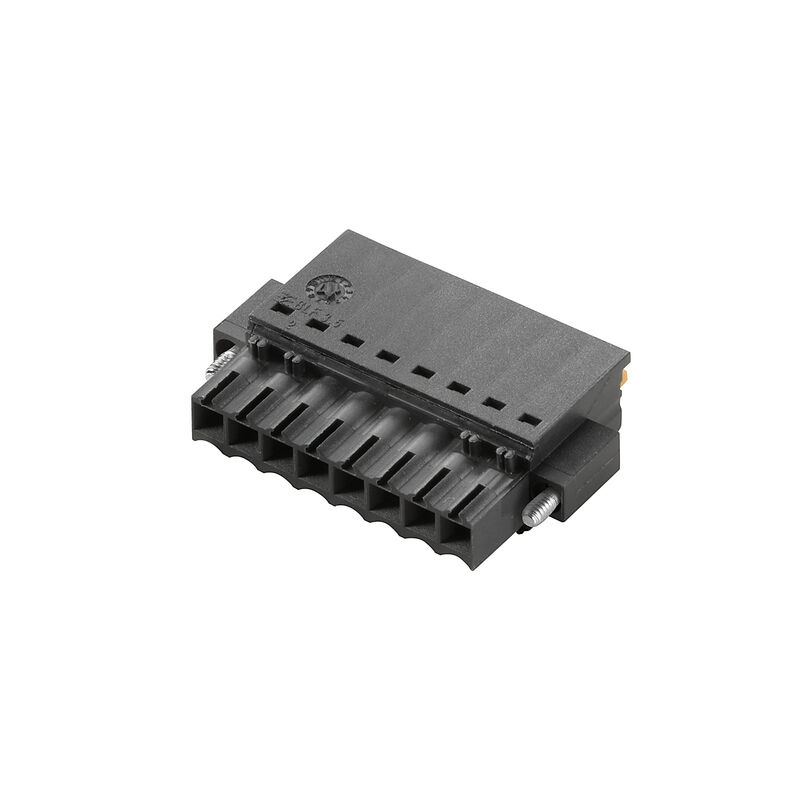

Product image
BLF 3.50/08/180F SN BK BX
Dimensional drawing
BLF 3.50/08/180F SN BK BX
Derating curve
BLF 3.50/08/180F SN BK BX
Derating curve
BLF 3.50/08/180F SN BK BX
Product benefits
Solid PUSH IN contact
Safe and durable

BLF 3.50/08/180F SN BK BX

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 8, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box

Product ID 2459630000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Contradelen 11 Verwante producten 36
Osvědčení Datos generales para pedido Dimensions and weights Conformidad medioambiental del producto Parametry systemu Werkstoffdaten Vodiče vhodné k připojení Jmenovité údaje podle IEC Rated data acc. to CSA Rated data acc. to UL 1059 Verpackungen Type tests Important note Classifications

Osvědčení

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cURus)
E60693

Datos generales para pedido

Version
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 8, 180°, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Box
Order No.
2459630000
Type
BLF 3.50/08/180F SN BK BX
GTIN (EAN)
4050118475043
Qty.
48 items
Product data
IEC: 320 V / 17.5 A / 0.14 - 1.5 mm²
UL: 300 V / 10 A / AWG 26 - AWG 16
Packaging
Box

Dimensions and weights

Depth
22,7 mm
Hloubka (v palcích)
0,894 inch
Height
9 mm
Height (inches)
0,354 inch
Width
35 mm
Width (inches)
1,378 inch
Net weight
6,1 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,257 kg CO2 eq.

Parametry systemu

제품군
OMNIMATE Signal - seria BL/SL 3.50
결선 유형
Field connection
Wire connection method
PUSH IN with actuator
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Conductor outlet direction
180°
극 수
8
L1 in mm
24,5 mm
L1(인치)
0,965 "
Antal rader
1
Pin series quantity
1
Rated cross-section
1,5 mm²
Ochrana bezpečná proti dotyku dle normy DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Volume resistance
≤5 mΩ
Codificabile
Yes
Délka odizolování
8 mm
Stripping length tolerance
  • min.:
    0 mm
  • max.:
    1 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264-A
Plugging cycles
25
Plugging force/pole, max.
6 N
Pulling force/pole, max.
6 N
Tightening torque
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0,15 Nm
      • max.:
        0,2 Nm

Werkstoffdaten

Insulating material
PA GF
Colour
black
Barva provozních prvků
orange
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 400
≤ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Vodiče vhodné k připojení

Clamping range, min.
0,14 mm²
Clamping range, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Solid, min. H05(07) V-U
0,14 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,14 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,28 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
s vodičem a dutinkou, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1 mm²
Zasuňte měřič v souladu s EN 60999 a x b; ø
2.4 mm x 1.5 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0690700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9021040000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0463000000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Jmenovité údaje podle IEC

testováno podle normy
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
14,7 A
Rated current, min. number of poles (Tu=40°C)
17,1 A
Rated current, max. number of poles (Tu=40°C)
13,1 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
1 x 1s with 120 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 16
Wire cross-section, AWG, max.
AWG 26

Rated data acc. to UL 1059

협회(cURus)
CURUS
N° certificato (cURus)
E60693
정격 전압(사용 그룹 B / UL 1059)
300 V
Märkspänning (användargrupp C / UL 1059)
50 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Sezione di collegamento cavo AWG, max.
AWG 16
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Verpackungen

Packaging
Box
VPE length
349 mm
VPE width
136 mm
VPE height
31 mm

Type tests

Visual and dimensional test
  • 표준:
    IEC 60512-1-1:2002-02
  • Test:
    kontrola wymiarowa
  • Ocena:
    sprawdzony
  • Standard:
    IEC 60512-1-2:2002-02
  • Test:
    kontrola masy
  • Ocena:
    sprawdzony
  • Standard:
    IEC 61984:2001-10 rozdział 6.2
  • Test:
    kontrola wzrokowa
  • Ocena:
    sprawdzony
Test: Durability of markings
  • Standard:
    IEC 60068-2-70:1995-12 test Xb
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking CSA
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    IEC 60512-13-5:2006-02
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    IEC 60999-1:1999-11 section 9.1, IEC 60947-1:2011-03 section 8.2.4.5.1
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    IEC 60999-1:1999-11 section 9.4 bzw. section 8.10
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    IEC 60999-1:1999-11 section 9.5
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
