BLZP 5.00HC/07/180LR SN OR BX

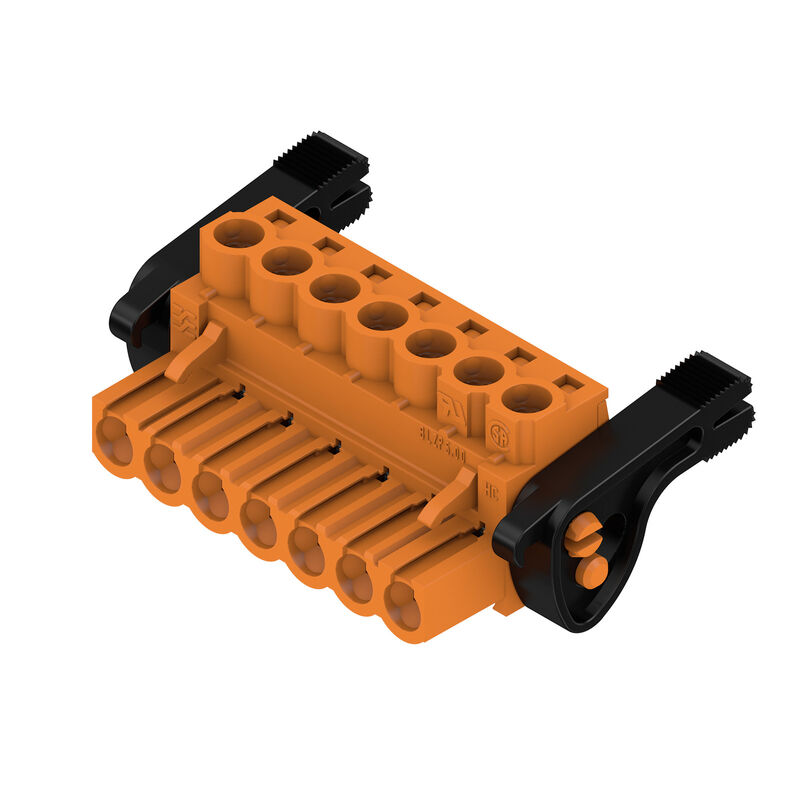

Obrázek výrobku
BLZP 5.00HC/07/180LR SN OR BX

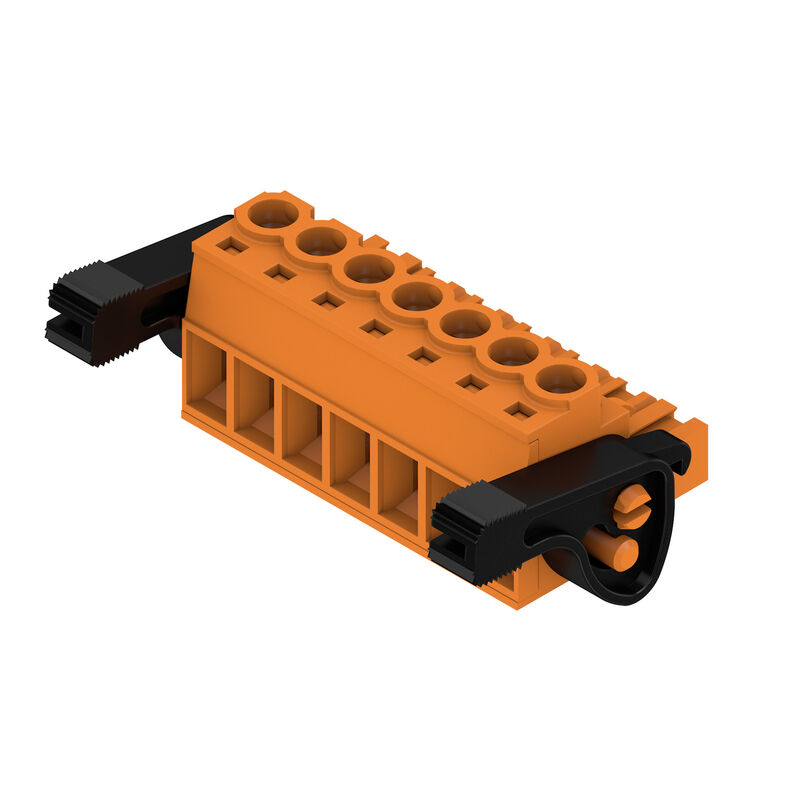

Obrázek výrobku
BLZP 5.00HC/07/180LR SN OR BX
Dimensional drawing
BLZP 5.00HC/07/180LR SN OR BX
Graph
Self-locking
Immediately on plugging in
BLZP 5.00HC/07/180LR SN OR BX
Výhoda produktu
Self-locking
Immediately on plugging in
BLZP 5.00HC/07/180LR SN OR BX
Výhoda produktu
Gentle unlocking
Low mechanical stress

BLZP 5.00HC/07/180LR SN OR BX

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 7, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Produkt ID 1956320000
Download datablad Engineering-support Produktdownloads
Tilbehør 6 Modstykker 2 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 7, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Best.-Nr.
1956320000
Type
BLZP 5.00HC/07/180LR SN OR BX
GTIN (EAN)
4032248635023
Cantidad
36 Styk
Product data
IEC: 400 V / 23 A / 0.2 - 4 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Depth
29,6 mm
Depth (inches)
1,165 inch
Höhe
16,9 mm
Height (inches)
0,665 inch
Width
44,8 mm
Width (inches)
1,764 inch
Nettogewicht
13,2 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,264 kg CO2 eq.

System Parameters

Skupina produktů
OMNIMATE Signal - series BL/SL 5.00
Typ připojení
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Conductor outlet direction
180°
Počet pólů
7
L1 v mm
30 mm
L1 v palcích
1,182 "
Number of rows
1
Množství řady kolíků
1
Jmenovitý průřez
4 mm²
Protezione da contatto accidentale DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Může být kódováno
Yes
Csupaszolási hossz
7 mm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
PH 1
PZ 1
Screwdriver blade standard
DIN 5264
ISO 8764/2-PH
ISO 8764/2-PZ
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
9 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Material data

Insulating material
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
Insulation resistance
≥ 10<sup>8</sup> Ω
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0,13 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG, min.
AWG 30
Leiteranschlussquerschnitt AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
4 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
4 mm²
mit AEH mit Kragen DIN 46 228/4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
4 mm²
Jauge à bouchon selon EN 60999 a x b ; ø
2.8 mm x 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
23 A
Rated current, max. number of poles (Tu=20°C)
18 A
Rated current, min. number of poles (Tu=40°C)
21 A
Rated current, max. number of poles (Tu=40°C)
16 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group D / CSA)
20 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Č. osvědčení (cURus)
E60693
Jmenovité napětí (aplikační skupina B / UL 1059)
300 V
Jmenovité napětí (aplikační skupina D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Průřez vodiče, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
348 mm
VPE width
137 mm
VPE height
31 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hinweise
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
