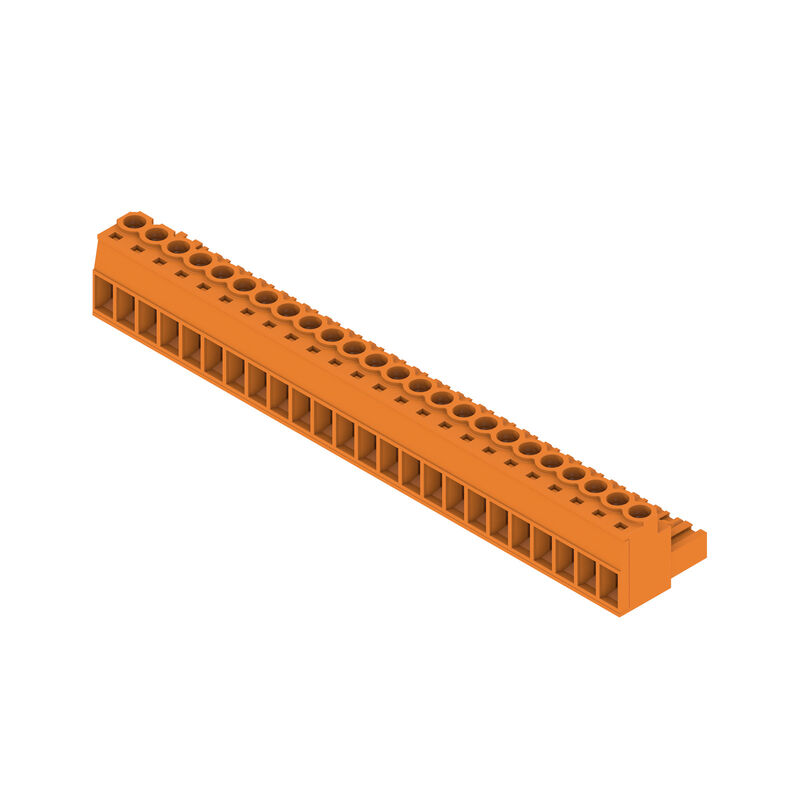

BLZP 5.00HC/24/180 SN OR BX
Product image
Similar to illustration
BLZP 5.00HC/24/180 SN OR BX
Product image
BLZP 5.00HC/24/180 SN OR BX
Dimensional drawing
BLZP 5.00HC/24/180 SN OR BX
Dimensional drawing
BLZP 5.00HC/24/180 SN OR BX
Graph
Self-locking
Immediately on plugging in

BLZP 5.00HC/24/180 SN OR BX

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 24, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Product ID 1954260000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Contradelen 12 Verwante producten 41
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Homologaciones
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Versión
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 24, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Código
1954260000
Tipo
BLZP 5.00HC/24/180 SN OR BX
GTIN (EAN)
4032248632985
Кол.
12 items
Product data
IEC: 400 V / 23 A / 0.2 - 4 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Profundidad
20,1 mm
Глубина (дюймов)
0,791 inch
Altura
16 mm
Height (inches)
0,63 inch
Anchura
120 mm
Width (inches)
4,724 inch
Nettó tömeg
39,35 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,537 kg CO2 eq.

System Parameters

Product family
OMNIMATE Signal - series BL/SL 5.00
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
5 mm
Rozteč v palcích (P)
0,197 "
Směr výstupu vodiče
180°
Number of poles
24
L1 in mm
115 mm
L1 in inches
4,531 "
Number of rows
1
Pin series quantity
1
Rated cross-section
4 mm²
Touch-safe protection acc. to DIN VDE 57 106
sicurezza per le dita
Touch-safe protection acc. to DIN VDE 0470
IP 20 innestato / IP 10 non innestato
보호 등급
IP20
Volume resistance
≤5 mΩ
Can be coded
Tak
Stripping length
7 mm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
PH 1
PZ 1
Screwdriver blade standard
DIN 5264
ISO 8764/2-PH
ISO 8764/2-PZ
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
9 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Material data

Materiale isolante
PBT
Colori
orange
Tabella dei colori (simile)
RAL 2000
절연재 그룹
IIIa
CTI(Comparative Tracking Index, 비교 추적 지수)
≥ 200
Resistenza d'isolamento
≥ 108 Ω
UL 94 flammability rating
V-0
Materiale dei contatti
Lega in rame
接触表面
cynowana
Struttura a strati del connettore maschio
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Campo di sezioni, min.
0,13 mm²
4 mm²
결선 단면규격 AWG, 최소
AWG 30
Wire connection cross section AWG, max.
AWG 12
단선, 최소 H05(07) V-U
0,2 mm²
rigido, max. H05(07) V-U
4 mm²
Wielodrutowe, min. H07V-R
0,2 mm²
Stranded, max. H07V-R
4 mm²
연선, 최소 H05(07) V-K
0,2 mm²
연선, 최대 H05(07) V-K
4 mm²
műanyag galléros érvéghüvellyel, DIN 46228 pt 4, min.
0,2 mm²
プラスチックカラー付フェルール　DIN 46228 pt 4、最大
2,5 mm²
와이어 엔드 페룰 포함, DIN 46228 pt 1, 최소
0,2 mm²
con terminale a norma DIN 46 228/1, max.
2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2,8 mm x 2,4 mm
Зажимаемый проводник
  • Сечение подсоединяемого провода:
    • Typ:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
Testo di riferimento
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
정격 전류, 극 수(Tu=20°C)
23 A
정격 전류, 최대 극 수(Tu=20°C)
18 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
21 A
정격 전류, 최대 극 수(Tu=40°C)
16 A
서지 전압 클래스 정격 전압 / 오염 등급 II/2
400 V
서지 전압 클래스 정격 전압 / 오염 등급 III/2
320 V
서지 전압 클래스 정격 전압 / 오염 등급 III/3
250 V
サージ電圧等級の定格インパルス電圧/汚染度 II/2
4 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/2
4 kV
サージ電圧等級の定格インパルス電圧/汚染度 III/3
4 kV
Portata transitoria
3 x 1s z 120 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
300 V
Jmenovitý proud (aplikační skupina B / CSA)
20 A
Rated current (Use group D / CSA)
20 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
348 mm
VPE width
136 mm
VPE height
30 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notas
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
