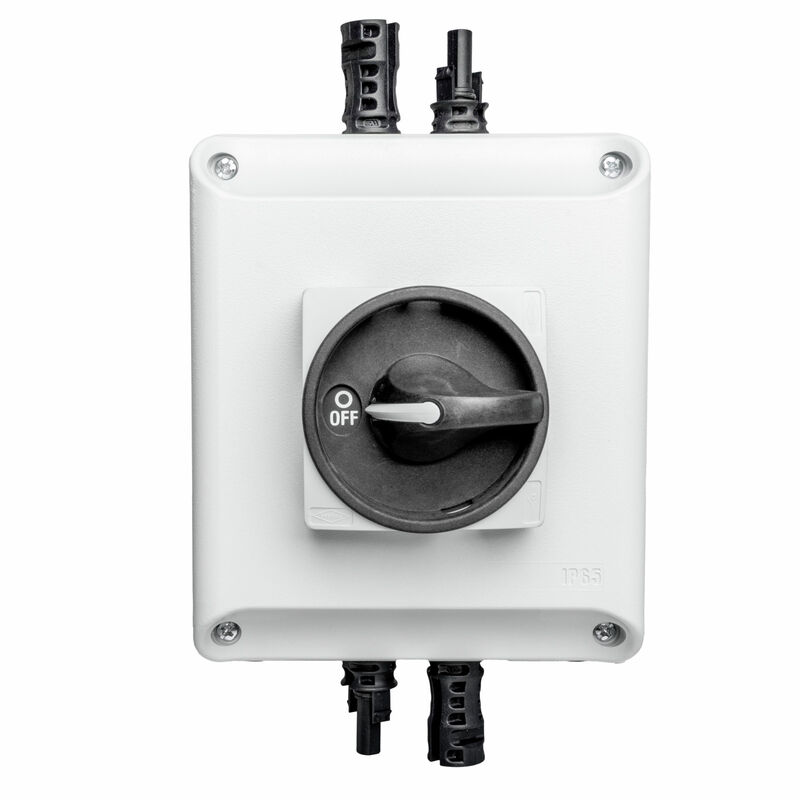

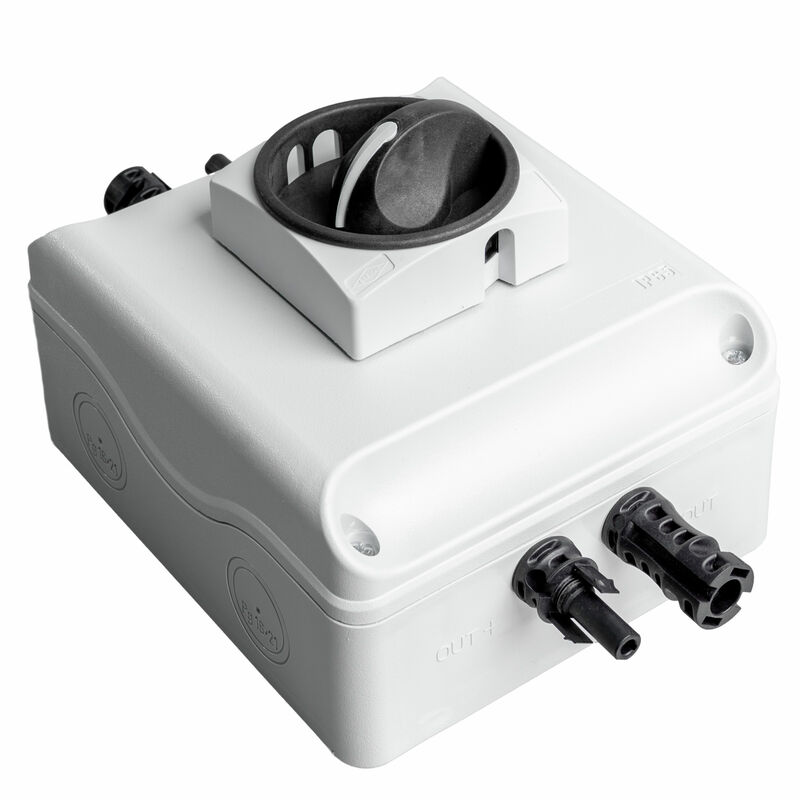

Load break switch in polyester housing.
Suitable for switching off the DC side.

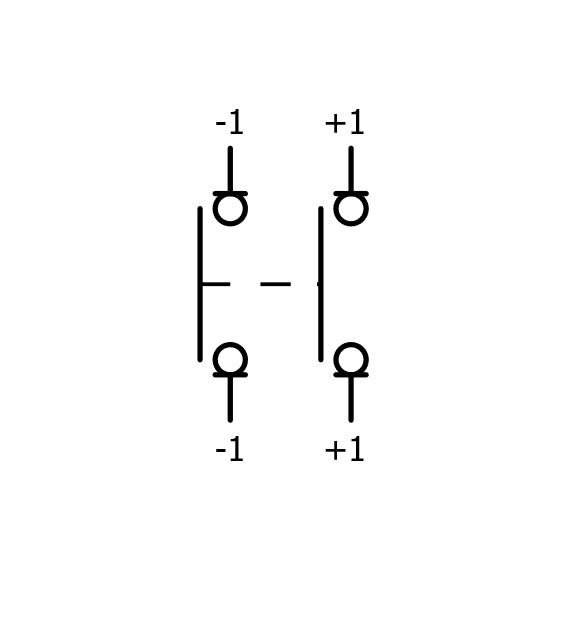

Number of poles: 2
Operating current, rated value (Ie):
- according to IEC (PV1, 1000 V): 50 A
- according to IEC (PV1, 1500 V): 20 A
- according to IEC (PV2, 1000 V): 20 A
- according to IEC (PV2, 1500 V): 8 A
Rated insulation voltage (Ui):
- according to IEC: 1500 V
Suitability for use:
Main switch: Yes
Number of contacts normally open: 2
Number of contacts normally closed: 0
Number of switching positions: 2

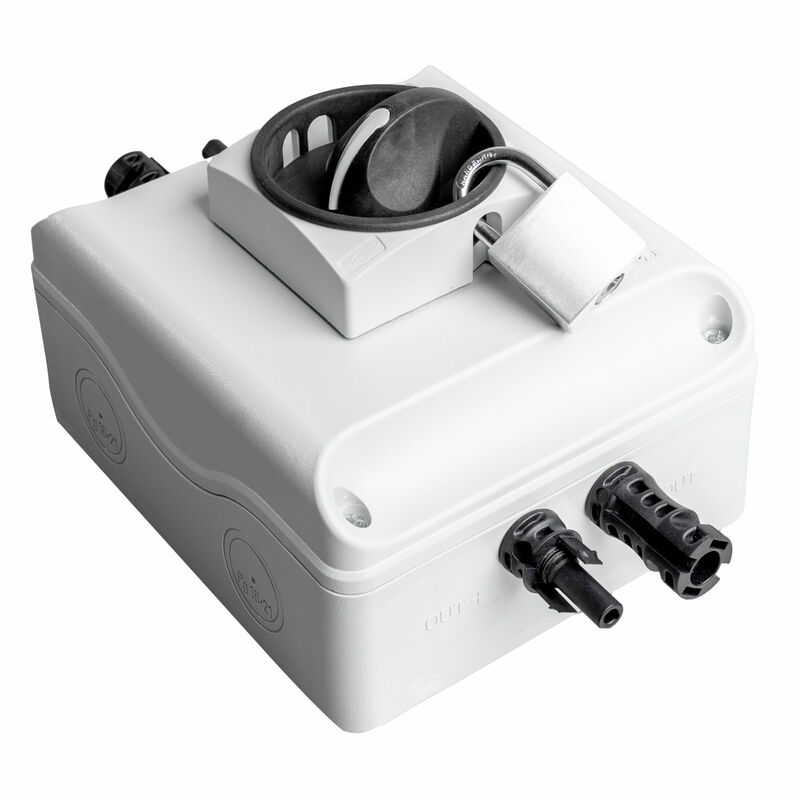

Lockable: Yes
The switch is mounted using 4 screws.
Protection class (IP): 65

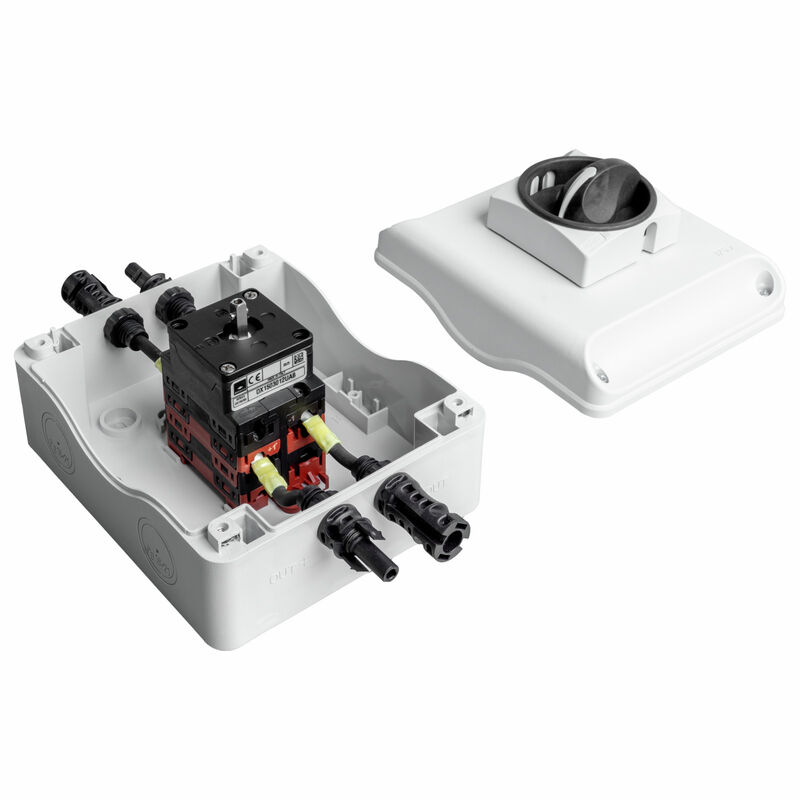

Polyester housing with connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
Dimensions HxWxD: 235x140x121.5 mm.
Approval according to low voltage switchgear and controlgear IEC 60947-3, DIN VDE 0660 Part 107 (EN 60947-3)
