FC10 PN/12A S1 B BX
Product image
FC10 PN/12A S1 B BX
FC10 PN/12A S1 B BX
FC10 PN/12A S1 B BX

FC10 PN/12A S1 B BX

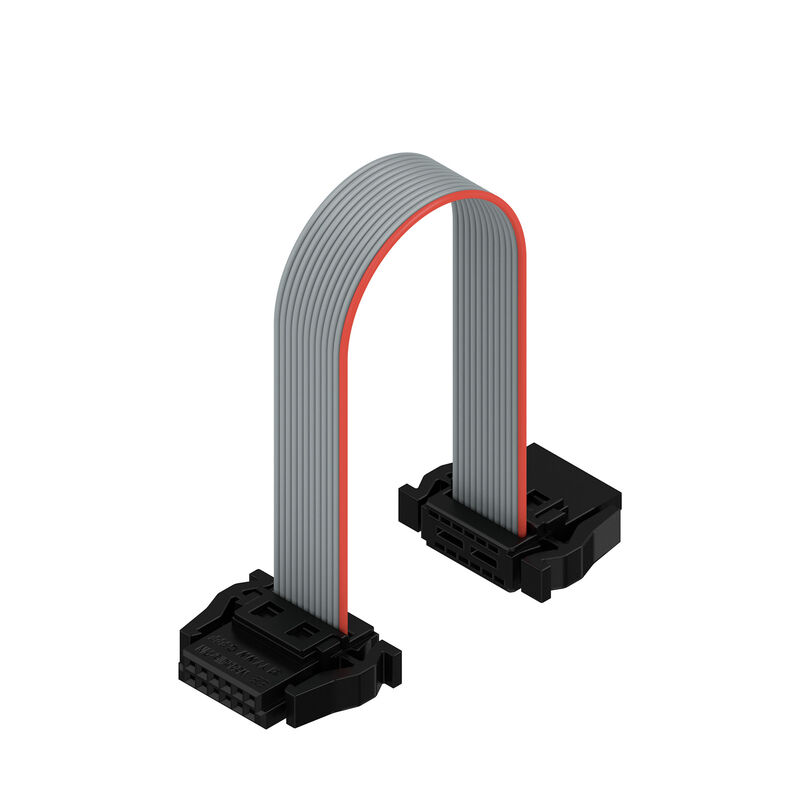

PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 12, Box

Tuotteen tunnus 2826880000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Märkdata enligt IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Versión
PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 12, Box
Código
2826880000
Tipo
FC10 PN/12A S1 B BX
GTIN (EAN)
4064675363484
수량
10 items
Product data
IEC: / 1.9 A
UL:
Packaging
Box

Dimensions and weights

Longitud
12,2 mm
Length (inches)
0,48 inch
Net weight
3,37 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - Board-to-Board
Type of connection
Insulation displacement connection (IDC)
Técnica de conexión de conductores
IDC terminal
Cable length
100 mm
Paso en mm (P)
1,27 mm
Pitch in inches (P)
0,05 "
도체 아웃렛 방향
90°/270°
Number of poles
12
Number of rows
2
Pin series quantity
2
Protection degree
IP20
Rezystancja skrośna
<25 mΩ
Plugging cycles
500
Plugging force/pole, max.
0,6 N
Pulling force/pole, max.
0,6 N

Material data

Matériau isolant
LCP
컬러 코드
grey
컬러 차트(유사)
RAL 7035
절연 저항
≥ 20 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Cu-alloy
Powierzchnia styku
Ni/Au
Layer structure of plug contact
≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−20 °C
Operating temperature, max.
105 °C

Conductors suitable for connection

Section de raccordement du conducteur, AWG, min.
AWG 30/1, 30/7
Section de raccordement du conducteur, AWG, max.
AWG 30/1, 30/7

Märkdata enligt IEC

Courant nominal, nombre de pôles min. (Tu = 20 °C)
1,9 A
정격 전류, 최대 극 수(Tu=40°C)
1,65 A
Distanza superficiale, min.
0,4 mm
Espace libre, min.
0,4 mm

Packing

Packaging
Box
VPE length
119 mm
VPE width
97 mm
Altura de VPE
19 mm

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
