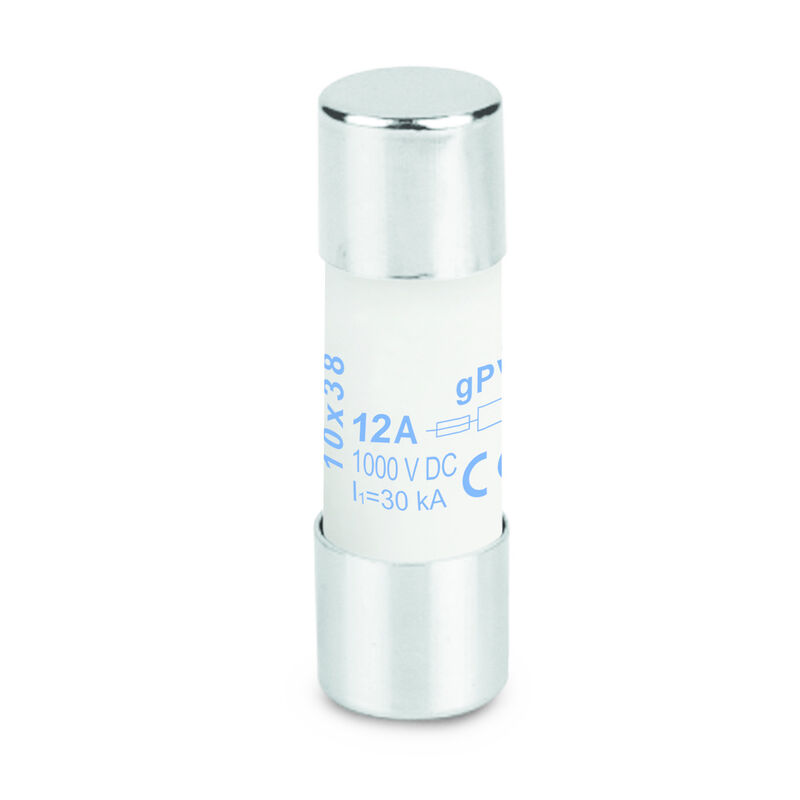

FUSE 10X38 12A 1000 VDC GPV
Similar to illustration
FUSE 10X38 12A 1000 VDC GPV
FUSE 10X38 12A 1000 VDC GPV
Graph
T-I characteristic curve

FUSE 10X38 12A 1000 VDC GPV

Fotovoltaico, Inserto fusibile, 1000 V, 10x38, gPV, 12 A

Produkt ID 2783240000
Download datablad Produktdownloads
Tilbehør 12 Er tilbehør til 18 Enkeltdel til 4 Anvendte produkter 13
Homologaciones Dati generali per l’ordinazione Dimensions and weights Temperature Conformità ambientale del prodotto Élément fusible Klassificeringar

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

Dati generali per l’ordinazione

Version
Fotovoltaico, Inserto fusibile, 1000 V, 10x38, gPV, 12 A
Order No.
2783240000
Type
FUSE 10X38 12A 1000 VDC GPV
GTIN (EAN)
4064675059967
Qty.
10 Styk

Dimensions and weights

Depth
10 mm
깊이 (인치)
0,394 inch
Height
38 mm
Bygghöjd (tum)
1,496 inch
Width
10 mm
Width (inches)
0,394 inch
Diameter
10,3 mm
Net weight
1 g

Temperature

Storage temperature
-40°C ... 90°C
Operating temperature range
-40...80 ℃

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Élément fusible

Fuse-link standard
IEC 60269-1
gPV (EN 60269-6)
Current
12 A
Rated DC voltage
1.000 V
Rated breaking capacity
30 kA
Material of contacts
silver-plated
Power dissapation, max.
2,4 W

Klassificeringar

ETIM 8.0
EC002704
ETIM 9.0
EC002704
ETIM 10.0
EC002704
ECLASS 14.0
27-14-20-02
ECLASS 15.0
27-14-20-02
