H0,34/10 TK SV

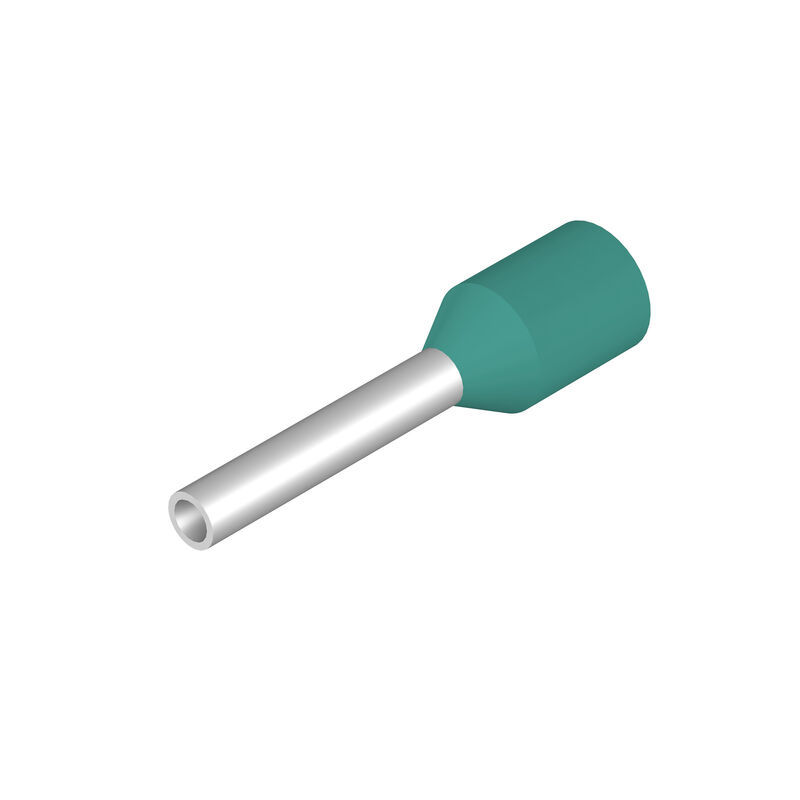

Wire-end ferrule, Standard, 8 mm, 6 mm, Turquoise

Ürün No. 9026030000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 7 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Wire-end ferrules Classifications

Approvals

ROHS
Conform

General ordering data

Version
Wire-end ferrule, Standard, 8 mm, 6 mm, Turquoise
Order No.
9026030000
Type
H0,34/10 TK SV
GTIN (EAN)
4008190177171
Qty.
500 adet
Packaging
Multipack bag

Dimensions and weights

Net weight
0,054 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Wire end ferrule with plastic collar, turquoise
Version
Standard

Wire-end ferrules

Contact surface diameter (D1)
0,8 mm
Csupaszolási hossz
8 mm
Diámetro del aislamiento (D2)
2 mm
Epaisseur des douilles métalliques (S1)
0,15 mm
Kontaktflächenlänge (L2)
6 mm
L1 en mm
10 mm
Plastic collar thickness (S2)
0,25 mm
Section de raccordement du conducteur, AWG, max.
AWG 22
Sezione di collegamento cavo
0,34 mm²
컬러 코드
Weidmueller

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
