特性
| 版本 | 管状端头, 标准, 10 mm, 8 mm, 白色 |
| 订货号 | 9005820000 |

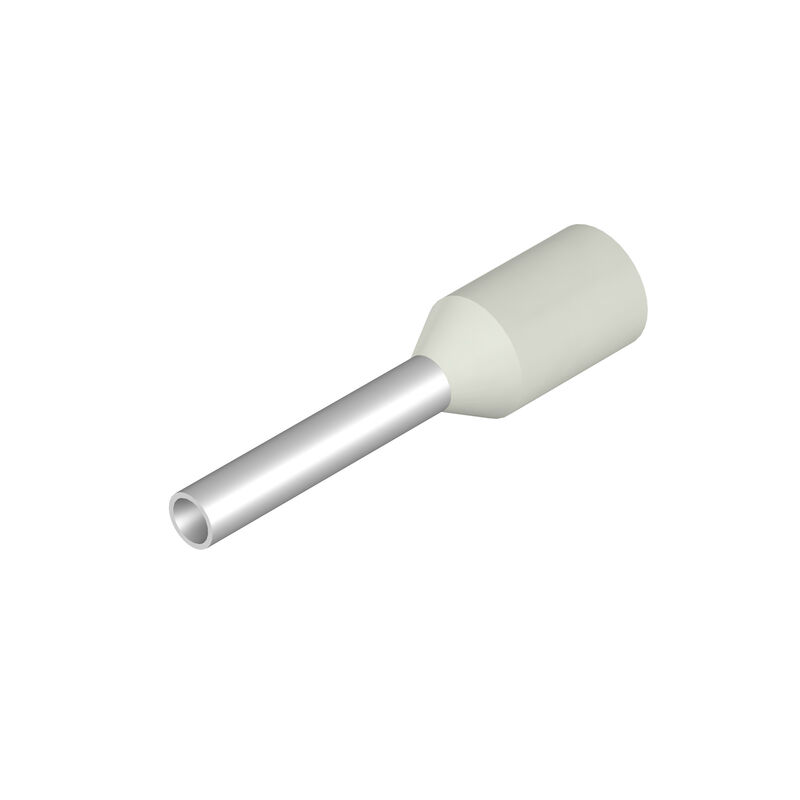

| 类型 | H0,75/14 W BD GSP |
| GTIN (EAN) | 4008190275884 |
| 数量 | 5,000 PC |
| 包装 | 卷式 |
| 净重 | 0.12 g |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | No SVHC above 0.1 wt% |
| 物品描述 | 成卷包装管状端头，白色 |
| 类型 | 标准 |
| L1（mm） | 14 mm |
| 剥线长度 | 10 mm |
| 塑料套厚度 (S2) | 0.25 mm |
| 导线压接面积 | 0.75 mm² |
| 导线最大压接面积 AWG | AWG 18 |
| 插针镀层直径 (D1) | 1.2 mm |
| 插针镀层长度 (L2) | 8 mm |
| 环直径(D2) | 2.8 mm |
| 金属管厚度(S1) | 0.15 mm |
| 颜色编码 | Weidmueller |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55320) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9005820000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9005820000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9005820000&norm=0) |
| 用户文档 |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| 认证 |   |
| ROHS | 一致 |
| UL File Number Search | [UL 网站](LINK/UL_search.html) |
| 证书号 (cULus) | E499744 |
是附件
工具压接工具... 用于管状端头Crimping tools
工具压接工具... 用于管状端头经认证的压接工具
