HDC 16B ABU EXI

HDC 16B ABU EXI

HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Bulkhead housing, Side-locking clamp not replaceable, Side-locking clamp on lower side, Standard

Produkt ID 3001320000
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Er tilbehør til 2 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Bulkhead housing, Side-locking clamp not replaceable, Side-locking clamp on lower side, Standard
Order No.
3001320000
Type
HDC 16B ABU EXI
GTIN (EAN)
4099986902404
Qty.
1 Styk

Dimensions and weights

Height
29,3 mm
Height (inches)
1,154 inch
Width
55 mm
Width (inches)
2,165 inch

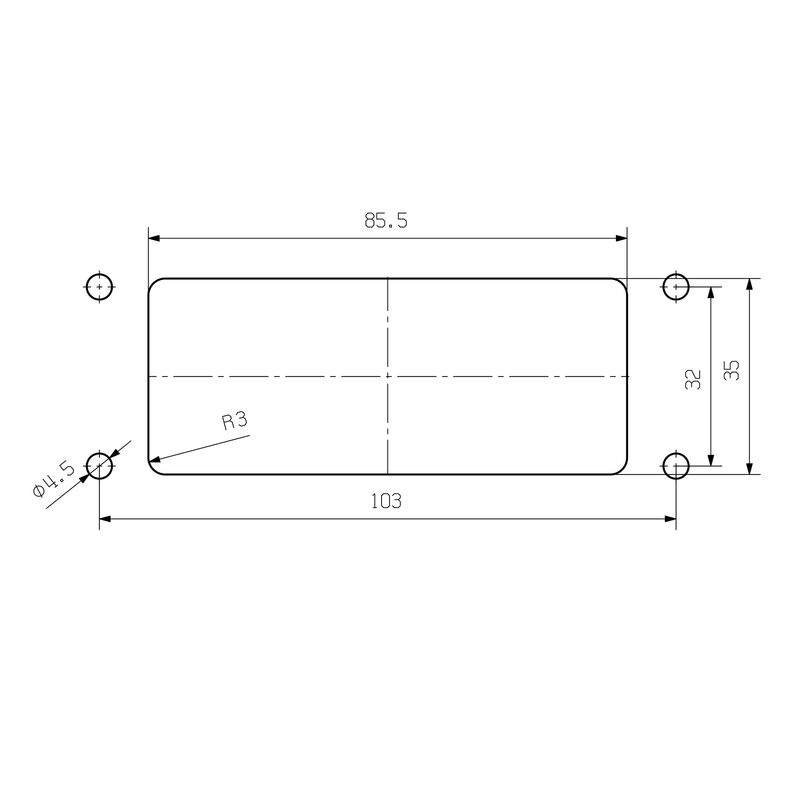

Mounting dimension - height
32 mm
Mounting dimension - width
103 mm
Net weight
159 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f

Dimensions

Cable entry
No
Height of base B1
5,3 mm
Height of housing B
29,5 mm
Hole pitch length A2
103 mm
Total length housing
93,3 mm
Width base C1
47 mm

General data

Protection degree
IP65
in plugged condition
Surface finish
Powder coating
UL 94 flammability rating
V-0
Explosion protection type
II 2G Ex ib IIC T6 Gb

Version

BG
6
Cover
without cover
Design of housing
Bulkhead housing
Forma
Standard
Färg (RAL)
RAL 7035
Número de entradas de cable en la parte lateral
0
Oberteil/Unterteil/Deckel
lower part
Počet kabelových průchodek
0
Rögzítőrendszer kivitele
Side-locking clamp not replaceable
Side-locking clamp on lower side
Suitable for ModuPlug®
Yes
Type
Bulkhead (feed-through)
Type of connection
PUSH IN
wersja pałąka
Side-locking clamp
Уплотнение
NBR
설치 사이즈
6
케이블 인입
No

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
