HDC 32B ALU
HDC 32B ALU
Dimensioned drawing

HDC 32B ALU

HDC enclosures, Installation size: 10, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, Standard

Produkt ID 1219500000
Download datablad Engineering Support Product Downloads
Tilbehør 4 Er tilbehør til 4 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version

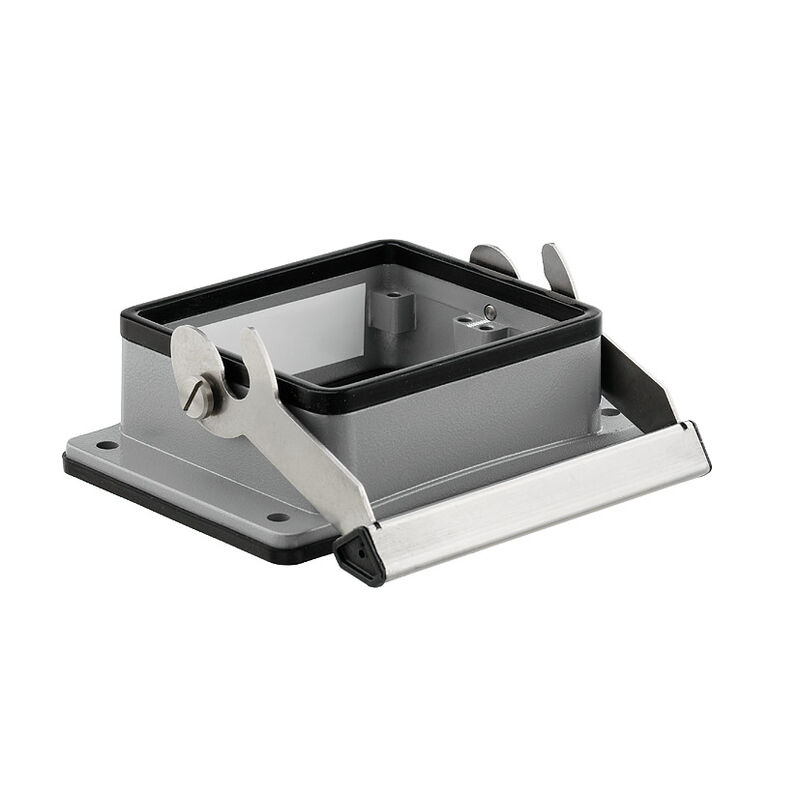

HDC enclosures, Installation size: 10, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, Standard
Order No.
1219500000
Type
HDC 32B ALU
GTIN (EAN)
4008190011826
Qty.
1 Styk

Dimensions and weights

Depth
126.6 mm
Depth (inches)
4.984 inch
Height
38 mm
Height (inches)
1.496 inch
Width
120 mm
Width (inches)
4.724 inch
Mounting dimension - height
65 mm
Mounting dimension - width
110 mm
Net weight
251 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensions

Cable entry
No
Height of base B1
7 mm
Height of housing B
38 mm
Hole pitch length A2
110 mm
Total length housing
94 mm
Width base C1
89 mm
Width housing C
82.5 mm

General data

EMC housings
No
Housing main material
diecast aluminium
Material of locking element
Stainless steel, rust-proof
Protection degree
IP65
in plugged condition
Surface finish
Powder coating
Tightening torque
2 Nm

Version

BG
10
Byggform
Standard
Cable entry
No
Clamp version
End-locking clamp
Colour (RAL)
RAL 7035
Design of housing
Bulkhead housing
Installation size
10
Number of cable entry sideways
0
Sealing
NBR
Suitable for ModuPlug®
Yes
Type
Bulkhead (feed-through)
Utförande låssystem
End-locking clamp, lower side
상단부/하단부/리드
lower part
조임 토크
2 Nm
커버
without cover
케이블 글랜드 수
0

Important note

Product information
When mounting the housings, make sure that the flat gasket is correctly seated.

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
