特性

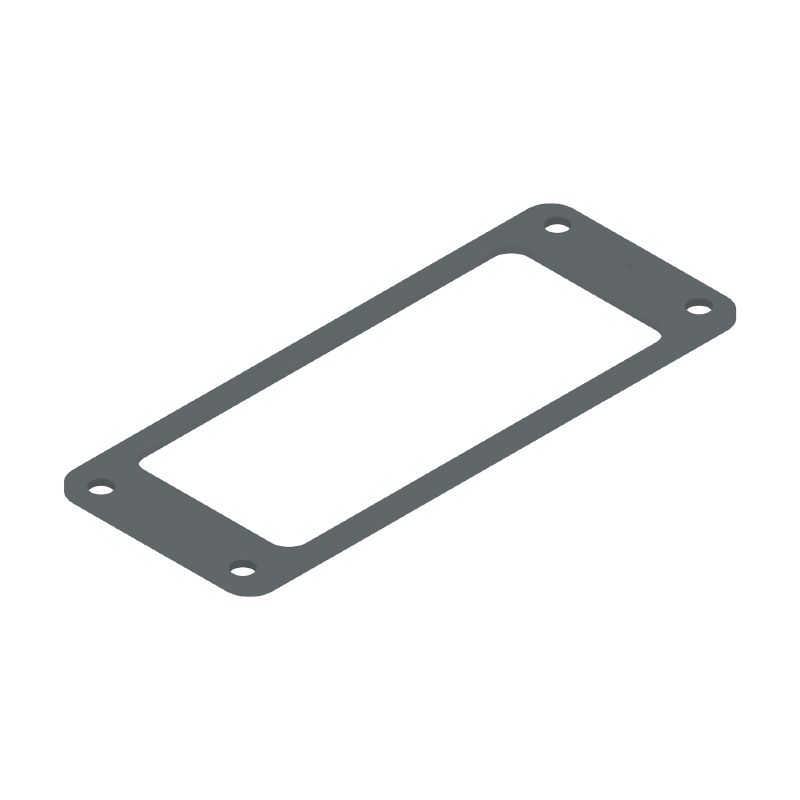

| 版本 | 附件, 扁平垫圈 |
| 订货号 | 1044530000 |
| 类型 | HDC FLDG 16B |
| GTIN (EAN) | 4032248776979 |
| 数量 | 5 PC |
| 净重 | 3.88 g |
| 温度限值 | -40 °C ... 120 °C |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | No SVHC above 0.1 wt% |
| BG | 6 |
| 产品外形尺寸 | 6 |
| 密封 | NBR |
| 颜色 (RAL) | RAL 7035 |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_244217) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1044530000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1044530000) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | 一致 |
是附件
-
商品编号:2488590000包装单位:1 PC
HDC - 外壳, 产品外形尺寸: 6, 防护等级: IP65 (接插后), 穿体式插座外壳, 侧面锁定，普通高度, 标准
插接件重载接插件外壳RockStar® IP65 / NEMA 型号 12, 4X 外壳尺寸 6 (16B/40D)侧面锁定，基准型底座穿体式插座外壳
