HDC HA 16 FP
HDC HA 16 FP
HDC HA 16 FP
HDC HA 16 FP

HDC HA 16 FP

, Female, 250 V, 16 A, Number of poles: 16, PUSH IN with actuator, Installation size: 5

Tuotteen tunnus 3124560000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 2 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Signal contact Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202
Certificate No. (cURus)
E310075

General ordering data

Version
, Female, 250 V, 16 A, Number of poles: 16, PUSH IN with actuator, Installation size: 5
Order No.
3124560000
Type
HDC HA 16 FP
GTIN (EAN)
4099987277594
Qty.
1 items

Dimensions and weights

Depth
14,6 mm
Depth (inches)
0,575 inch
Height
34 mm
Height (inches)
1,339 inch
Width
23 mm
Width (inches)
0,906 inch
Length
72 mm
Length (inches)
2,835 inch
Net weight
50 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

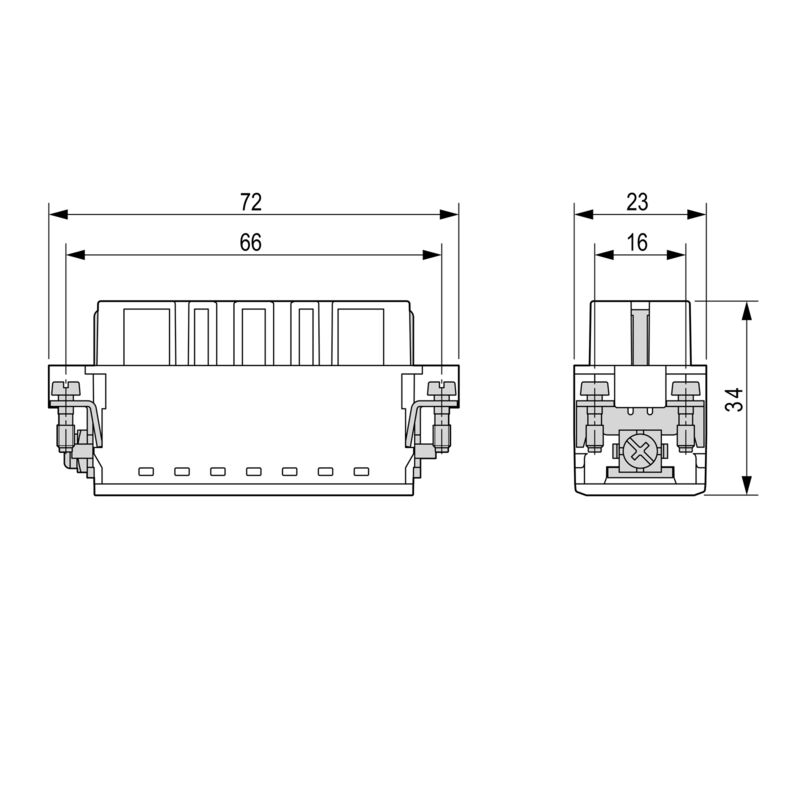

Dimensions

Alap teljes hossza
72 mm
Szélesség
23 mm

General data

Antal poler
16
Basic material
Polycarbonate
BG
5
Colour
Grigio chiaro
cykle wtykania Au
≥ 500
Dugaszolási ciklusok, ezüst
≥ 500
Installation size
5
Insulating material
PC
Number of power contacts
16
Number of signal contacts
0
Plugging cycles
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
4 kV
Rated voltage (DIN EN 61984)
250 V
Series
HA
Stickcykler Sn
≥ 500
Surge voltage category
III
Tightening torque, max. PE connection
1 Nm
Tightening torque, min. PE connection
0,5 Nm
Type
Female
Type of connection
PUSH IN with actuator
UL 94 flammability rating
V-0
Вид защиты
IP20

Connection data PE

Tightening torque, min. PE connection
0,5 Nm
Tipo di collegamento PE
PUSH IN connection
조임 토크, 최대 PE 결선
1 Nm

Power contact

Longitud de desaislamiento según el diámetro de cable
  • Stripping length:
    8 mm
Tightening torque, max. according to the conductor cross-section
  • Conductor cross-section, min.:
    0,14 mm²
  • Conductor cross-section, max.:
    2,5 mm²
  • Tightening torque, max.:
    1 Nm

Signal contact

udarowe napięcie znamionowe (DIN EN 61984) zestyk mocy
4 kV

Version

Basic material
Polycarbonate
Baugröße
5
BG
5
Conductor cross-section, max.
0,14 mm²
Conductor cross-section, min.
2,5 mm²
Stripping length, rated connection
8 mm
Type of connection
PUSH IN with actuator
Wire connection cross section AWG, max.
AWG 26
Wire connection cross section AWG, min.
AWG 14

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
