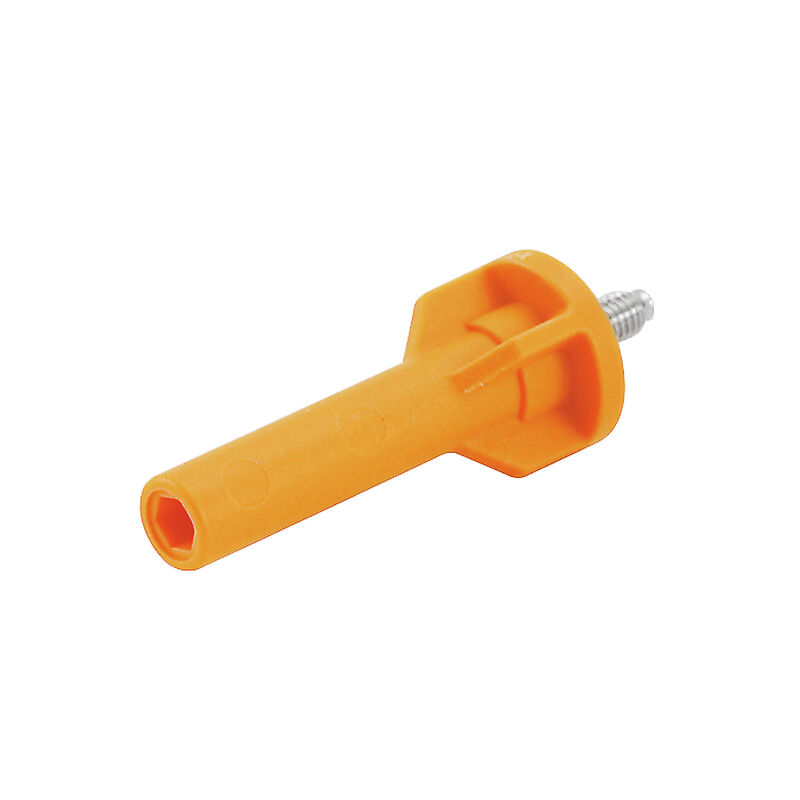

HDC HP 250 SHOCKPROTEC
HDC HP 250 SHOCKPROTEC

HDC HP 250 SHOCKPROTEC

Accessories, Screw connection, Size: 250

Ürün No. 1120130000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance General data General data Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Accessories, Screw connection, Size: 250
Order No.
1120130000
Type
HDC HP 250 SHOCKPROTEC
GTIN (EAN)
4032248901487
Qty.
1  adet

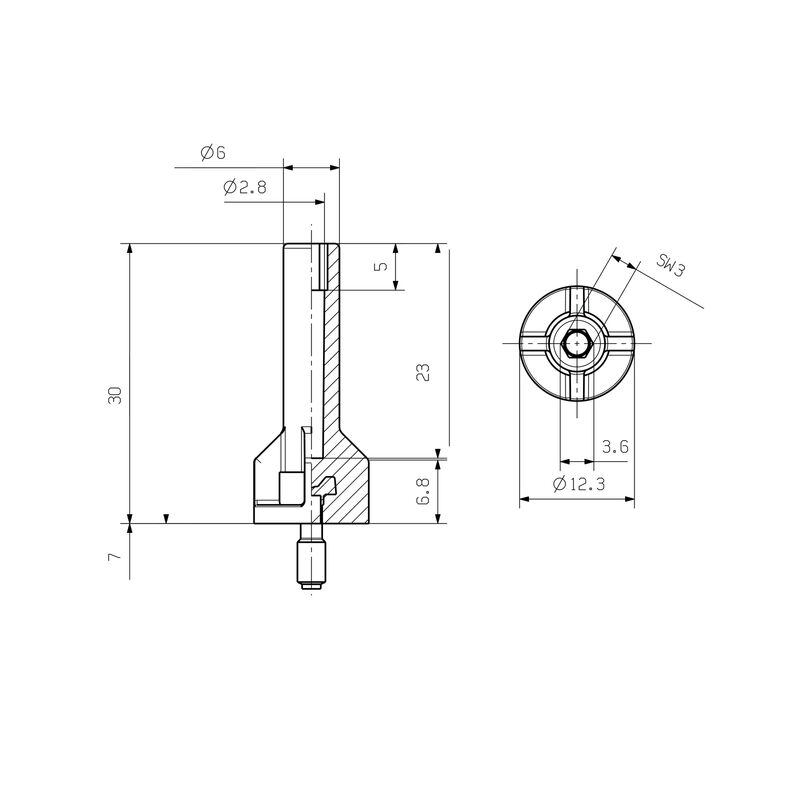

Dimensions and weights

Length
37  mm
Length (inches)
1,457  inch
Diameter
12,3  mm
Net weight
2  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

BG
250
Colour
black
Insulating material
Polyamide with fibre optic
Insulation strength
1010 Ω
Material
PA 66 GF 30
Stainless steel, rust-proof
Pollution severity
PD 2 (PD 3)
Series
HighPower
Size
250
Type of connection
Screw connection
UL 94 flammability rating
V-0

General data

Colour
black
Material
PA 66 GF 30
Stainless steel, rust-proof
Series
HighPower
Type of connection
Screw connection

Important note

Product information
Depending on the intended operation, internally generated voltages can superimpose the working voltage and contain corresponding peaks. It is imperative to ensure that these peak voltages do not exceed the rated voltage. For applications outside of this specification, please contact us.

Classifications

ETIM 6.0
EC002943
ETIM 7.0
EC002943
ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 9.0
27-44-02-92
ECLASS 9.1
27-44-01-92
ECLASS 10.0
27-44-02-92
ECLASS 11.0
27-44-02-92
ECLASS 12.0
27-44-02-92
ECLASS 13.0
27-44-02-92
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
