特性
| 版本 | 重载接插件, 附件, 编码系统 |
| 订货号 | 1003230000 |

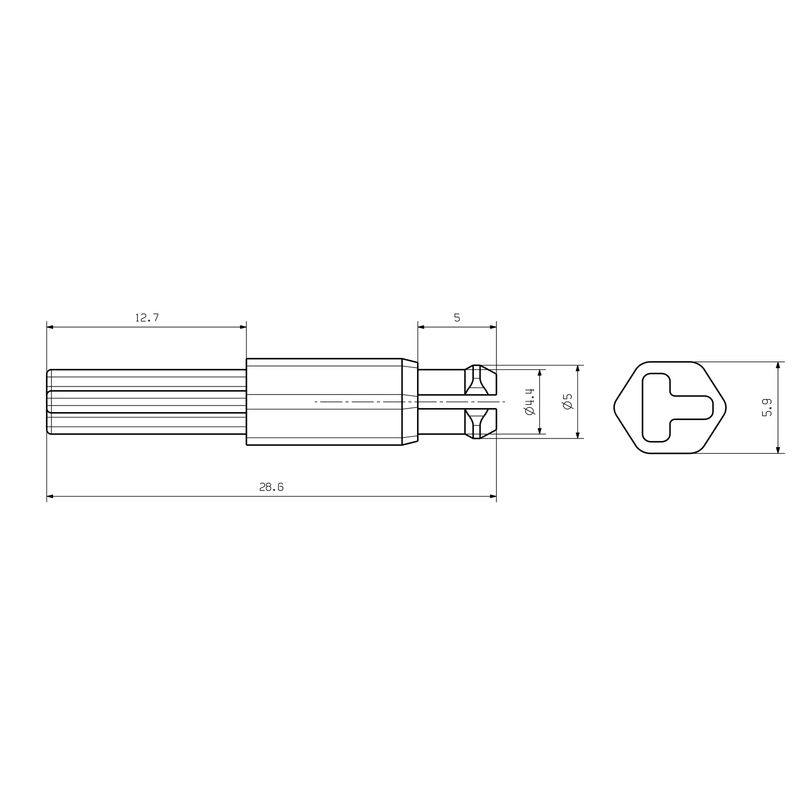

| 类型 | HDC HQ 7 CPM |
| GTIN (EAN) | 4032248698226 |
| 数量 | 50 PC |
| 净重 | 0.52 g |
| RoHS 合规状态 | 合规，无例外 |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 1609748e-c278-4c9b-b3d1-e6215d2988cd |
| 认证/证书/一致性声明 | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| 工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_94016) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1003230000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1003230000) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002311 |
| ETIM 7.0 | EC002311 |
| ETIM 8.0 | EC002311 |
| ETIM 9.0 | EC002311 |
| ECLASS 9.0 | 27-44-02-03 |
| ECLASS 9.1 | 27-44-02-03 |
| ECLASS 10.0 | 27-44-02-03 |
| ECLASS 11.0 | 27-44-02-03 |
| ECLASS 12.0 | 27-44-02-03 |
| ECLASS 13.0 | 27-44-02-03 |
| ECLASS 14.0 | 27-44-02-03 |
| ROHS | 一致 |
是附件
插接件重载接插件插芯固定回路插芯HQ 系列 - 10A - 40A、250V - 690V、5 - 17 针冷压联接尺寸 17回路
